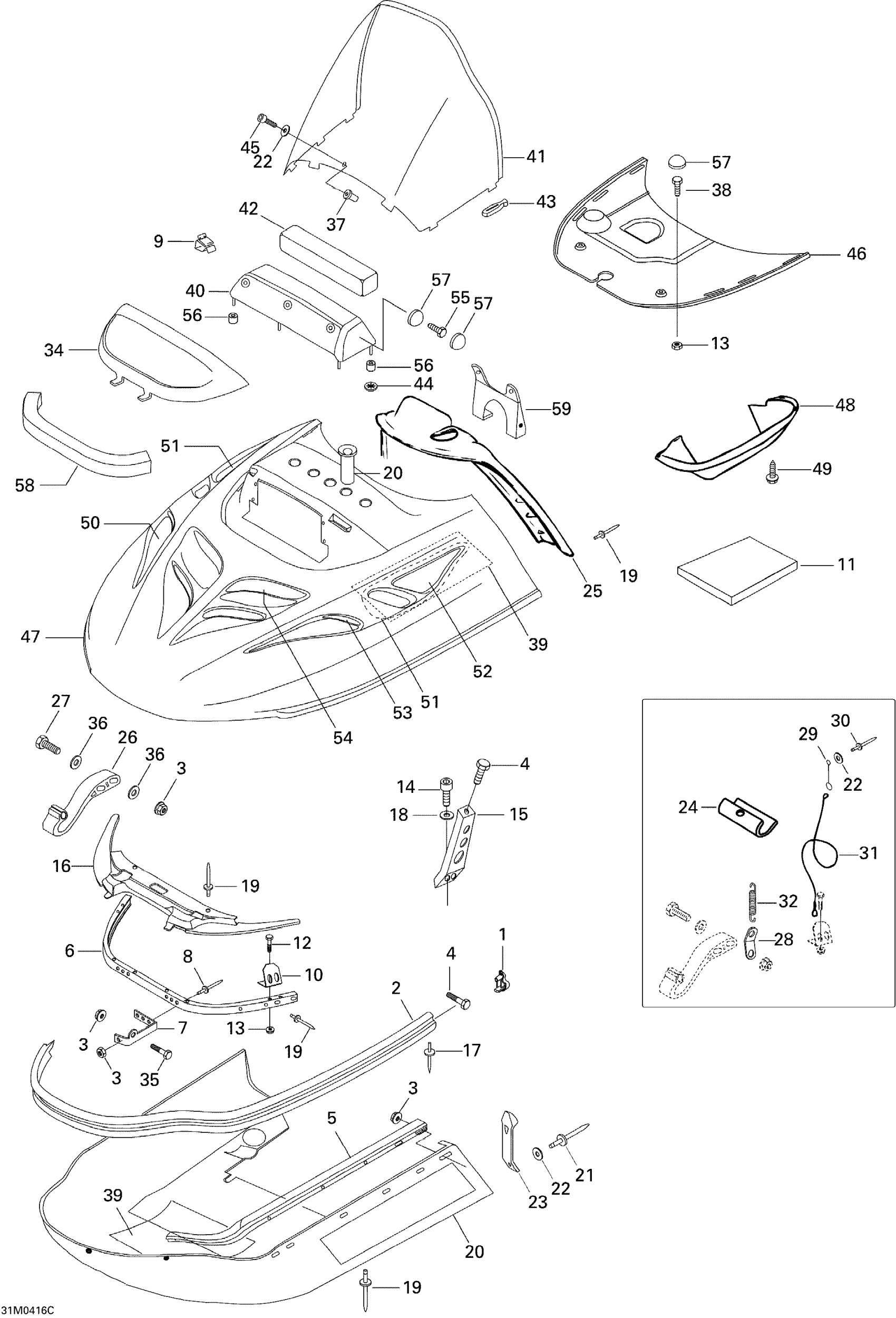

Ski-Doo Skandic WT/SWT 550F , 2004 09- Cab, Console Diagram

#

Description
Price

1

LH Cap

M549096L

Unavailable

1

RH Cap

M549096R

Unavailable

2

Front Bumper

M5242798

Unavailable

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Vis *Screw

M40078

Unavailable

5

RH Hood Guide

M5242804

Unavailable

5

LH Hood Guide

M5242803

Unavailable

6

SUPPORT-FRONT - Call your local BRP dealership | Includes 6 to 8 This part replaces M5246120.

5246120

$179.99

7

Hinge

M5342234

Unavailable

7

Hinge

M5342345

Unavailable

8

Rivet

36108

$1.90

9

Clip

414227300

$1.67

10

Hood Guide

M5443217

Unavailable

11

Acoustic Foam

414631900

Unavailable

12

Screw M5 X 16

M40247

Unavailable

13

NUT M5 - Call your local BRP dealership

M33062

Unavailable

14

SCREW - Call your local BRP dealership

M40332

Unavailable

15

SUPP.-BUMPER - Call your local BRP dealership

M5342509

Unavailable

16

COVER - Call your local BRP dealership

605252352

$109.99

17

RIVET - Call your local BRP dealership

M36097

Unavailable

18

Lock Washer M6, Black

234161471

$0.53

19

Black, Rivet

M36036

$1.69

19

Black, Rivet

M36036

$1.69

20

Bottom Pan | SWT 550

M5146314

Unavailable

20

Bottom Pan | WT 600

M5146366

Unavailable

20

Bottom Pan | WT 550

M5147812

Unavailable

21

Rivet This part replaces M36009.

36009

$1.15

21

Black Rivet

36037

$1.48

22

Washer 5,3 mm

20008

$0.74

23

Hood Latch

570027100

$13.49

24

SUPPORT - Call your local BRP dealership | SUV 600

605450205

Unavailable

25

Dash | SUV 600

605148420

Unavailable

25

Dash | SUV 550

605148419

Unavailable

26

Hinge This part replaces M5343075.

5343075

$36.99

27

SCREW - Call your local BRP dealership

M40193

Unavailable

28

SPRING PLATE - Call your local BRP dealership

M5443123

Unavailable

29

CABLE-KEEPER - Call your local BRP dealership | SUV 600

M5446948

Unavailable

29

CABLE KEEPER - Call your local BRP dealership | SUV 550

605449395

Unavailable

30

Rivet

36005

$2.11

31

Retainer Cable | 550 SUV

M5346947

Unavailable

32

Spring This part replaces M5442675.

5442675

$14.99

33

SHORT TUBE - Call your local BRP dealership

605449084

Unavailable

34

Molding Lamp

M5246396

Unavailable

35

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

36

Flat Washer 6 mm

234062410

$0.77

37

Well-Nut S M5 X 14 (1=10Pcs) This part replaces M28055.

28055

$7.51

38

Screw M5X25

M40179

Unavailable

39

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

40

INTAKE COVER - Call your local BRP dealership

605149010

Unavailable

41

WINDSHIELD - Call your local BRP dealership

M5147892

Unavailable

42

FILTER - Call your local BRP dealership

605349056

Unavailable

43

Windshield Latch

570023800

$4.49

44

Safety Washer

36084

$1.70

45

Screw

M40156

Unavailable

46

Air Duct

M5246742

Unavailable

47

Hood Ass'y | SUV 550 (Yellow), Includes 25 to 29

605149586

Unavailable

47

HOOD ASS'Y, YELLOW - Call your local BRP dealership | SUV 600 (Yellow), Includes 46 to 51

605149606

Unavailable

48

Air Duct | SUV 550

M5146986

Unavailable

49

Black, Dart

414644300

$0.98

50

Fan Cover | SUV 600

M5343409

Unavailable

51

RH Cover | SUV 600

M5342990

Unavailable

51

LH Cover | SUV 600

M5343408

Unavailable

52

LH Upper Grill | SUV 600

M5242899

Unavailable

52

LH Upper Grill | SUV 550

M5242670

Unavailable

52

RH UPPER GRILL - Call your local BRP dealership

M5242671

Unavailable

53

RH Lower Grill

M5242672

Unavailable

53

LH Lower Grill

M5342673

Unavailable

54

Front Grill

M5142669

Unavailable

55

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

56

Rubber Cushion | 600 SUV

M5443985

Unavailable

57

COVER - Call your local BRP dealership

M282000

Unavailable

57

COVER - Call your local BRP dealership

M282000

Unavailable

58

HEADLIGHT FOAM SEAL - Call your local BRP dealership | SUV 600

605349151

Unavailable

59

Support

M5347795

Unavailable
