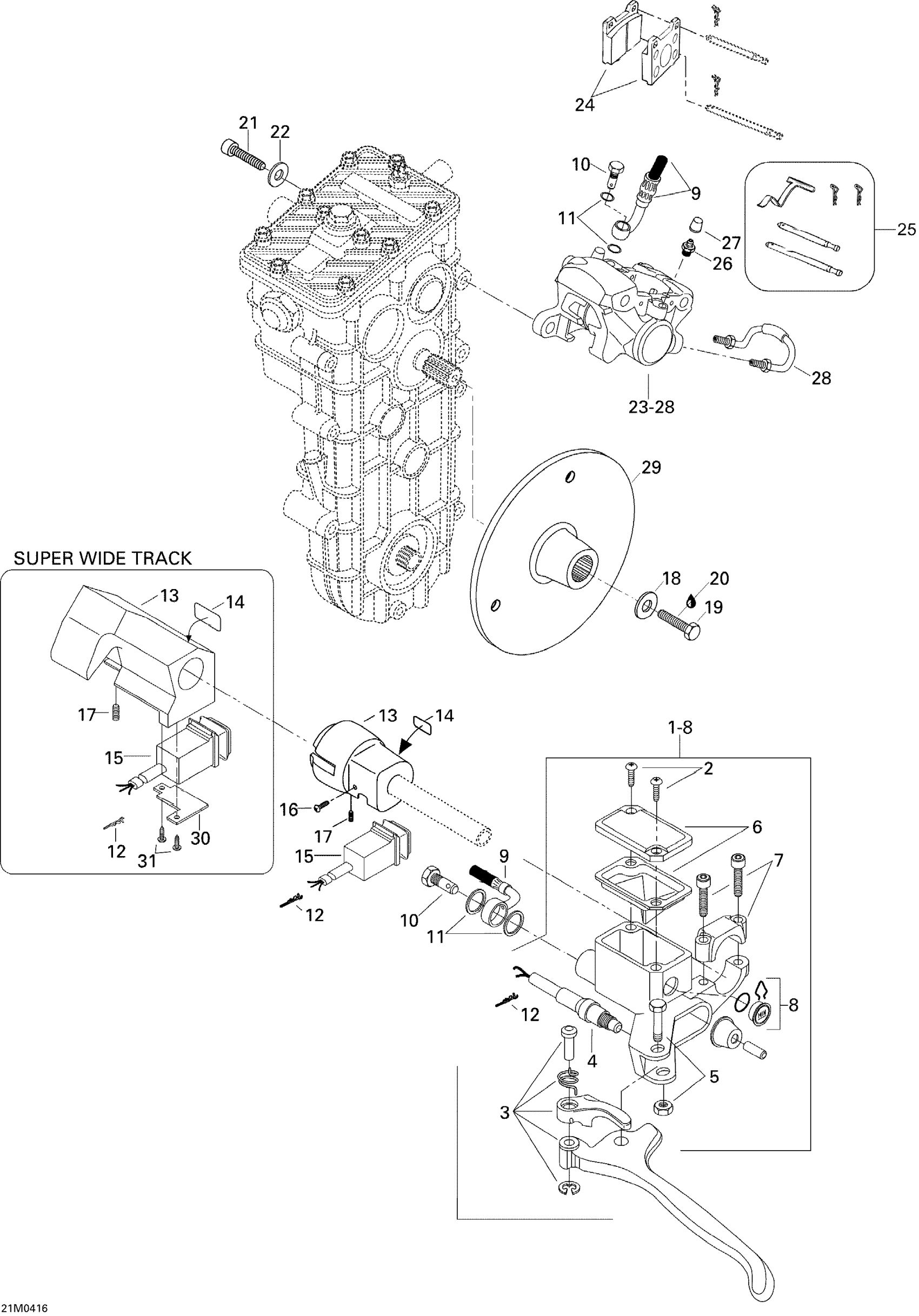

Ski-Doo Skandic WT/SWT 550F , 2004 06- Brake Diagram
#
Description
Price
1
Master Cylinder | Includes 1 to 8
507032293
Unavailable
2
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
3
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
6
WINDOW - Call your local BRP dealership
414990600
Unavailable
9
HOSE - Call your local BRP dealership
507032219
Unavailable
12
CONNECTOR - Call your local BRP dealership
605642628
Unavailable
13
DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550
572079500
Unavailable
13
BRAKE HOUSING - Call your local BRP dealership
515175696
Unavailable
14
Switch Decal
415025500
Unavailable
15
Switch | SWT 550
515175423
Unavailable
15
LIGHT SWITCH - Call your local BRP dealership
515175814
Unavailable
16
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership
250000022
Unavailable
18
Washer
M546336
Unavailable
19
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
21
SOCKET HEAD SCREW M10 X 65 - Call your local BRP dealership
M40277
Unavailable
23
Caliper | Includes Items 1 to 6
507032321
Unavailable
25
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
26
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
27
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
28
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
30
Plate | SWT 550
517283800
Unavailable
31
Screw
414473200
Unavailable
