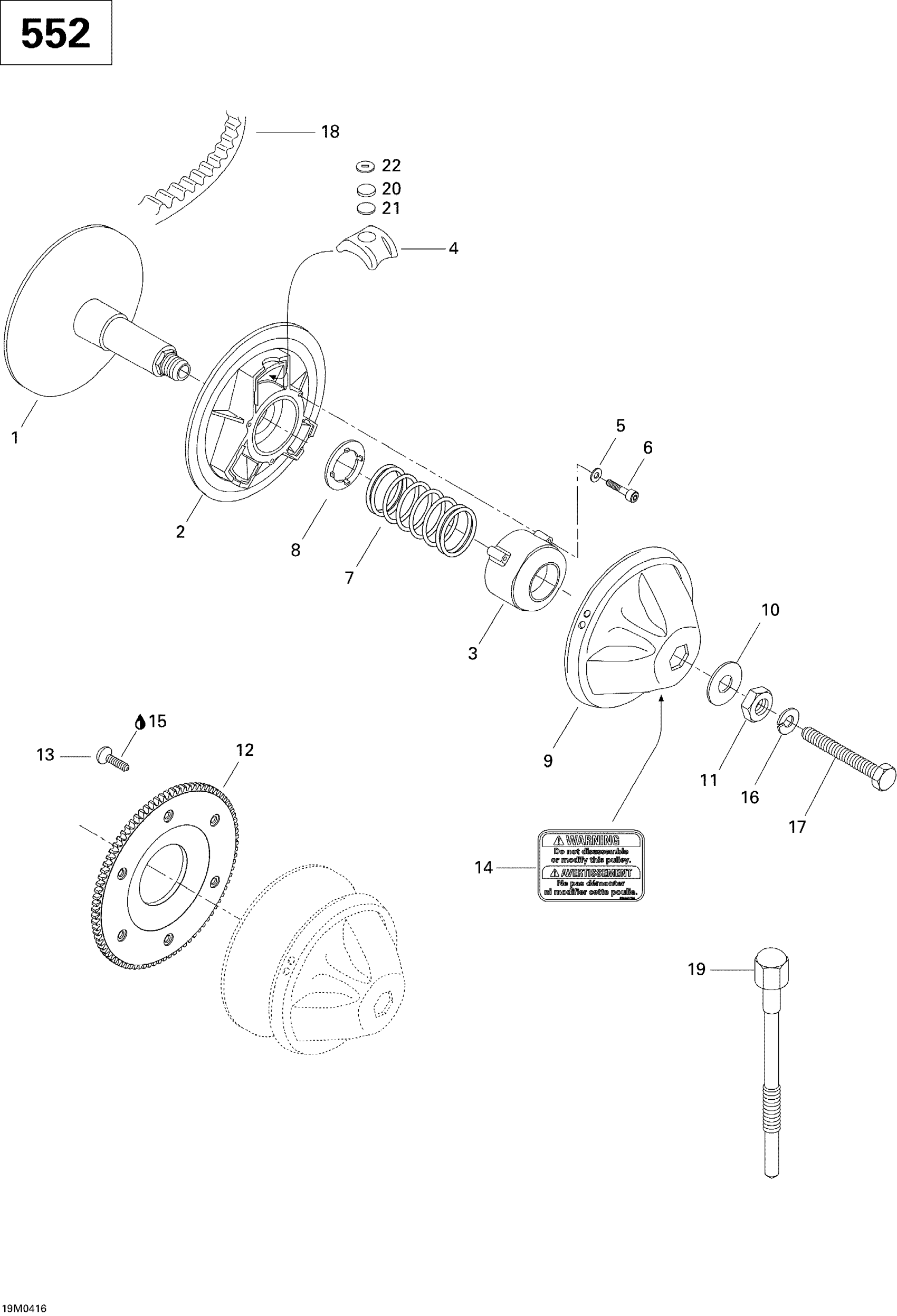

Ski-Doo Skandic WT/SWT 550F , 2004 05- Drive Pulley (552) Diagram
#
Description
Price
1
Fixed Flange
M140054
Unavailable
2
Sliding Flange
M140055
Unavailable
3
SPRING COVER - Call your local BRP dealership
415128602
Unavailable
4
CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA
417118100
Unavailable
5
WASHER - Call your local BRP dealership
420245370
Unavailable
6
SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership
415128606
Unavailable
7
SPRING YELLOW/GREEN - Call your local BRP dealership
414742100
Unavailable
8
SPRING SEAT - Call your local BRP dealership
417126694
Unavailable
9
Cap
415128609
Unavailable
10
WASHER - Call your local BRP dealership
415128610
Unavailable
11
NUT - Call your local BRP dealership
417118300
Unavailable
12
RING GEAR - Call your local BRP dealership
417300186
Unavailable
14
Security Label
516001726
Unavailable
16
Conical Spring Washer
M20090
Unavailable
17
BOLT - Call your local BRP dealership
417113800
Unavailable
20
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417120400
Unavailable
21
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417114400
Unavailable
22
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
