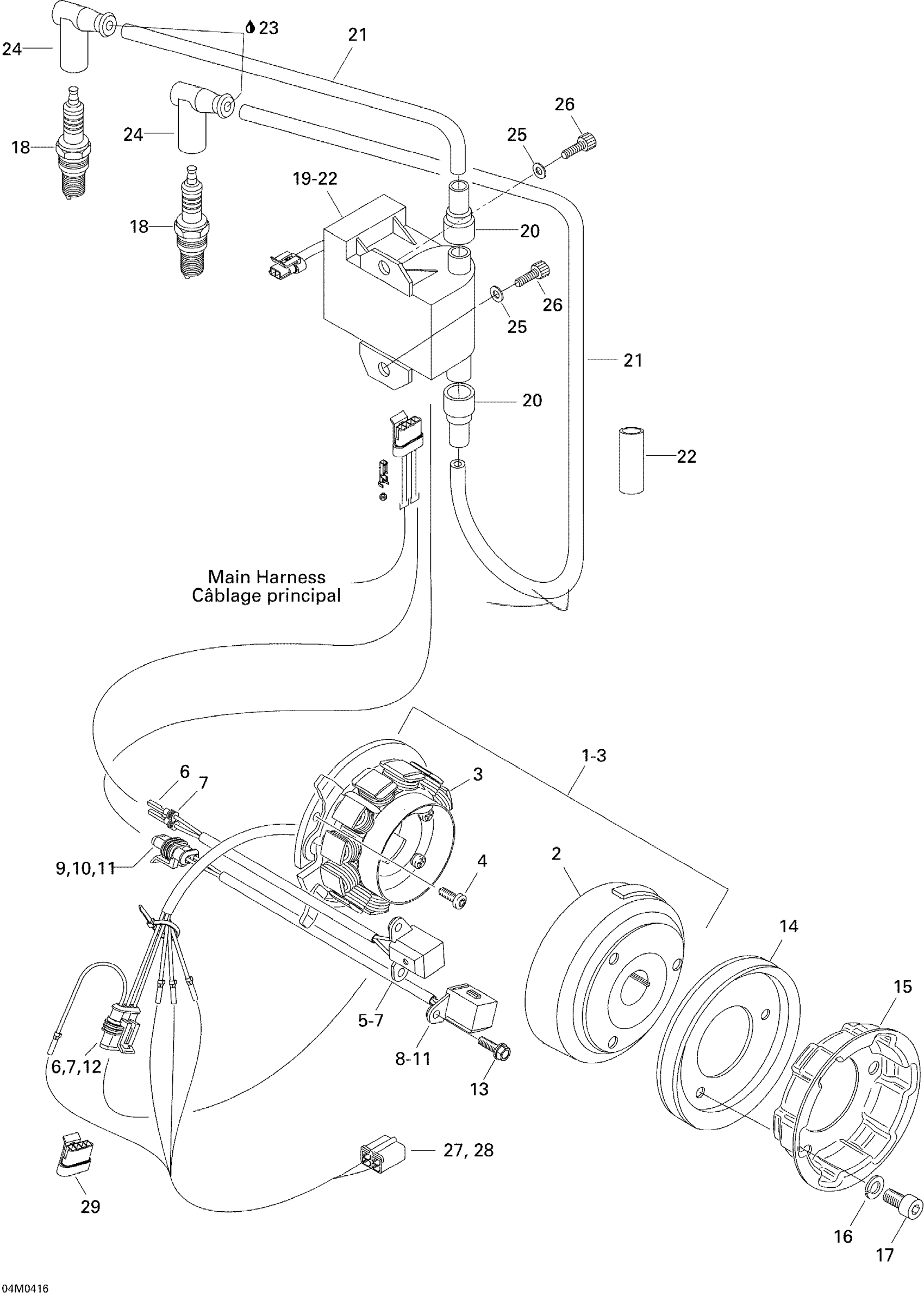

Ski-Doo Skandic WT/SWT 550F , 2004 03- Magneto (552) Diagram

#

Description
Price

1

Magneto Ducati | Includes 1 to 2

420888970

Unavailable

2

Flywheel

420889376

$494.49

3

Stator Plate A

420889369

$319.49

4

Screw

420641521

$8.57

5

Pick-Up

420665163

$164.99

6

Female Terminal

278001014

$3.28

7

Wire Seal

278001013

$3.28

8

PICK-UP - Call your local BRP dealership

420665160

Unavailable

9

Female Housing, 2 Circuits

409209500

$15.27

10

Female Terminal

278001014

$3.28

11

Wire Seal

278001013

$3.28

12

Female Housing, 3 Circuits

409209600

$35.99

13

Taptite Screw M5 X 16

420941928

Unavailable

14

V-Belt Pulley

420980486

$37.99

15

Rope Sheave

420852414

$29.49

16

Lock Washer

420845311

$1.90

17

Torx Flange Screw M8 X 16

420440852

$4.12

18

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

19

Calibration Module | Includes 14 to 16

512059626

$399.99

20

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

21

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

22

Protection Hose

540806051

Unavailable

23

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

24

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

25

Flat Washer 6 mm

234061410

$1.36

26

Screw

M40364

Unavailable

27

Female Terminal Housing, 4 Circuits

278001473

$26.99

28

Female Lock, 4 Circuits

278001474

$3.49

29

Male Housing

M42618

Unavailable
