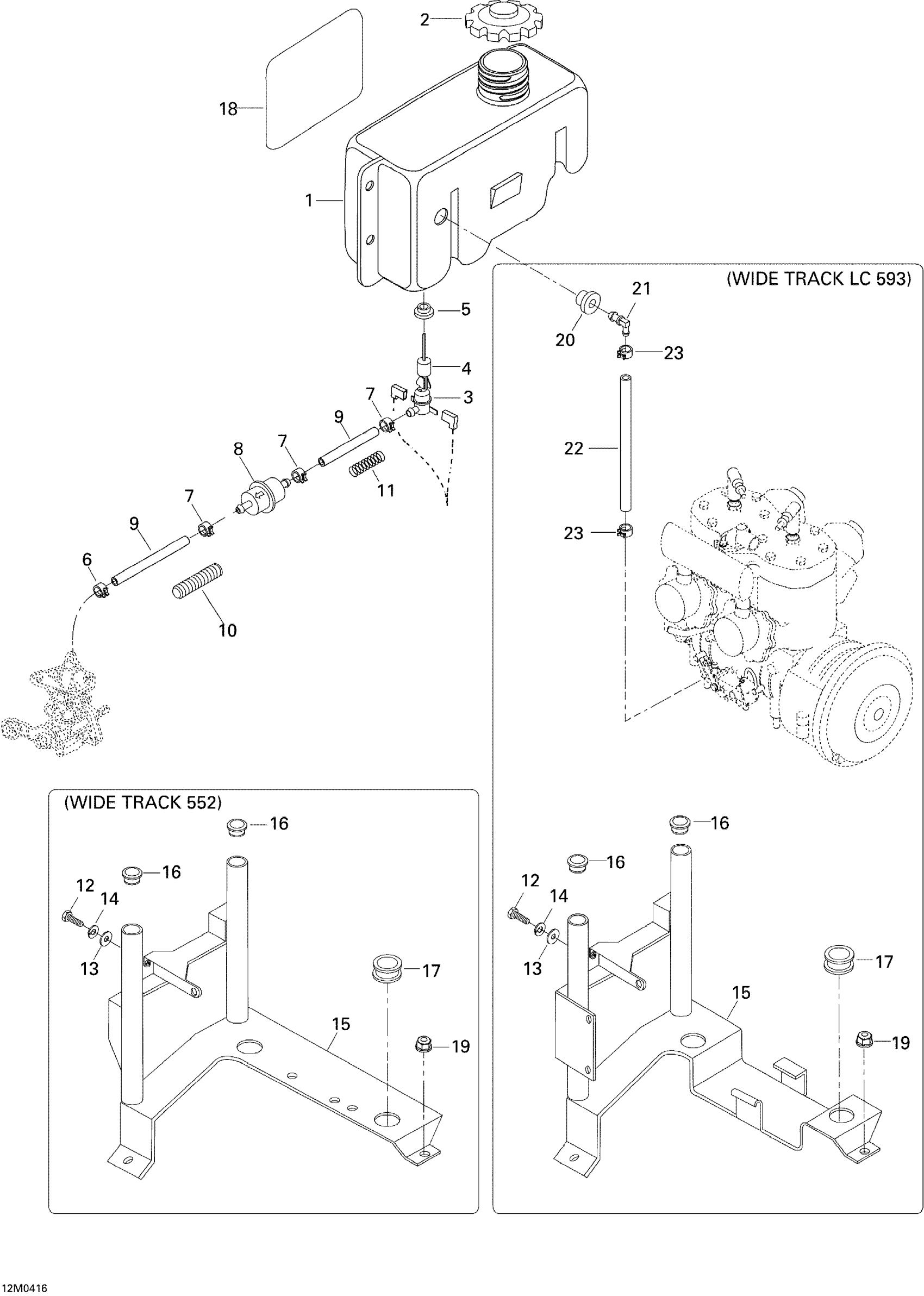

Ski-Doo Skandic WT/SWT 550F , 2004 02- Oil Tank And Support Diagram

#

Description
Price

1

Oil Tank

M5142700

Unavailable

1

Oil Tank | SUV 600

M5146370

Unavailable

2

CAP - Call your local BRP dealership

519000044

Unavailable

3

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

4

Float

414681900

Unavailable

5

Insulating Ring

570023000

$5.61

6

Spring Clamp

414420700

$0.72

7

Spring Clamp

414415200

$0.88

8

Filter

414536500

$4.02

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

10

HOUSING - Call your local BRP dealership

M28015

Unavailable

11

Spring

M250002

Unavailable

12

Screw

M40322

Unavailable

13

Flat Washer 6 mm

234062410

$0.77

14

Lock Washer M6, Black

234161471

$0.53

15

Oil Tank Support | SUV 550

605350521

Unavailable

15

Oil Tank Support | SUV 600

M5246593

Unavailable

16

PLUG - Call your local BRP dealership

M28136

Unavailable

17

Grommet This part replaces M28022.

28022

$15.29

18

Reflecting Sheet

M5443578

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Grommet

709200285

$9.69

21

Male Connector

414580700

$4.12

22

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

23

Spring Clamp

414554800

$0.88
