Description

Price

1

CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.

420889066

Unavailable

2

Ball Bearing

420832571

$79.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Ball Bearing

420832632

$104.99

5

Oil Seal This part replaces 290831952.

420831952

$18.01

6

Ball Bearing

420832573

$44.49

7

Retaining Disk

420927710

$7.41

8

Labyrinth Sleeve

420850149

$35.99

9

Woodruff Key

420246055

$2.43

10

Lock Washer, 22 mm

420945759

$1.90

11

Hex. Nut, M22 X 1.5

420842239

$17.53

12

NEEDLE BEARING - Call your local BRP dealership

420832420

$33.99

13

Piston Ass'y 75.86 mm, Standard | Includes 14 to 16

420889050

$169.99

13

Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16

420889051

$169.99

13

Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16

420889052

$169.99

14

Rectangular Ring, Standard

420815300

$24.49

14

Rectangular Ring, 1st

420815301

$24.49

14

Rectangular Ring, 2nd

420815302

$24.49

15

Semi-Trapez Ring, Standard

420815155

$51.99

15

Semi-Trapez Ring, 1st

420815156

$51.99

15

Semi-Trapez Ring, 2nd

420815157

$50.99

16

Piston Pin

420916407

$25.49

17

Piston Circlip

420845106

$3.93

18

Rod Repair Kit

420889064

Unavailable

19

Crankshaft PTO Side

420819180

Unavailable

20

Half Crankshaft (MAG)

420819213

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

23

Sealant Loctite 648

219703000

$45.99

24

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

25

Petamo Grease, GHY133N, 400 g

420899271

$67.99

26

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

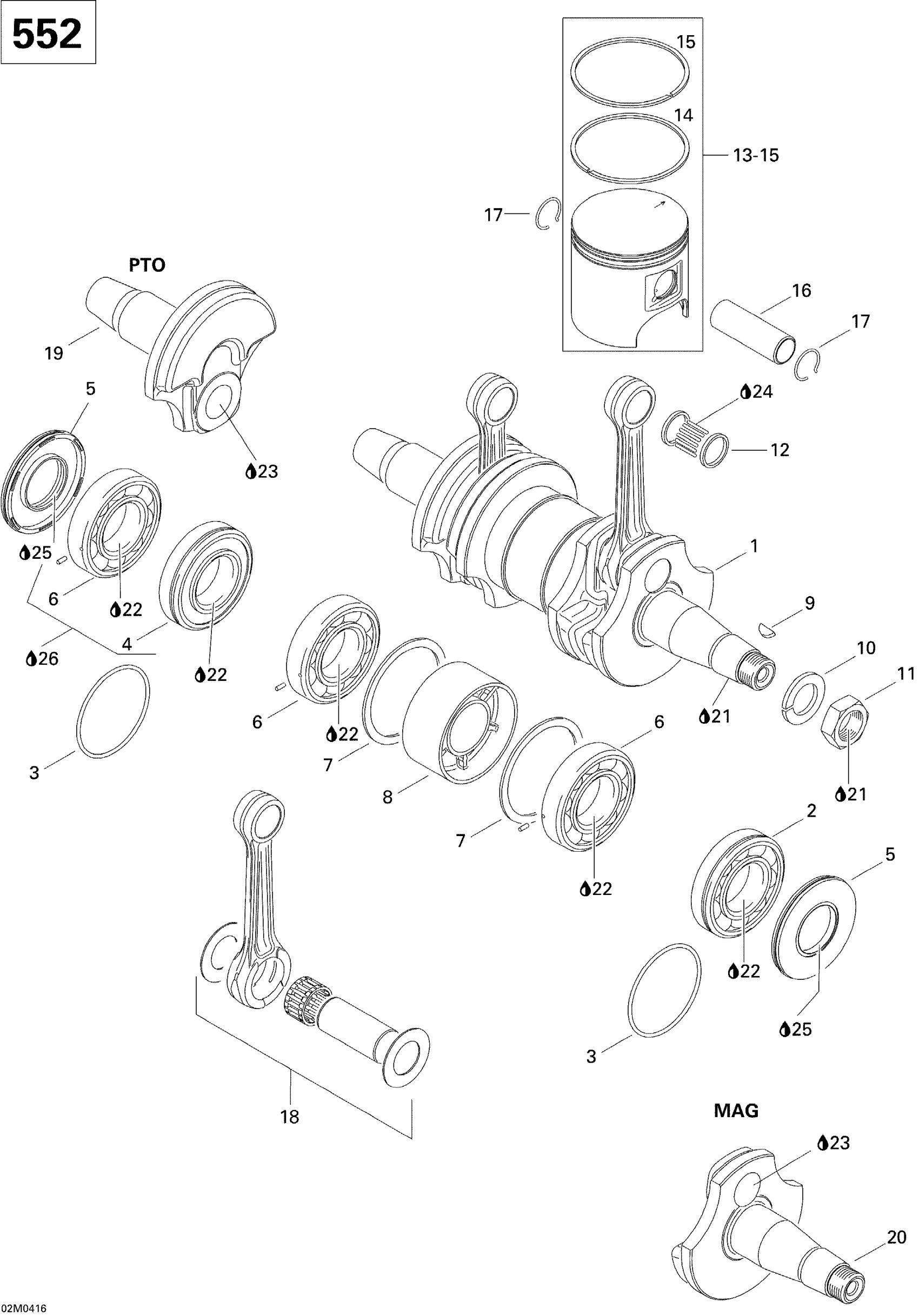

Ski-Doo Skandic WT/SWT 550F , 2004 01- Crankshaft And Pistons (552) Diagram

CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.

Ball Bearing

O-Ring, 64 mm X 2 mm

Ball Bearing

Oil Seal This part replaces 290831952.

Ball Bearing

Retaining Disk

Labyrinth Sleeve

Woodruff Key

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

NEEDLE BEARING - Call your local BRP dealership

Piston Ass'y 75.86 mm, Standard | Includes 14 to 16

Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16

Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16

Rectangular Ring, Standard

Rectangular Ring, 1st

Rectangular Ring, 2nd

Semi-Trapez Ring, Standard

Semi-Trapez Ring, 1st

Semi-Trapez Ring, 2nd

Piston Pin

Piston Circlip

Rod Repair Kit

Crankshaft PTO Side

Half Crankshaft (MAG)

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Sealant Loctite 648

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

Petamo Grease, GHY133N, 400 g

Isoflex Grease, TOPAS NB52, 50 g
