Description

Price

1

Indicator

515177912

$549.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

DESS Switch

515177249

$114.99

7

Male Terminal

515175232

$1.58

8

Male Housing, 3 Circuits

515175494

$16.18

9

Tubing 12 mm

409902000

Unavailable

10

Safety Nut (DESS Switch)

278002963

$3.28

11

DESS

515178284

$84.99

11

DESS CAP (LEARNING KEY) - Call your local BRP dealership

860200907

Unavailable

12

DC Outlet

710001248

$37.99

13

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Main Harness | Includes 1 To VMS

515177482

$669.99

16

Eco Switch Wiring Harness This part replaces 515177568.

515179615

$104.99

17

ECO Rocker Switch

515177569

$19.49

18

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

19

Clip

270000141

$11.49

20

Avdel Rivet 3/16"

293150037

$0.56

21

Pop Rivet 3/16"

390402200

$0.35

22

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

23

Ground Wire

515176883

$28.99

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

Tie-Rap 180 mm

414115200

$0.11

25

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Tie Wrap 142 mm

293750002

$1.25

26

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

26

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

27

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Cap

515176498

$12.99

30

Rubber Cap Protector

219800280

$19.49

31

Torx Screw M6 X 20

250000722

$1.68

32

Panel Nut M6 X 1.0

250100198

$2.11

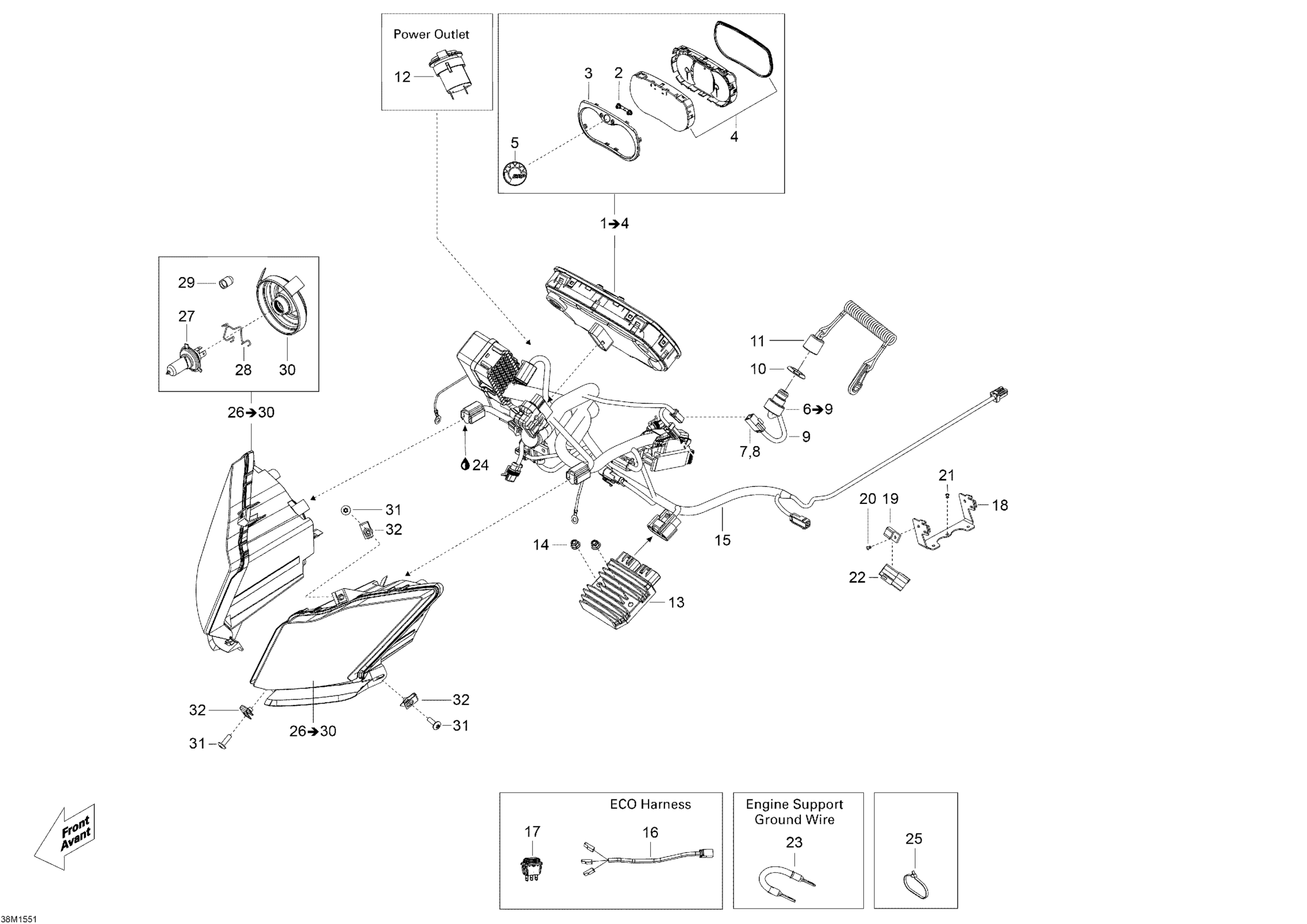

Ski-Doo Skandic WT 900 ACE, 2015 10- Electrical System _38M1551 Diagram

Indicator

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

BRP Logo 20MM x 2MM | XTP

DESS Switch

Male Terminal

Male Housing, 3 Circuits

Tubing 12 mm

Safety Nut (DESS Switch)

DESS

DESS CAP (LEARNING KEY) - Call your local BRP dealership

DC Outlet

Voltage Regulator | Package-DPS, Model-Europe

Hex. Flange Elastic Nut M6 x 1.0

Main Harness | Includes 1 To VMS

Eco Switch Wiring Harness This part replaces 515177568.

ECO Rocker Switch

FUSEBOX SUPPORT - Call your local BRP dealership

Clip

Avdel Rivet 3/16"

Pop Rivet 3/16"

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

Ground Wire

Was 293550004 Dielectric Grease, 150 g

Tie-Rap 180 mm

Tie Wrap 94 mm | 4X4

Tie Wrap 142 mm

RH Headlamp Ass'y | Includes 2400 to 2400c

LH Headlamp Ass'y | Includes 2600 to 2600c

Halogen Bulb, 60/55 W, 12 V ( H4 )

Not Available As Spare Part - Friction Washer

Cap

Rubber Cap Protector

Torx Screw M6 X 20

Panel Nut M6 X 1.0
