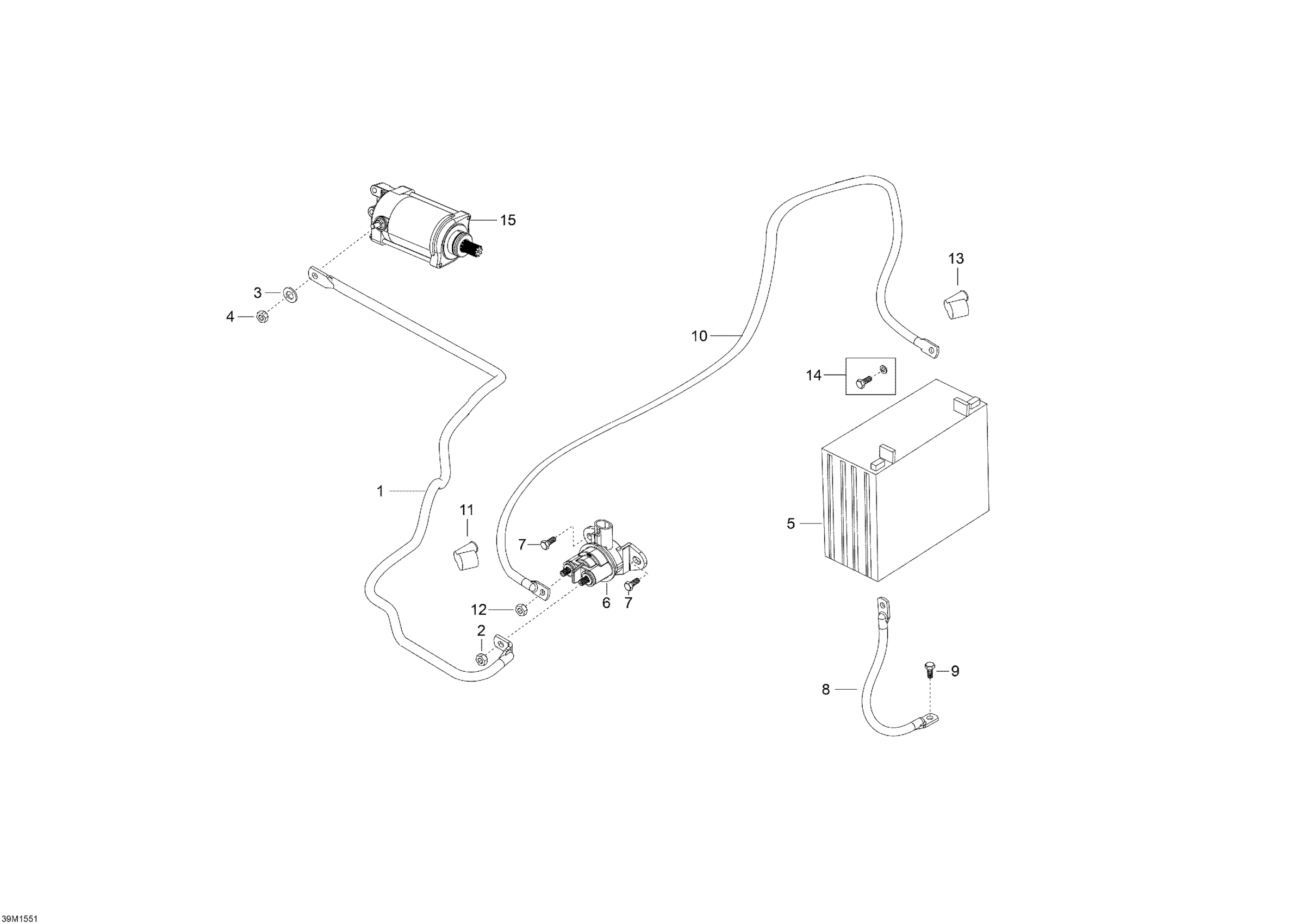

Ski-Doo Skandic WT 900 ACE, 2015 Battery And Starter _39M1551 Diagram

#

Description

Price

1

Battery Wire

515176945

Unavailable

2

Elastic Stop Nut M6

232561434

$1.78

3

Flat Washer 6 mm

234061410

$1.19

4

Elastic Stop Nut M6

232561434

$1.78

5

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

6

Starter Relay

278003012

$40.27

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

8

Ground Wire

515176777

Unavailable

9

Hex. Flange Screw M6 X 16

207661644

$0.70

10

Battery Wire

515176778

Unavailable

11

Protection Cap

570151000

$17.88

12

Elastic Stop Nut M6

232561434

$1.78

13

Protector Cap

710000495

$9.84

14

Battery Bolt Kit

250000282

$3.39

15

Electric Starter Ass'y

420892435

$297.99
