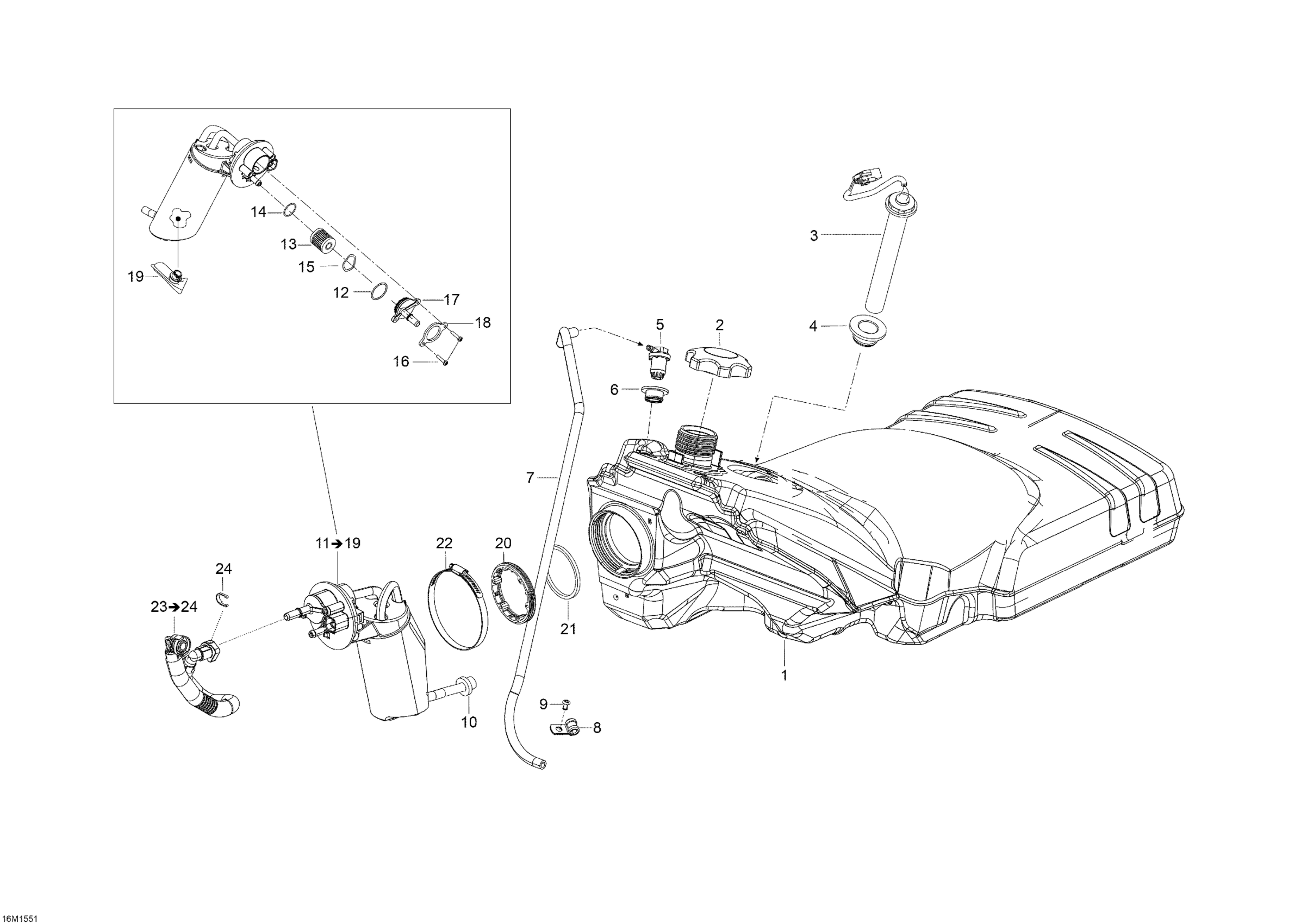

Ski-Doo Skandic WT 900 ACE, 2015 Fuel System _16M1551 Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap

513033969

$25.35

3

Fuel Sensor

513033538

$77.66

4

Grommet

293720058

$11.00

5

Check Valve

513033842

$33.82

6

Grommet

513033596

$18.43

7

Polyurethane Hose 10000Mm Long

219704410

$46.12

8

Clamp

293650256

$4.36

9

Avex Rivet

390909200

$0.29

10

Grommet

280000674

$4.42

11

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$257.66

12

O-Ring

415129509

$18.43

13

Fuel Filter

415129510

$23.05

14

O-Ring

415129511

$16.89

15

Wave Washer

415129512

$18.43

16

Screw

415129513

$9.00

17

Cover

415129685

$29.97

18

Fuel Pump Ring

415129569

Unavailable

19

Fuel Filter

415129451

$23.05

20

Ring

513033180

$17.66

21

Gasket

513033334

$23.05

22

Clamp

513033628

$20.74

23

Hose Ass'y | Includes 500 to 500a

513033582

$73.05

24

Locking Clip

513033135

$5.11
