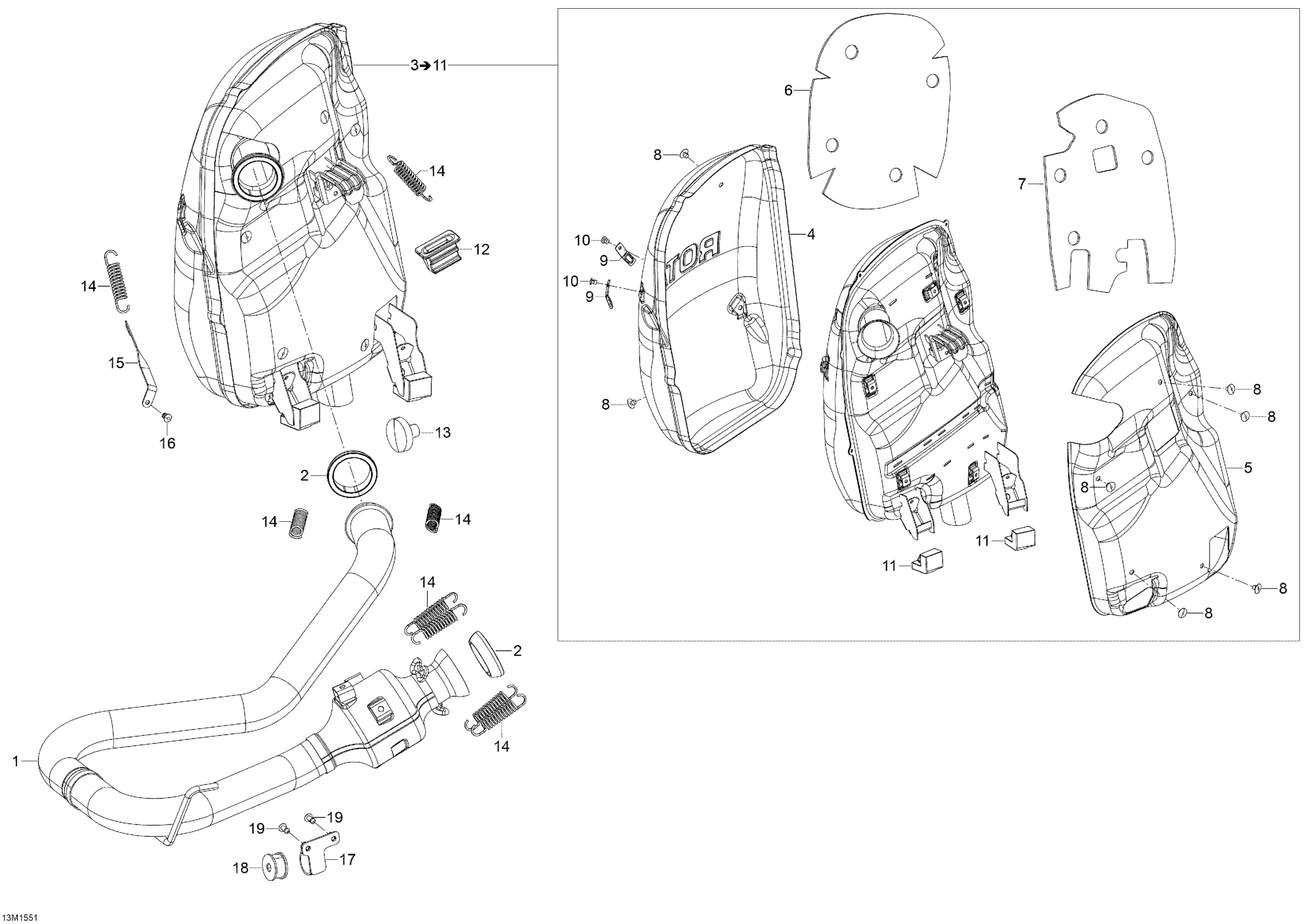

Ski-Doo Skandic WT 900 ACE, 2015 01- Exhaust System _13M1551 Diagram

TUBE - Call your local BRP dealership

514055017

Unavailable

Exhaust Gasket

707601033

$13.77

Muffler Ass'y | Includes 400 to 400h

514055326

$1.00

RH Heat Shield

514055325

$53.99

LH HEAT SHIELD - Call your local BRP dealership

514055128

Unavailable

RH Insulating Wool

514054769

$14.99

LH Insulating Wool

514054881

$15.99

Pop Rivet 3/16”

390910000

$0.57

Spring Bracket

514054522

$8.45

Avex Rivet

390909200

$0.30

Lower Stopper

514054496

$26.49

Stopper

514054346

$19.49

Rubber Bumper

514053654

$50.99

Spring

415107100

$6.35

Spring Bracket

514055317

$10.17

Avex Rivet

390909100

$0.30

Support

514054939

$28.49

Anti-Vibration Rubber

707600702

$8.57

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11
