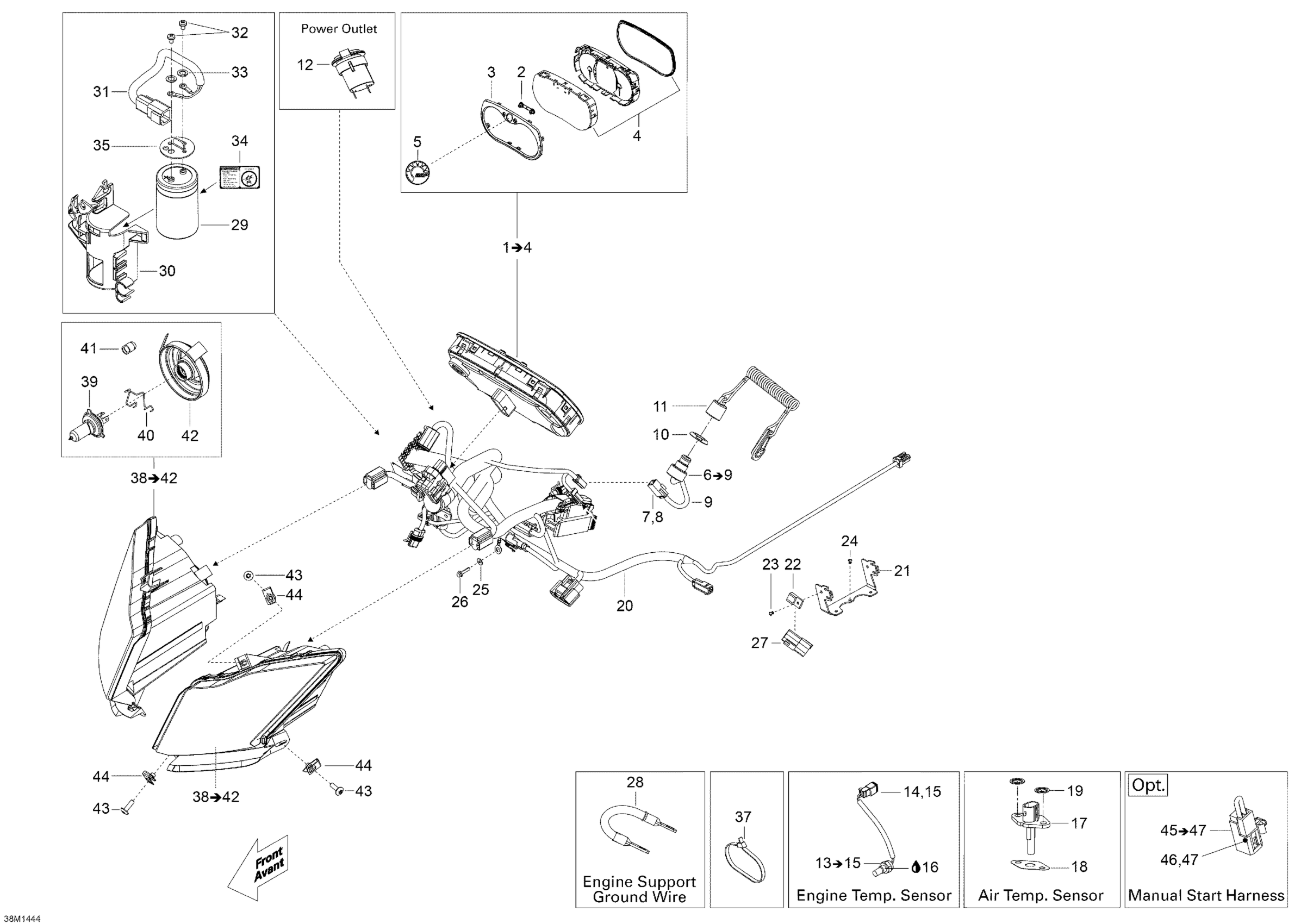

Ski-Doo Skandic WT 600HOETEC XU, 2014 10- Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177914

$629.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

DESS Switch

515177249

$114.99

7

Male Terminal

515175232

$1.58

8

Male Housing, 3 Circuits

515175494

$16.18

9

Tubing 12 mm

409902000

Unavailable

10

Safety Nut (DESS Switch)

278002963

$3.28

11

DESS

515178284

$84.99

12

DC Outlet

710001248

$37.99

13

Temperature Sensor This part replaces 420664508.

420664509

$149.99

14

Female Terminal Housing, 2 Circuits

515175670

$8.39

15

Female Terminal

278000632

$2.09

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Air Temperature Sensor

515176366

$19.99

18

Seal

508000769

$6.39

19

Push Nut

389804300

$0.53

20

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177502

Unavailable

21

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

22

Clip

270000141

$11.49

23

Avdel Rivet 3/16"

293150037

$0.56

24

Pop Rivet 3/16"

390402200

$0.35

25

Lock Washer 4 mm

234141601

$1.15

26

Torx Screw M4 X 8

250000127

$1.15

27

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

28

Ground Wire

515177289

$26.99

29

Capacitor

515177272

$90.99

30

Capacitor Support

515176607

$20.99

31

Capacitor Harness

515176605

$33.99

32

Socket Head Screw M10 X 32

250000462

$2.11

33

Lock washer | Quest XT 650.

250200026

$1.90

34

CAPACITOR DECAL (ENGLISH) - Call your local BRP dealership

516005515

Unavailable

35

Cap

515177193

$4.69

37

Tie-Rap 180 mm

414115200

$0.11

37

Tie Wrap 368 mm

293750008

$1.04

37

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

38

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

39

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Cap

515176498

$12.99

42

Rubber Cap Protector

219800280

$19.49

43

Torx Screw M6 X 20

250000722

$1.68

44

Panel Nut M6 X 1.0

250100198

$2.11

45

MANUAL START HARNESS - Call your local BRP dealership | Includes 29 to 31

515176661

Unavailable

46

Male Terminal

515175232

$1.58

47

Male Housing, 2 Circuits

710000667

$8.32
