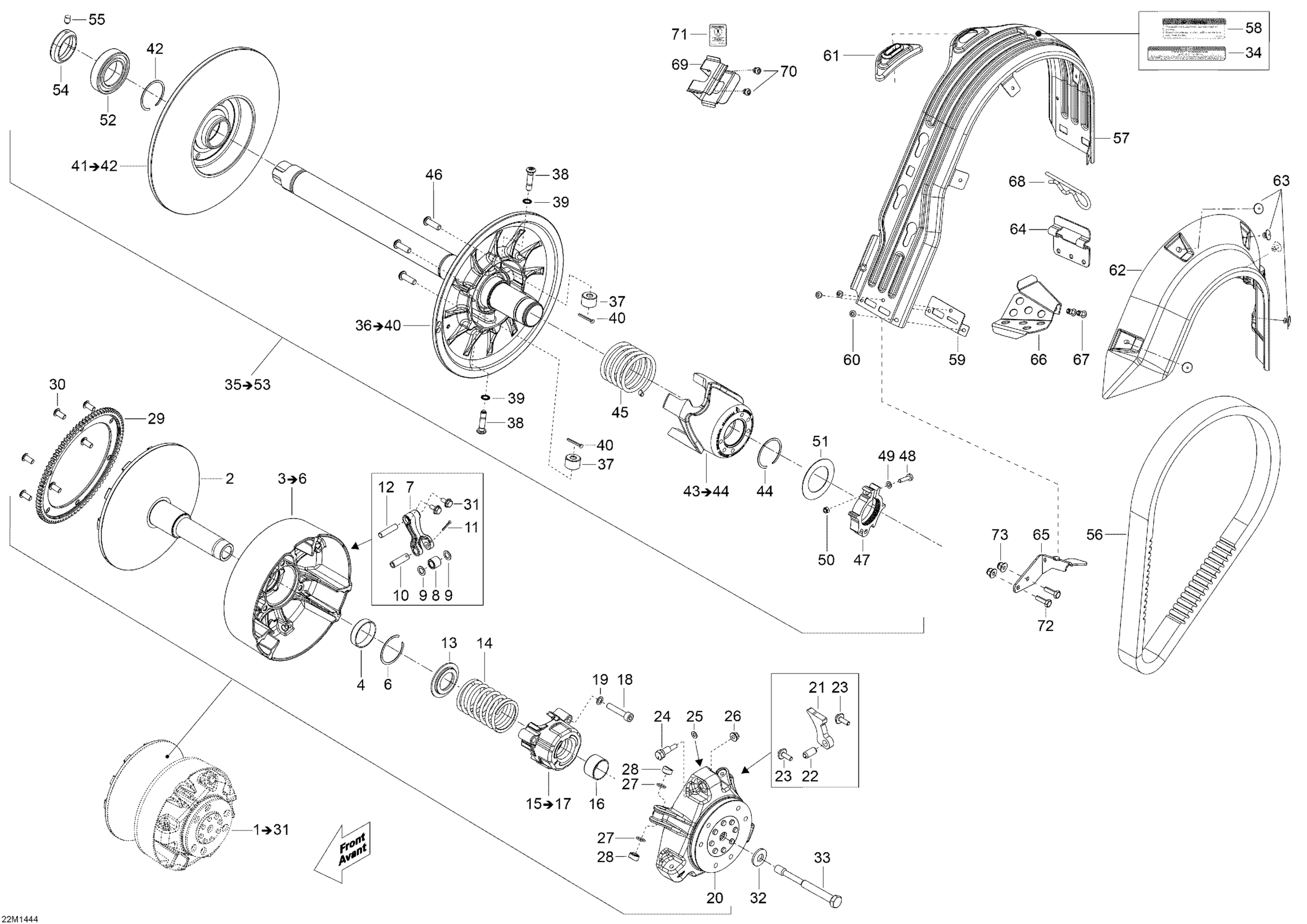

Ski-Doo Skandic WT 600HOETEC XU, 2014 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417222758

$20.74

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417222594

$14.11

11

Cotter Pin

250400060

$1.60

12

Lever Axle

417223164

$4.25

13

Spring Seat

417222312

$8.28

14

Tra Spring

414993000

$14.75

15

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

16

Bushing

417009204

$16.12

18

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

19

Lock Washer 8 mm

250200009

$2.06

20

Governor Cup Ass'y

417223669

$456.89

21

Ramp 600

417222444

$32.28

22

Spring Pin M10 X 22

250400050

$2.38

23

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

24

Calibration Screw

417223501

$27.66

25

Washer

417005600

$3.86

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

O-Ring

732401030

$0.95

28

Slider Shoe

417223271

$8.59

29

Ring Gear_Starter This part replaces 417223738.

417225070

$223.05

30

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

31

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

32

Conical Spring Washer M14

250200144

$3.63

33

Drive Pulley Bolt

417120000

$63.82

34

Decal English

516005503

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Fixed Flange Ass'y | Inclus 38 à 44

417127409

$433.82

37

Roller

417127189

$44.58

38

Pivot Stud

417127294

$13.58

39

Lock Washer 8 mm

250200009

$2.06

40

Spring Pin M3 X 30

250400063

$1.74

41

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$152.28

42

Circlip

293370049

$4.71

43

Cam Ass'y

417127411

$164.99

44

Circlip

293370049

$4.71

45

Spring, White

417127243

$42.28

46

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

47

Calibration Ass'y

415129604

$22.49

48

Socket Screw M5 X 25

205052544

$1.34

49

Flat Washer M5

234051410

$0.44

50

Elastic Stop Nut M5

232551414

$0.72

51

Washer

417127155

$8.03

52

Ball Bearing

504152574

Unavailable

54

RETAINER RING - Call your local BRP dealership

417300419

Unavailable

55

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable

56

Drive Belt

417300551

$170.99

57

Belt Guard

417300357

$86.12

58

Security label, Belt Guard

516004649

Unavailable

59

Reinforcement

417300380

$5.17

60

Avex Rivet

390909200

$0.29

61

Guide

417300381

$9.23

62

Side Protector

417300356

$13.25

63

Pop Rivet 3/16"

293150103

$0.54

64

Belt Guard Bracket | Except Package SWT

417300363

$12.20

65

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

66

Brake Hose Cover | Except Package SWT

518325626

$28.43

67

Rivet Hucklok

293150163

$2.82

68

Hair Pin

114045200

$10.69

69

Bracket

517281905

$15.35

70

Avex Rivet

390909100

$0.29

71

Belt Decal, English

516005511

Unavailable

72

Warning Decal | Europe

516003919

$7.65

73

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
