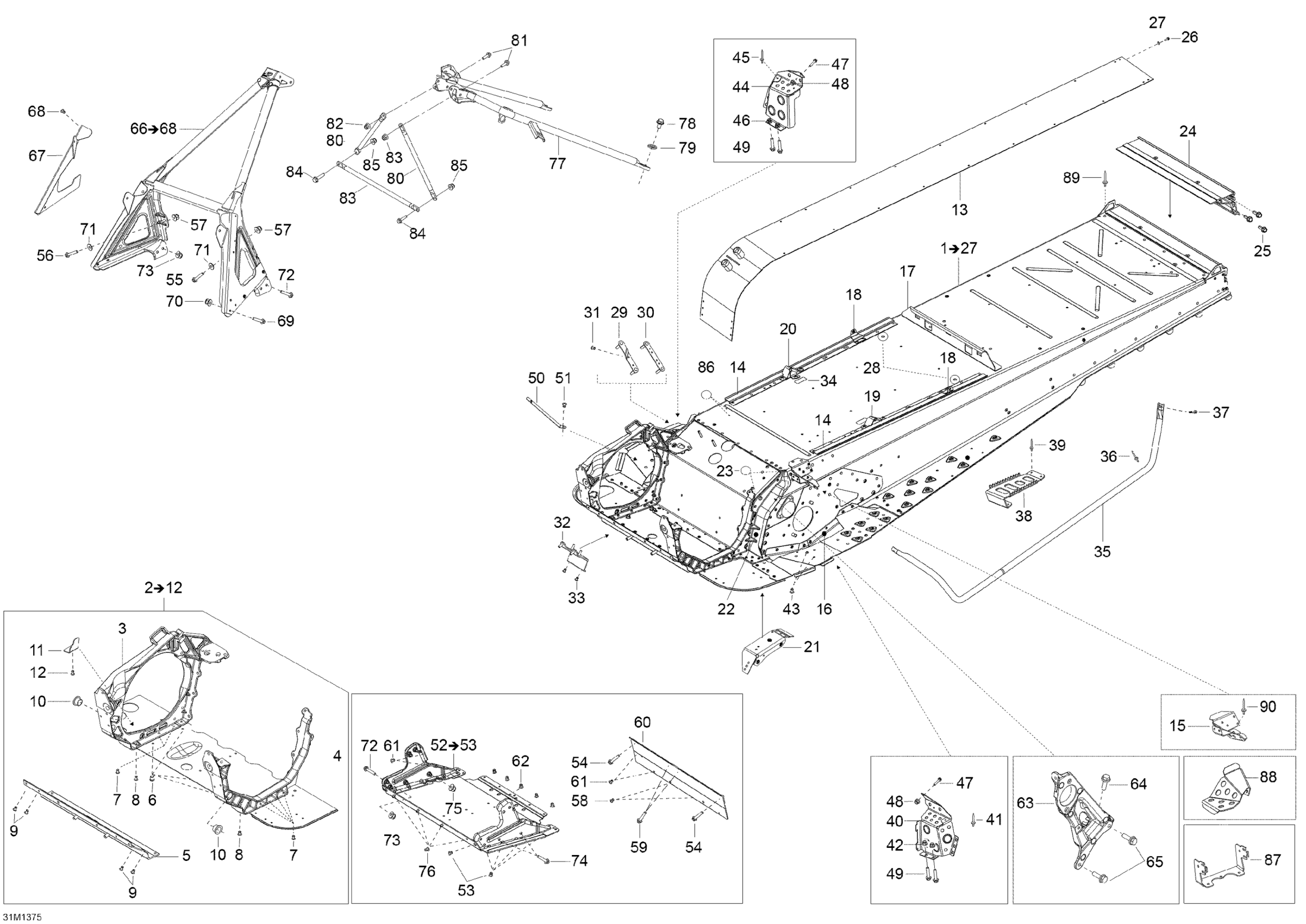

Ski-Doo Skandic WT 600HOETEC XU, 2013 Frame Diagram

#

Description
Price

1

Frame XU E-TEC SC-5 | Includes 1 - 12

518326982

Unavailable

2

Module E | Includes 2 To 12

518328186

$880.57

3

RH Member

518326795

$252.21

4

LH Member

518326796

$204.45

5

Front Member

518326198

$58.18

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Leg Bushing

505072690

$5.75

11

Muffler support plate

518326642

Unavailable

12

Rivet Hucklok

293150163

$2.73

13

Radiator

509000975

$779.07

14

Fastening rail

518326107

$14.90

15

Fastening Bracket

605355235

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

18

Seat Box Bracket

518327457

$29.07

19

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$44.75

22

LH Frame Corner

518325524

$50.72

22

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

23

Adhesive Patch

518325560

$4.21

24

Rear Profile

518328748

$211.16

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

26

Socket Screw | Not Shown

205061244

$2.00

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Adhesive Patch

518325560

$4.21

29

Gearbox Front Plate

518326123

Unavailable

30

Gearbox Rear Plate

518326124

$14.81

31

Pop Rivet 3/16"

390402200

$0.30

32

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

33

Hemlock Rivet, 6.5 mm

293150119

$3.88

34

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

35

LH Footboard Support Tube

518326963

$123.10

35

RH Footboard Support Tube

518326964

$123.10

36

Avex Rivet

390909100

$0.28

37

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

38

Footrest

520000492

$17.88

39

Avex Rivet

390909100

$0.28

40

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

41

Avex Rivet

390909200

$0.28

42

Clinch Nut M6 Hexsert

605636003

$4.00

43

Black, Dart

414644300

$0.90

44

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

45

Avex Rivet

390909200

$0.28

46

Clinch Nut M6 Hexsert

605636003

$4.00

47

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

49

Torx Screw M6 X 20

250000722

$1.54

50

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

51

Avex Rivet

390909200

$0.28

52

S Module | Includes 300 to 300a

518326213

$752.96

53

Avex Rivet

390909200

$0.28

54

Hexagonal Head Screw

210262050

$2.00

55

Hex. Flange Screw M6 X 25

207662544

$0.61

56

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

58

Hemlock Rivet, 6.5 mm

293150119

$3.88

59

Hex. Flange Screw M6 X 16

207661644

$0.70

60

SUPPORT PLATE - Call your local BRP dealership

518325620

Unavailable

61

Avex Rivet

390909100

$0.28

62

Avex Rivet

390909200

$0.28

63

PULLEY SUPPORT - Call your local BRP dealership

518327372

Unavailable

64

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

65

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

66

Front Member Ass'y | Includes 700 to 700d

518326754

$654.45

67

LH Bumper Fastener

502007077

$51.46

67

RH Bumper Fastener

502007078

$51.46

68

Avex Rivet

390909200

$0.28

69

Hex. Flange Screw M6 X 20

207662044

$1.91

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

71

Flat Washer

224061201

$1.27

72

Hex. Flange Screw M6 X 20

207662044

$1.91

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

74

Hex. Flange Screw M6 X 20

207662044

$1.91

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

76

Avex Rivet

390909200

$0.28

77

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

78

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

79

Not Available As Spare Part - Friction Washer

Unavailable

80

Upper Lateral Column Support

518325114

$20.12

81

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

83

Center Column Support

518325115

$20.12

84

Hex Flange Screw M6 x 25

250000522

$4.15

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

86

Adhesive Patch

518325560

$4.21

87

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

88

Brake Hose Cover | Except Package SWT

518325626

$27.58

89

Hemlock Rivet, 6.4 mm

293150174

$6.24

90

Avex Rivet

390909200

$0.28
