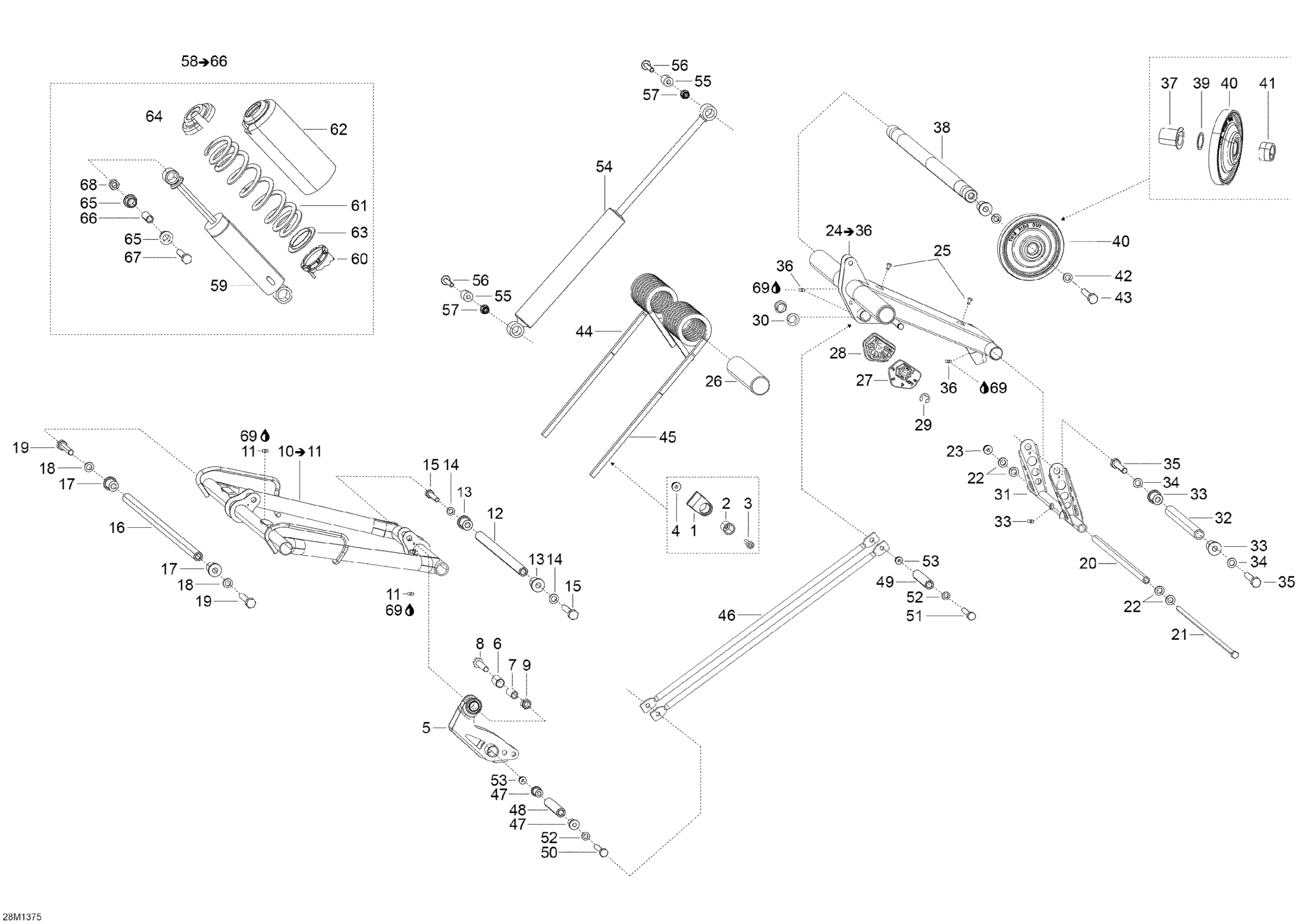

Ski-Doo Skandic WT 600HOETEC XU, 2013 Rear Suspension b Diagram

#

Description
Price

1

Spring Support Kit

861805547

$7.90

2

Spring Support Kit

861805547

$7.90

3

Socket Head Screw M8 X 25

205082544

$1.06

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Rocker

503192211

$76.09

6

Bushing

503193037

$14.90

7

Bushing | Includes 240d to 240d1

503189282

$4.06

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

9

Elastic Locking Nut M10 X 1.5

233601416

$1.63

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$203.70

11

Grease Fitting

408200700

$3.21

12

Lower Shaft

503191390

$26.84

13

Bushing

503189324

$10.84

14

Washer

503192496

$0.73

15

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

16

Upper Shaft

503191391

$33.55

17

Bushing

503189324

$10.84

18

Washer

503189564

$0.70

19

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

20

Axle Pivot

503191396

$76.09

21

Bolt 369MM

503195156

$24.60

22

Washer

503189157

$3.10

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

25

Black, Dart

414644300

$0.90

26

Not Available As Spare Part - Friction Washer

Unavailable

27

LH Cam Adjuster

503191565

$13.54

28

RH Cam Adjuster

503191566

$13.54

29

E-Circlip

293370013

$0.60

30

Swivel Bushing

503191555

$5.54

31

Pivot Arm | Includes 3000j to 3000j3

503195154

$93.25

32

Lower Shaft

503192330

$44.75

33

Cushion

503191640

$5.54

34

Washer | 7415/7416. 7417/7418.

503189148

$2.64

35

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

36

Grease Fitting

408200700

$3.21

37

Cushion

503191451

$10.84

38

Upper Shaft

503191405

$86.54

39

Washer

503190328

$11.00

40

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$44.75

41

Retaining Ring

503191099

$5.67

42

Washer

503192491

$4.25

43

Socket Screw M12 X 35

250000484

$7.09

44

Black RH Square Spring

503192377

$105.94

45

Black LH Square Spring

503192378

$105.94

46

Link Rod

503191765

$17.13

47

Swivel Bushing

503191555

$5.54

48

Axle Bar (Long)

503190643

$14.90

49

Axle Bar (Long)

503190643

$14.90

50

Hex. Screw M8 X 90

207089044

$3.24

51

Hex. Screw M8 X 90

207089044

$3.24

52

Washer

503189157

$3.10

53

Hex. Flange Elastic Nut M8

233281414

$1.31

54

Rear Shock

503193520

$231.31

55

Bushing

414936000

$11.21

56

Hex. Flange Screw M8 X 40

207684044

$1.43

57

Hex. Flange Elastic Nut M8

233281414

$1.31

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Center Shock

503192266

$152.96

60

Adjustment Cam

505073625

$11.82

61

Black, Spring 242MM

503191880

$64.90

62

Protector

503193663

$34.30

63

Spring Guide

503191872

$2.12

64

Spring Stopper

706200881

$11.82

65

Urethane Bushing

503189117

$6.67

66

Bushing | Includes 240d to 240d1

503189282

$4.06

67

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

68

Elastic Locking Nut M10 X 1.5

233601416

$1.63

69

Not Available As Spare Part - Friction Washer

Unavailable
