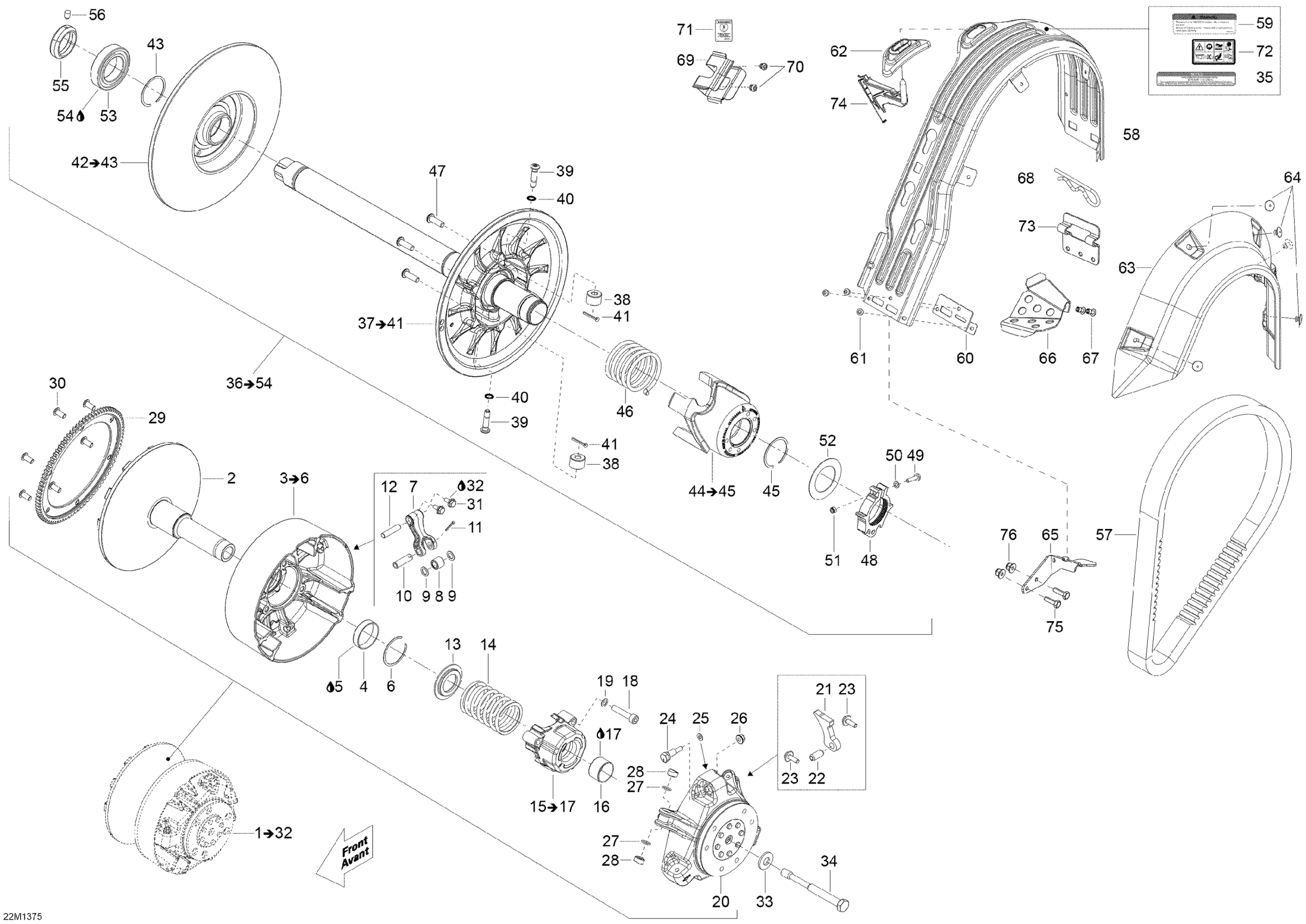

Ski-Doo Skandic WT 600HOETEC XU, 2013 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$214.90

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$188.03

4

Bushing

417222758

$20.12

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Circlip

293370037

$2.93

7

Lever | Includes 10f to 10g

417222671

$46.24

8

Roller

417222947

$19.37

9

Stopper Washer

417004302

$15.64

10

Pin

417222594

$13.69

11

Cotter Pin

250400060

$1.84

12

Lever Axle

417223164

$4.12

13

Spring Seat

417222312

$8.03

14

Tra Spring

414993000

$52.96

15

Spring Cover Ass'y | Includes 10r to 10t

417007500

$44.75

16

Bushing

417009204

$15.64

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

19

Lock Washer 8 mm

250200009

$2.00

20

Governor Cup Ass'y

417223669

$435.04

21

Ramp 600

417222444

$32.81

22

Spring Pin M10 X 22

250400050

$2.73

23

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.75

24

Calibration Screw

417223501

$11.73

25

Washer

417005600

$3.75

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

27

O-Ring

732401030

$0.93

28

Slider Shoe This part replaces 420460045.

417223021

$5.99

29

Ring Gear_Starter This part replaces 417223738.

417225070

$216.39

30

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.72

31

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.75

32

Loctite 243, 10 ml

293800060

$21.49

33

Spring Washer 14 mm

250200006

$6.66

34

Drive Pulley Bolt

417120000

$61.91

35

Decal English

516005503

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Fixed Flange Ass'y | Inclus 38 à 44

417127409

$411.16

38

Roller

417127189

$43.25

39

Pivot Stud

417127294

$13.18

40

Lock Washer 8 mm

250200009

$2.00

41

Spring Pin M3 X 18

250400061

$2.00

42

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$143.25

43

Circlip

293370049

$4.57

44

Cam Ass'y

417127411

$160.42

45

Circlip

293370049

$4.57

46

Spring, White

417127243

$41.01

47

Torx Screw M8 X 25, Scotch Grip

250000283

$1.85

48

Calibration Ass'y

415129604

$22.49

49

Socket Screw M5 X 25

205052544

$1.54

50

Flat Washer M5

234051410

$0.51

51

Elastic Stop Nut M5

232551414

$0.82

52

Washer

417127155

$7.79

53

Ball Bearing

504152574

$33.55

54

Not Available As Spare Part - Friction Washer

Unavailable

55

RETAINER RING - Call your local BRP dealership

417300419

Unavailable

56

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable

57

Drive Belt

417300551

$167.13

58

Belt Guard

417300357

$83.55

59

Security label, Belt Guard

516004649

Unavailable

60

Reinforcement

417300380

$5.01

61

Avex Rivet

390909200

$0.28

62

Guide

417300381

$8.73

63

Side Protector

417300356

$12.85

64

Pop Rivet 3/16"

293150103

$0.52

65

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

66

Brake Hose Cover | Except Package SWT

518325626

$27.58

67

Rivet Hucklok

293150163

$2.73

68

Hair Pin

114045200

$10.37

69

Bracket

517281905

$14.90

70

Avex Rivet

390909100

$0.28

71

Belt Decal, English

516005511

Unavailable

72

Warning Decal | Europe

516003919

$7.42

73

Belt Guard Bracket | Except Package SWT

417300363

$11.84

74

Ignition Coils Support

512060888

$10.21

75

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

76

Hex. Flange Elastic Nut M6 x 1.0

233261414
