Description

Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap 91 Octane

513033722

$22.49

2

Fuel Tank Cap

513033025

$24.49

3

Fuel Sensor

513033538

$82.99

4

Grommet

293720058

$11.99

5

Check Valve

513033842

$35.99

6

Grommet

513033596

$21.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

8

Tie-Rap 180 mm

414115200

$0.11

9

Clip

414227300

$1.67

10

Grommet

280000674

$4.69

11

Fuel Pump Ass'y | Includes 13 to 15

513033643

$259.99

12

Fuel Filter

415129451

$25.99

13

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

14

Ring

513033180

$19.99

15

Gasket

513033334

$24.49

16

Clamp

513033628

$20.49

17

Hose Ass'y

513033589

$194.99

18

Locking Clip

513033135

$5.89

19

Tubing 16 Mm 1000Mm Long

219704408

$7.49

20

Hose Ass'y | Includes 22 to 23

513033594

$88.99

21

Locking Clip

513033135

$5.89

22

Bracket

513033542

$14.99

23

Bracket

513033593

$18.99

24

Hex. Flange Screw M5 X 10

207551044

$4.12

25

Hose Ass`Y

513033631

$309.99

26

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

27

Crimp Clamp, 15.3-706R

293650047

$3.29

28

FOAM - Call your local BRP dealership

513033640

Unavailable

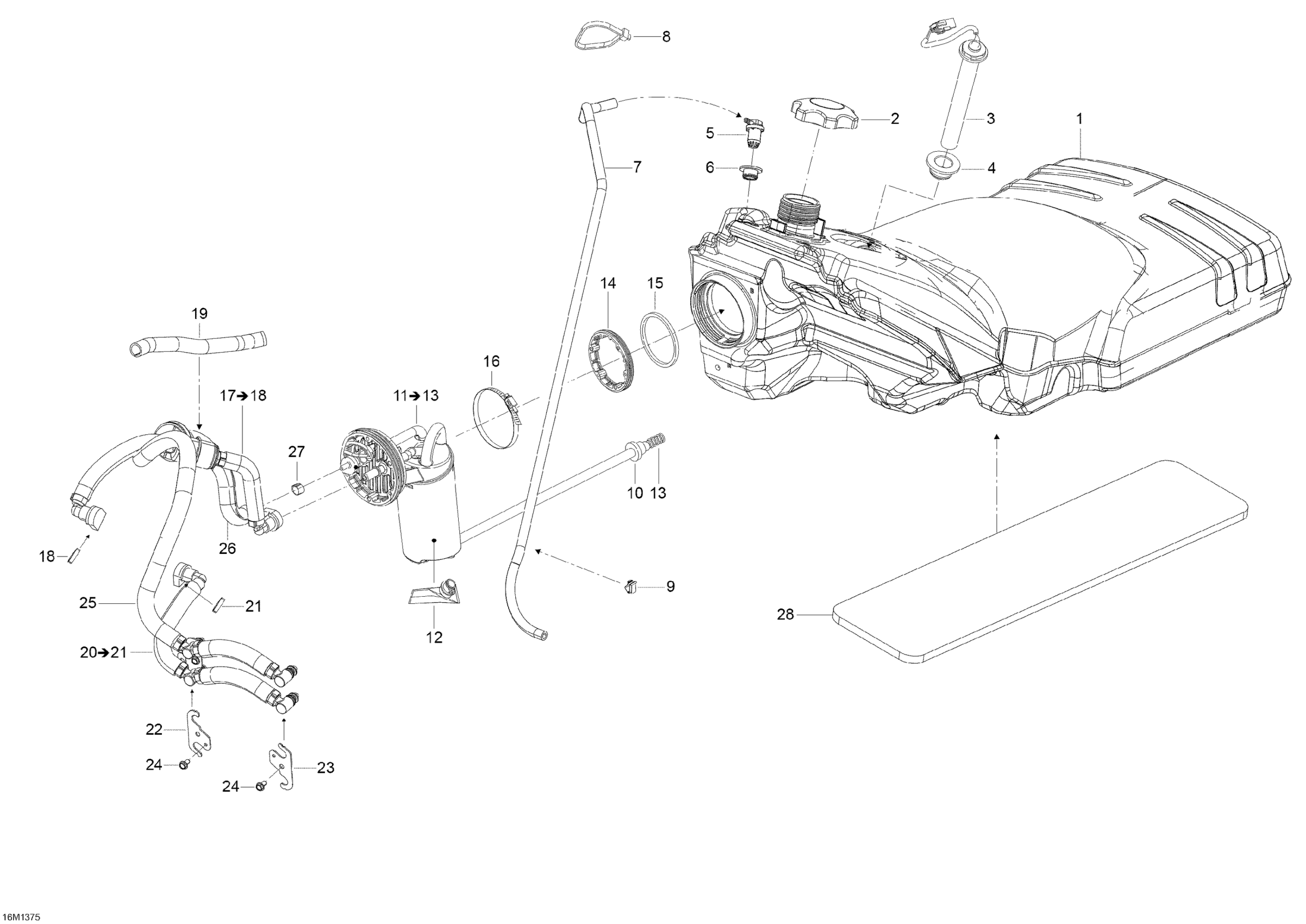

Ski-Doo Skandic WT 600HOETEC XU, 2013 02- Fuel System Diagram

FUEL TANK - Call your local BRP dealership

Fuel Tank Cap 91 Octane

Fuel Tank Cap

Fuel Sensor

Grommet

Check Valve

Grommet

Polyurethane Hose 10000Mm Long

Tie-Rap 180 mm

Clip

Grommet

Fuel Pump Ass'y | Includes 13 to 15

Fuel Filter

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

Ring

Gasket

Clamp

Hose Ass'y

Locking Clip

Tubing 16 Mm 1000Mm Long

Hose Ass'y | Includes 22 to 23

Locking Clip

Bracket

Bracket

Hex. Flange Screw M5 X 10

Hose Ass`Y

FORMED HOSE - Call your local BRP dealership

Crimp Clamp, 15.3-706R

FOAM - Call your local BRP dealership
