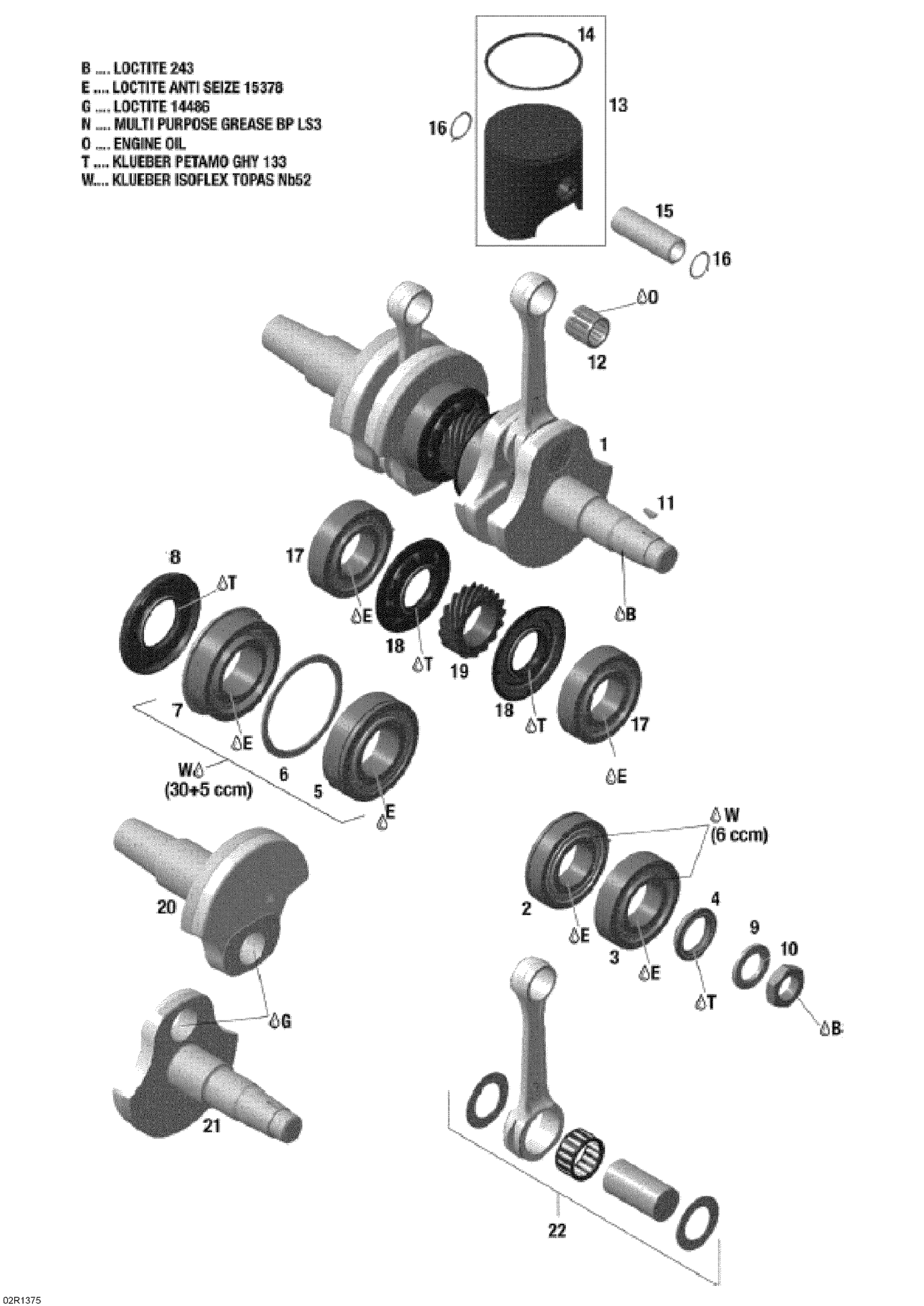

Ski-Doo Skandic WT 600HOETEC XU, 2013 Crankshaft Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 8

420890953

$1,029.99

2

Ball Bearing

420832175

Unavailable

3

Ball Bearing 6207 | With drive pin

420832575

$49.22

4

Oil Seal

420931795

$16.39

5

Ball Bearing | With drive pin

420832602

$94.00

6

Washer

420926190

$10.76

7

Ball Bearing | With drive pin

420832702

$83.55

8

Oil Seal | Included in gasket kit

420931284

$22.36

9

Lock Washer, 22 mm

420945759

$1.78

10

Hex. Nut, M22 X 1.5

420842239

$16.39

11

Woodruff Key

420246015

$3.01

12

Needle Bearing

420832445

$25.34

13

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

420892388

$232.81

14

Semi-Trapez Ring

420815295

$65.64

15

Piston Pin

420916412

$31.31

16

Piston Circlip

420845106

$3.89

17

Ball Bearing 6207 | With drive pin

420832575

$49.22

18

Oil Seal

420931455

$33.55

19

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rod Repair Kit, PTO Side

420890958

$319.99

22

Rod Repair Kit, MAG Side

420890959

$319.99

B

Loctite 243, 10 ml

293800060

$21.49

E

Not Available As Spare Part - Friction Washer

Unavailable

G

Not Available As Spare Part - Friction Washer

Unavailable

N

Not Available As Spare Part - Friction Washer

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

T

Not Available As Spare Part - Friction Washer

Unavailable

W

Not Available As Spare Part - Friction Washer

Unavailable
