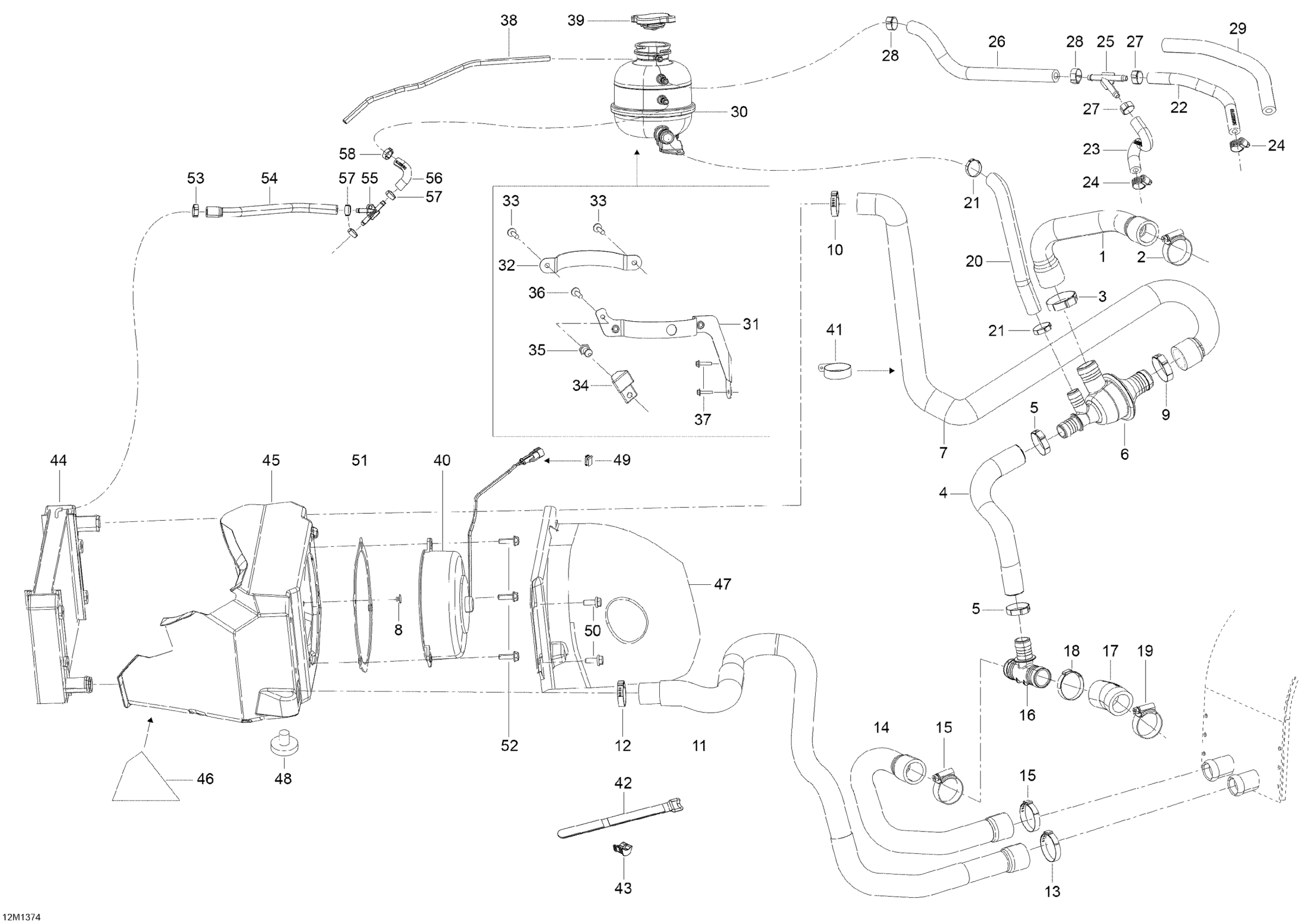

Ski-Doo Skandic WT 600HOETEC XU, 2013 Cooling System Diagram

#

Description
Price

1

Engine Outlet Hose

509000595

$14.10

2

Aba Gear Clamp, 26-38 MM

509000443

$5.64

3

Oetiker Gear Clamp

509000181

$4.15

4

Bypass Hose

509000523

$58.18

5

Crimp Clamp

293650099

$4.07

6

Thermostat Housing

509000499

$38.78

7

Hose Radiator

509000737

$148.48

8

Rivet

36005

$1.96

9

Oetiker Gear Clamp

509000181

$4.15

10

Crimp Clamp

293650099

$4.07

11

Air Radiator Hose

509000588

$58.18

12

Crimp Clamp

293650099

$4.07

13

Aba Gear Clamp, 26-38 MM

509000443

$5.64

14

Return Radiator Hose

509000589

$43.25

15

Aba Gear Clamp, 26-38 MM

509000443

$5.64

16

T-Fitting

509000372

$9.03

17

Engine Inlet Hose This part replaces 509000675.

509001067

$16.39

18

Oetiker Gear Clamp

509000181

$4.15

19

Aba Gear Clamp, 26-38 MM

509000443

$5.64

20

Filling Hose

509000736

$34.30

21

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

22

Bleeder Hose

509000769

$10.46

23

Bleeder Hose

509000768

$9.57

24

Tridon Gear Clamp

293650170

$2.00

25

Y-Fitting

293710059

$9.40

26

BREATHER HOSE - Call your local BRP dealership

509000878

Unavailable

27

Oetiker Clamp

293650046

$2.67

28

Crimp Clamp, 15.3-706R

293650047

$3.03

29

Protector Tube, 16 mm

513033231

$7.15

30

Coolant Tank

509000368

$84.30

31

Reservoir support

509000852

$64.15

32

Support

509000608

$29.07

33

Forming Screw M5 x 16

250000676

$0.96

34

Support

509000609

$22.36

35

Knob

517303439

$4.28

36

Torx Screw K50 X 16

250000720

$1.60

37

Screw M4 X 16

250000725

$3.30

38

Hose 6 Mm 15000Mm Long

219704360

$120.12

39

Radiator Pressure Cap

509000180

$13.42

40

Fan

509000837

$188.03

41

CLIP - Call your local BRP dealership

M27011

Unavailable

42

Velcro Strip

508000820

$7.13

43

Bumper

508000572

Unavailable

44

Radiator

509000756

$170.87

45

Cooling Fan Shroud

509001173

$24.60

46

Foam

509000615

$24.60

47

Deflector

509001174

$18.63

48

Rubber Bumper

570044700

$10.24

49

Clip

710000992

$3.88

50

Hex. Flange Screw M6 X 12

207661244

$1.96

51

Screw plate

509000614

$23.10

52

Hex. Flange Screw M6 X 20

210262040

$2.00

53

Crimp Clamp

293650053

$2.78

54

Formed Hose

509000880

$14.10

55

Y-Fitting

293710140

$7.09

56

Formed Hose

509000879

$9.03

57

Crimp Clamp, 15.3-706R

293650047

$3.03

58

Crimp Clamp, 15.3-706R

293650047

$3.03
