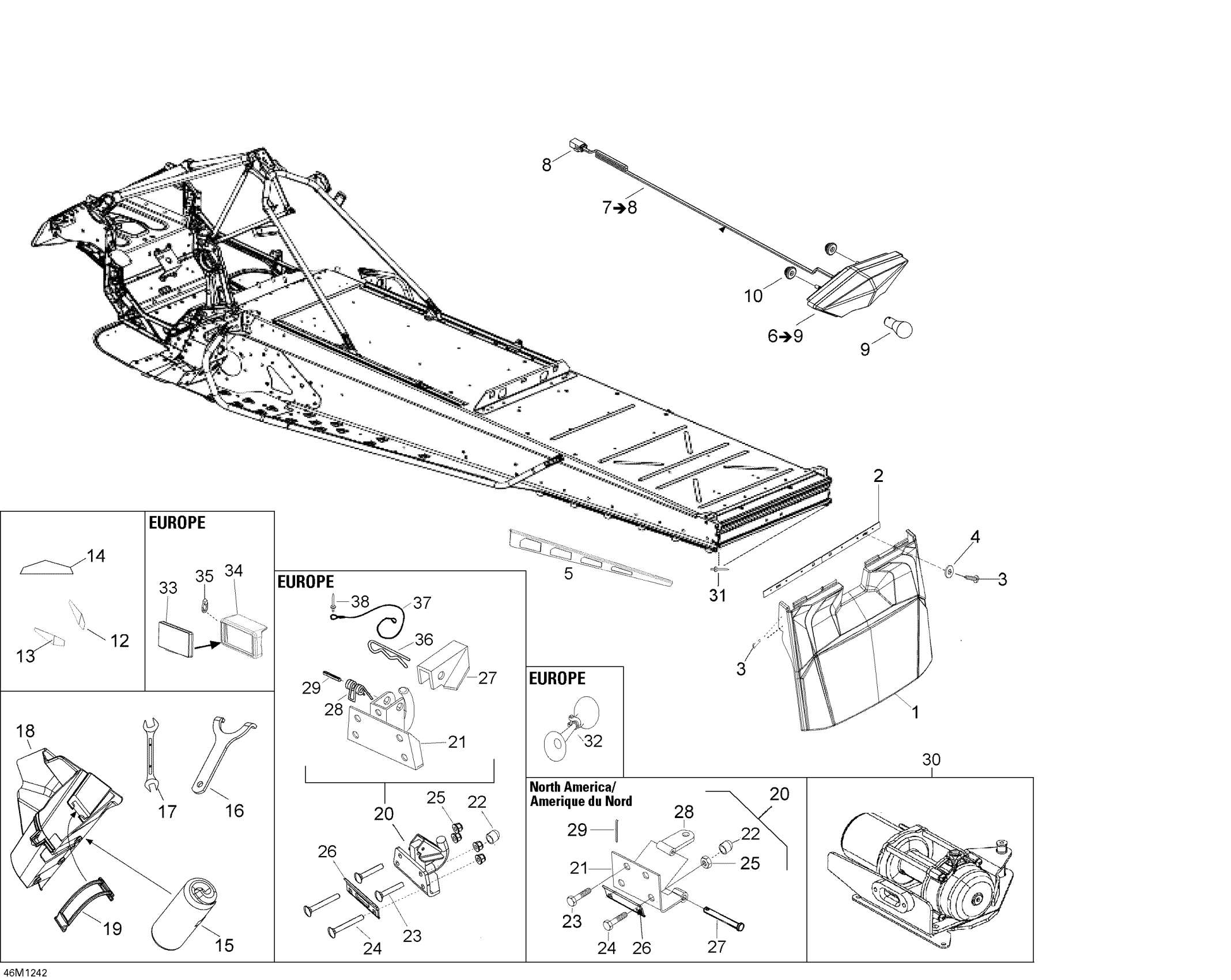

Ski-Doo Skandic WT 600HOETEC XU, 2012 Utilities Diagram

#

Description
Price

1

Black, Snow Guard Short

520001405

$81.99

1

Snow Guard

520001411

$109.99

2

Plate

520001021

$33.55

3

Forming Screw M5 x 16

250000676

$0.96

4

Washer M5

250200025

$0.70

5

RH Protector

520000693

$52.96

5

LH Protector

520000694

$52.96

6

Rear Light Ass'y

520000587

$101.46

7

Rear Wiring Harness

520000849

$49.22

8

Male Housing, 3 Circuits

515175494

$14.90

9

Bulb

520000758

$8.60

10

Stopper Rubber

705014429

$6.09

12

Yellow, RH Reflector

520001600

$30.57

13

Yellow, LH Reflector

520001601

$30.57

14

Amber, Lateral Reflector

705002423

$12.88

14

Red, Lateral Reflector

705003412

$12.88

15

Tool Kit | Includes 16 To 22

529000066

$46.99

16

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

19

Latch

520000528

$6.40

20

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.16

20

Hitch Ass'y | Includes 3600 to 3600a

520001398

$69.37

21

Not Available As Spare Part - Friction Washer

Unavailable

21

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$75.34

22

Cover | Model-T3

28056

$5.36

23

Carriage Bolt, M8 X 25 | XXC

207782544

$1.51

24

Bolt Carriage M8 X 40

207784044

$1.06

25

Hex. Flange Elastic Nut M8

233281414

$1.31

26

Plate

520000727

$32.81

27

LOCKING PLATE - Call your local BRP dealership | Model- EUROPE

520001041

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

28

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

29

Pin

41012

$5.06

29

Cotter Pin

41031

$6.07

30

WINCH KIT - Call your local BRP dealership | Includes 30 to 30,009

619400069

Unavailable

31

Rivet Hucklok

293150163

$2.73

32

Horn

549011291

$34.30

33

White Reflector | Model- EUROPE

M21118

Unavailable

34

Deep Black, Reflector Support

520000871

$5.13

35

Tie Rap 2.4x200 | Model- EUROPE

M27120

Unavailable

36

Hair pin

41029

$4.15

37

RETAINER CABLE - Call your local BRP dealership | Model- EUROPE

M5446839

Unavailable

38

Avex Rivet

390909100

$0.28
