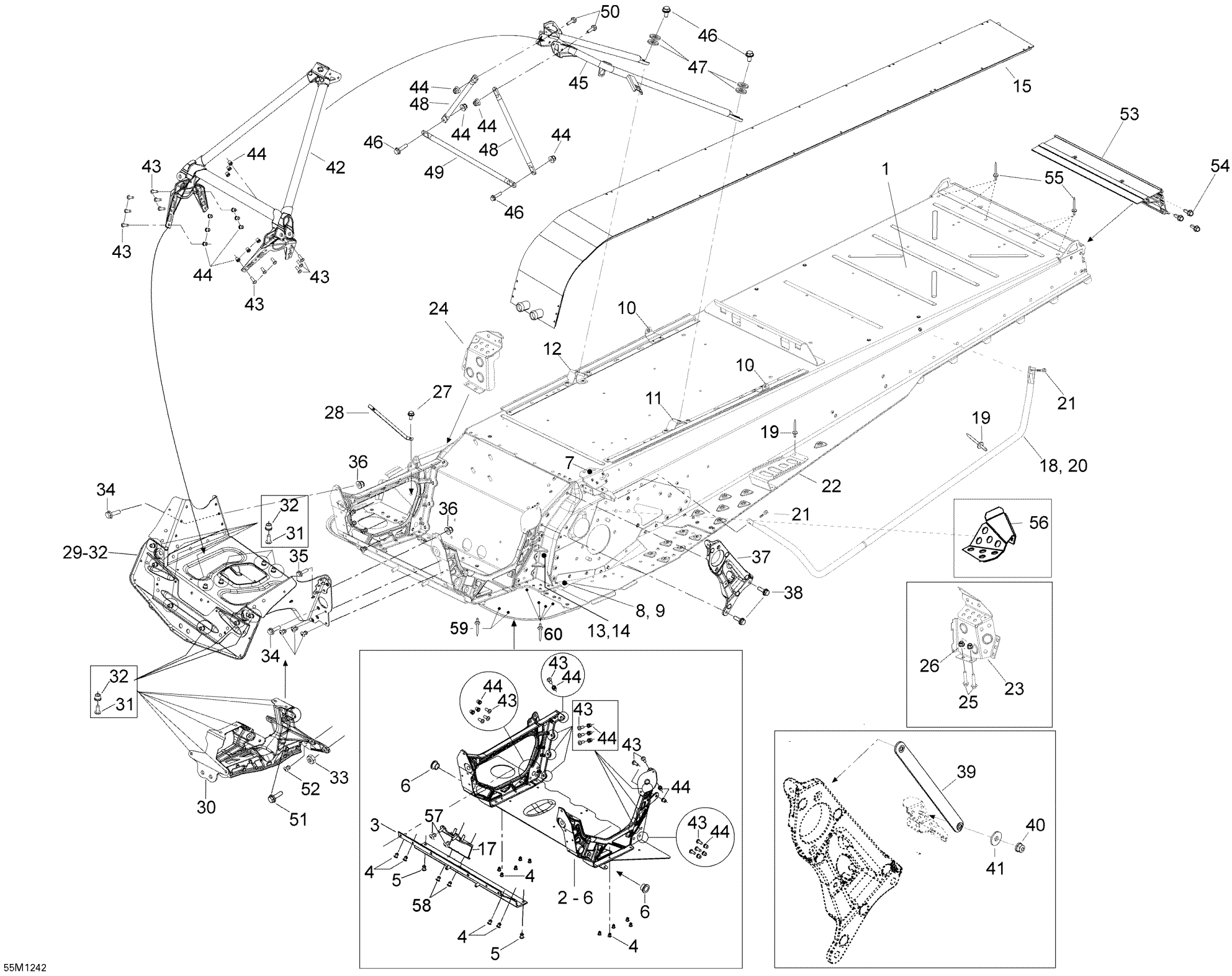

Ski-Doo Skandic WT 600HOETEC XU, 2012 Frame and Components Diagram

#

Description
Price

1

Frame XU E-TEC SC-5 | Includes 1 - 12

518326982

Unavailable

2

Module E | Includes 2 To 12

518328186

$880.57

3

Front Member

518326198

$58.18

4

Hemlock Rivet, 6.5 mm

293150119

$3.88

5

Hemlock Rivet 6.5 mm

293150120

$7.01

6

Leg Bushing

505072690

$5.75

7

Fastening Bracket

605355235

Unavailable

8

DRIVE AXLE COVER R.H. - Call your local BRP dealership

518326659

Unavailable

9

Drive Axle Cover L.H.

518326658

Unavailable

10

Seat Box Bracket

518325987

Unavailable

11

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

12

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

13

LH Frame Corner

518325524

$50.72

14

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

15

Radiator

509000975

$779.07

17

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

18

LH Footboard Support Tube

518326963

$123.10

19

Rivet Hucklok

293150163

$2.73

20

RH Footboard Support Tube

518326964

$123.10

21

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

22

Footrest

520000492

$17.88

23

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

24

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

25

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

27

Torx Screw M6 X 20

250000722

$1.54

28

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

29

Cross Member S Module | Includes 300a to 300b

518328320

$445.49

30

Front Suspension Support

518327487

$259.67

31

Hex. Flange Screw M6 X 20

207662044

$1.91

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

33

Hex. Flange Elastic Nut M8

233281414

$1.31

34

Hexagonal Head Screw

210262050

$2.00

35

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

PULLEY SUPPORT - Call your local BRP dealership

518327372

Unavailable

38

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

39

DRAFT BAR - Call your local BRP dealership | Optional

518326449

Unavailable

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

41

Flat Washer M8

234081430

$2.00

42

Front Member

518326970

$267.88

43

Hex. Flange Screw M6 X 20

207662044

$1.91

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

45

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

46

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Upper Lateral Column Support

518325114

$20.12

49

Center Column Support

518325115

$20.12

50

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

51

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

52

Ornit Rivet 6,5 X 14.5

293150266

$1.88

53

Rear Profile

518328748

$211.16

54

Hex Forming Screw DIN.7500D

250000376

$7.09

55

Hemlock Rivet, 6.4 mm

293150174

$6.24

56

Brake Hose Cover | Except Package SWT

518325626

$27.58

57

Hex. Flange Screw M6 X 16

207661644

$0.70

58

RIVET_HUCKLOK 6,4 MM HKLP-R8-6 - Call your local BRP dealership

293150164

Unavailable

59

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

60

Avex Rivet

390909200

$0.28
