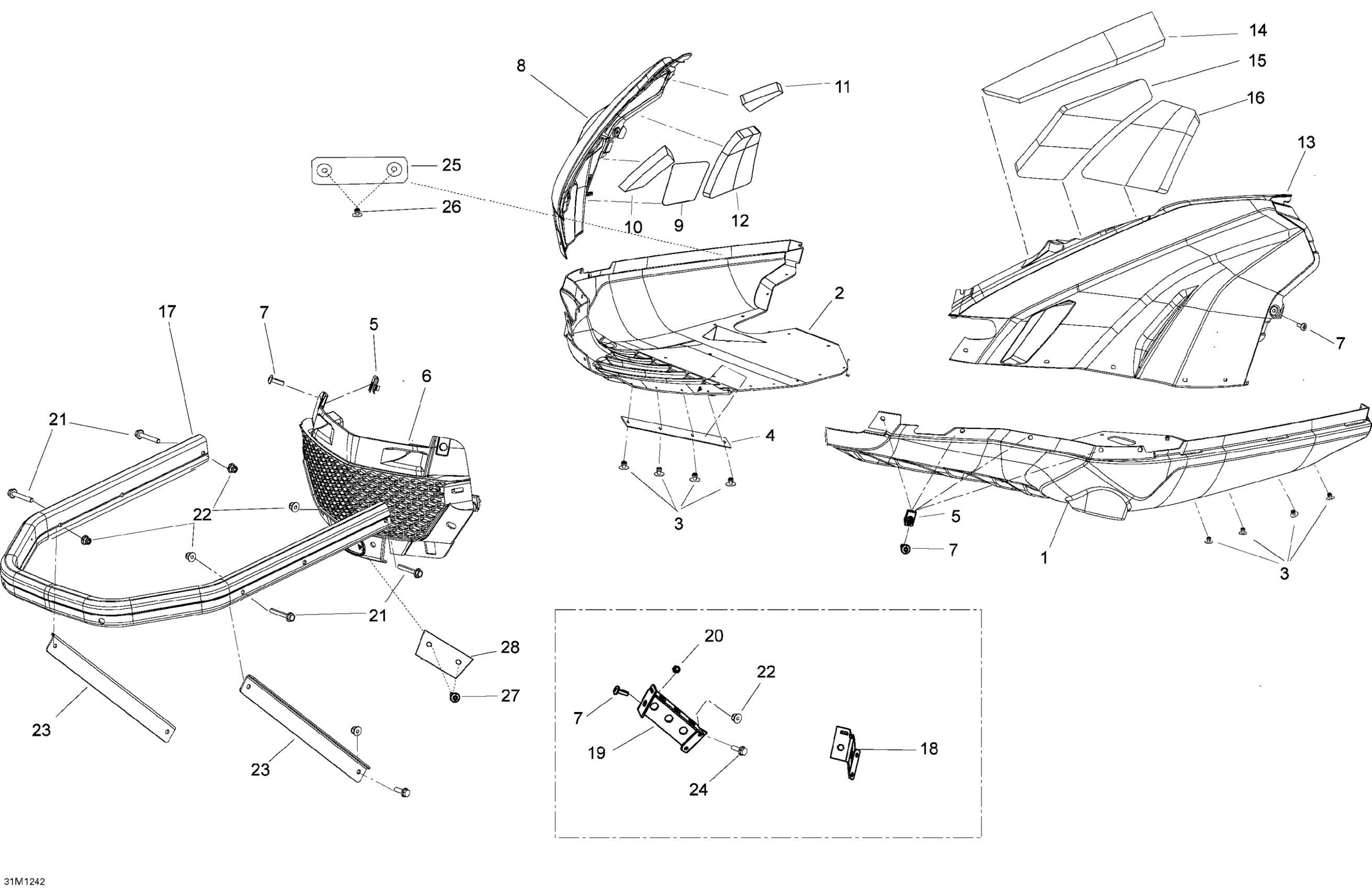

Ski-Doo Skandic WT 600HOETEC XU, 2012 09- Bottom Pan Diagram

#

Description
Price

1

LH Lower Bottom Pan

502007436

$194.99

2

BLACK BOTTOM-PAN LOWER RH. - Call your local BRP dealership

502006917

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

SUPPORT PLATE - Call your local BRP dealership

502007226

Unavailable

5

Panel Nut M6 X 1.0

250100198

$2.11

6

Front Grille

502007140

$89.99

7

Torx Screw M6 X 20

250000722

$1.68

8

Deep Black, RH Bottom Pan

502008015

$144.99

9

Insulator

502007133

$29.99

10

Insulator | Except Package EXTREME

502007009

$19.49

11

Insulator | Model LE, SE

502007008

$19.49

12

Insulator

502007132

$29.99

13

Deep Black, LH Bottom Pan

502008017

$139.99

14

Insulator

502007185

$28.99

15

Insulator

502007088

$67.99

16

Insulator

502007131

$29.99

17

Clear Bumper

502007170

$134.49

18

BOTTOM PAN FASTENER LH - Call your local BRP dealership This part replaces 502007137.

619690082

Unavailable

19

BOTTOM PAN FASTENER RH - Call your local BRP dealership This part replaces 502007138.

619690081

Unavailable

20

Clinch Nut M6 Hexsert

605636003

$4.23

21

Hex. Flange Screw M6 X 40

207664044

$2.22

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Bumper Support

502006927

$31.99

24

Hex. Flange Screw M6 X 20

207662044

$2.00

25

Heat Isolation Plate

502007255

$5.79

26

Rivet

36005

$2.11

27

Full Moon Dart 8 mm

293730041

$2.21

28

Not Available As Spare Part - Friction Washer

Unavailable
