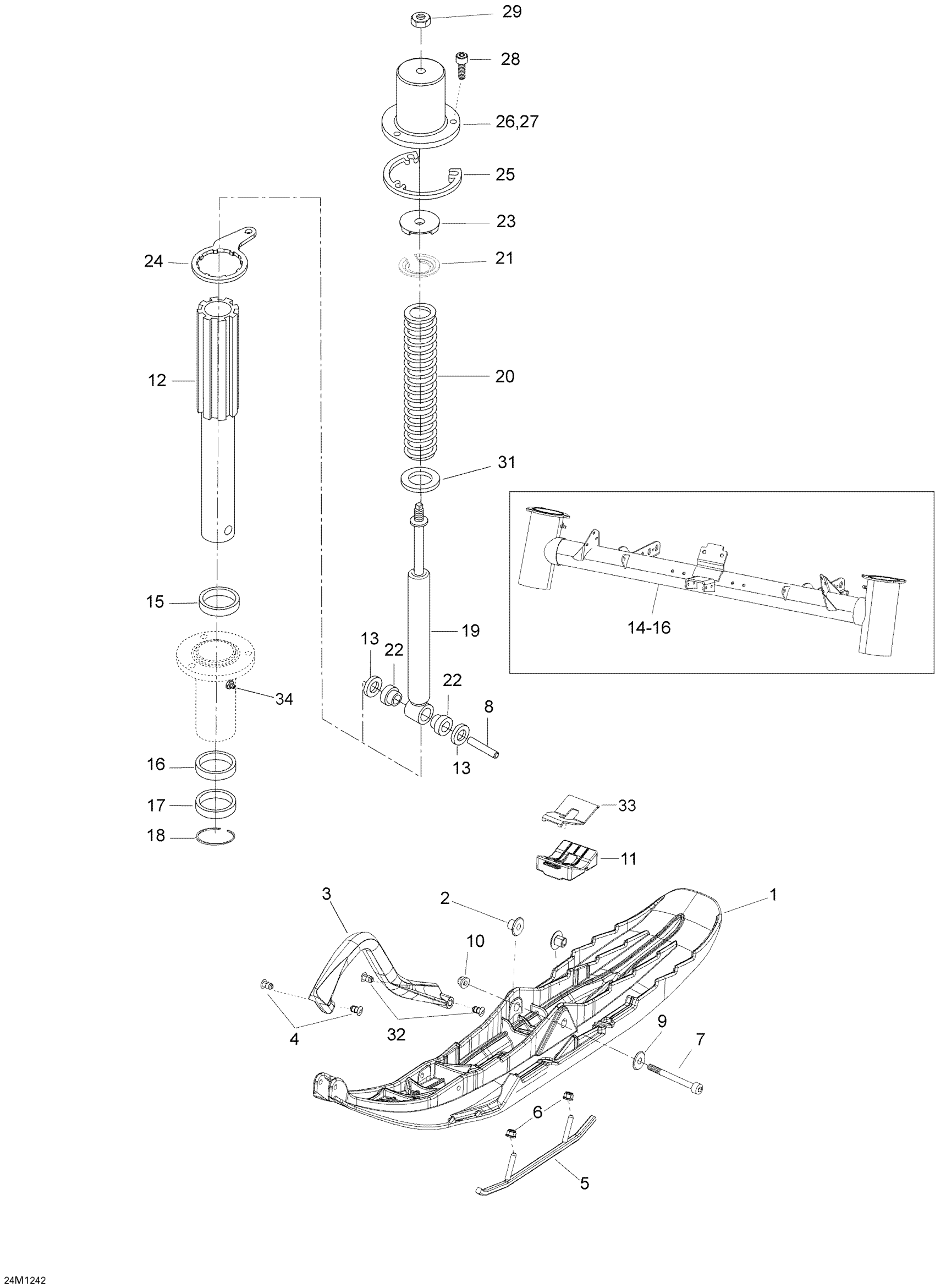

Ski-Doo Skandic WT 600HOETEC XU, 2012 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$170.12

1

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$170.12

2

Ski Bushing

505071781

$14.90

3

Black, Handle

505072976

$34.30

4

Retainer 17mm long

505071812

$4.30

5

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

6

Hex. Flange Elastic Nut M8

233281414

$1.31

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

8

Spacer

506133300

$19.37

9

Washer

732900049

$0.55

10

Hex. Flange Elastic Nut M10

233201414

$1.45

11

Ski Stopper

505072594

$17.13

12

Ski Leg

505072778

Unavailable

13

Spacer

505072579

$7.36

14-16

Module Ass'y | Includes 400 to 400d

505073967

$484.30

15

Upper Cushion

414803100

$8.16

16

Lower Cushion

414803200

$11.36

17

Seal Oil

505072696

$44.75

18

Circlip

505072698

$12.51

19

Shock

505073046

$152.96

20

Black, Spring

505072557

$64.90

21

Spring Stopper

505072619

$9.93

22

Cushion

572034500

$9.69

23

Rubber Bumber

605354835

$13.54

24

Steering Arm

505073171

$120.87

25

Spacer

505073983

$23.85

26

Suspension Cover LH

505072874

$125.34

27

Suspension Cover RH

505072875

$125.34

28

Socket Head Screw M8 X 20

205082044

$1.06

29

Hex. Flange Elastic Nut M10

233201414

$1.45

31

Washer

505072578

$12.18

32

Retainer 23mm Long

505072133

$4.88

33

SUPPORT PLATE - Call your local BRP dealership

505072799

Unavailable

34

Grease Fitting

408200700

$3.21
