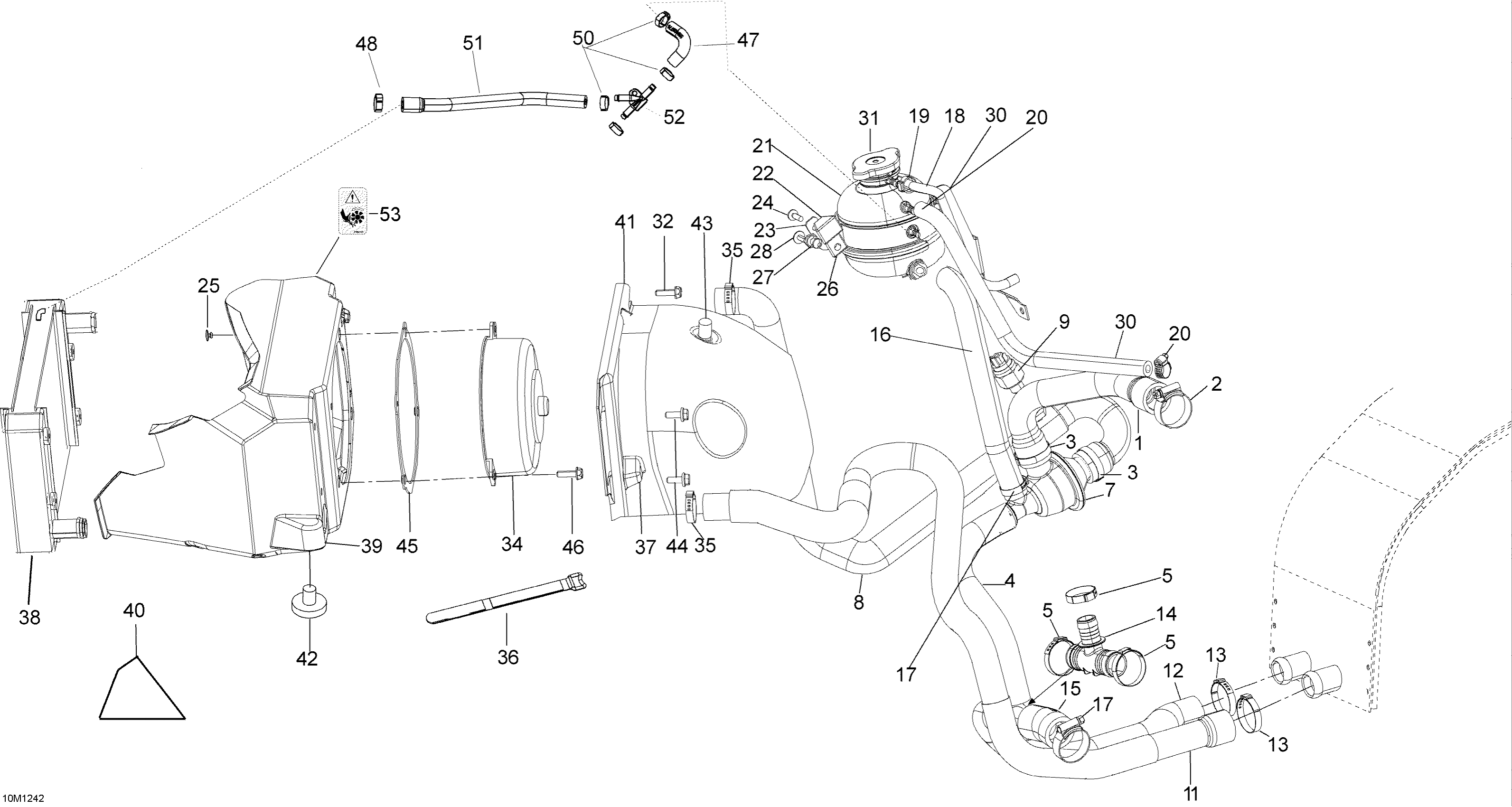

Ski-Doo Skandic WT 600HOETEC XU, 2012 01- Cooling System Diagram

#

Description
Price

1

Engine Outlet Hose

509000595

$16.33

2

Aba Gear Clamp, 26-38 MM

509000443

$12.72

3

Aba Gear Clamp, 26-38 MM

509000443

$12.72

4

Bypass Hose

509000523

$62.49

5

Aba Gear Clamp, 26-38 MM

509000443

$12.72

7

Thermostat Housing

509000499

$42.99

8

Hose Radiator

509000737

$158.99

9

Not Available As Spare Part - Friction Washer

Unavailable

11

Air Radiator Hose

509000588

$62.49

12

Return Radiator Hose

509000589

$42.49

13

Aba Gear Clamp, 26-38 MM

509000443

$12.72

14

T-Fitting

509000372

$10.33

15

Engine Inlet Hose This part replaces 509000675.

509001067

$17.53

16

Filling Hose

509000736

$35.99

17

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

18

Hose 6 Mm 15000Mm Long

219704360

$132.49

19

Tridon Gear Clamp

293650170

$1.99

20

Crimp Clamp, 15.3-706R

293650047

$3.29

21

Coolant Tank

509000368

$92.99

22

Reservoir support

509000852

$67.99

23

Support

509000609

$23.49

24

Torx Screw K50 X 16

250000720

$1.69

25

Rivet

36005

$2.11

26

Support

509000609

$23.49

27

Knob

517303439

$4.55

28

Torx Screw K50 X 16

250000720

$1.69

30

Hose 5.2 mm

509000599

Unavailable

31

Pressure Cap

509000187

$29.49

32

Hex. Flange Screw M6 X 20

210262040

$2.11

34

Fan

509000837

$200.99

35

Crimp Clamp

293650099

$4.29

36

Velcro Strip

508000820

$8.59

37

Bumper

508000572

$7.51

38

Radiator

509000756

$179.99

39

Cooling Fan Shroud

509001173

$25.99

40

Foam

509000615

$26.99

41

Deflector

509001174

$20.99

42

Rubber Bumper

570044700

$13.10

43

Clip

710000992

$4.29

44

Hex. Flange Screw M6 X 12

207661244

$2.11

45

Screw plate

509000614

$23.99

46

Hex. Flange Screw M6 X 20

210262040

$2.11

47

Formed Hose

509000792

Unavailable

48

Crimp Clamp

293650053

$3.09

49

Radiator

509000975

$826.49

49

Radiator

509000975

$826.49

50

Crimp Clamp, 15.3-706R

293650047

$3.29

51

Hose

509001070

$13.16

52

Y-Fitting

293710140

$8.11

53

Warning Decal | Europe

516003923

Unavailable
