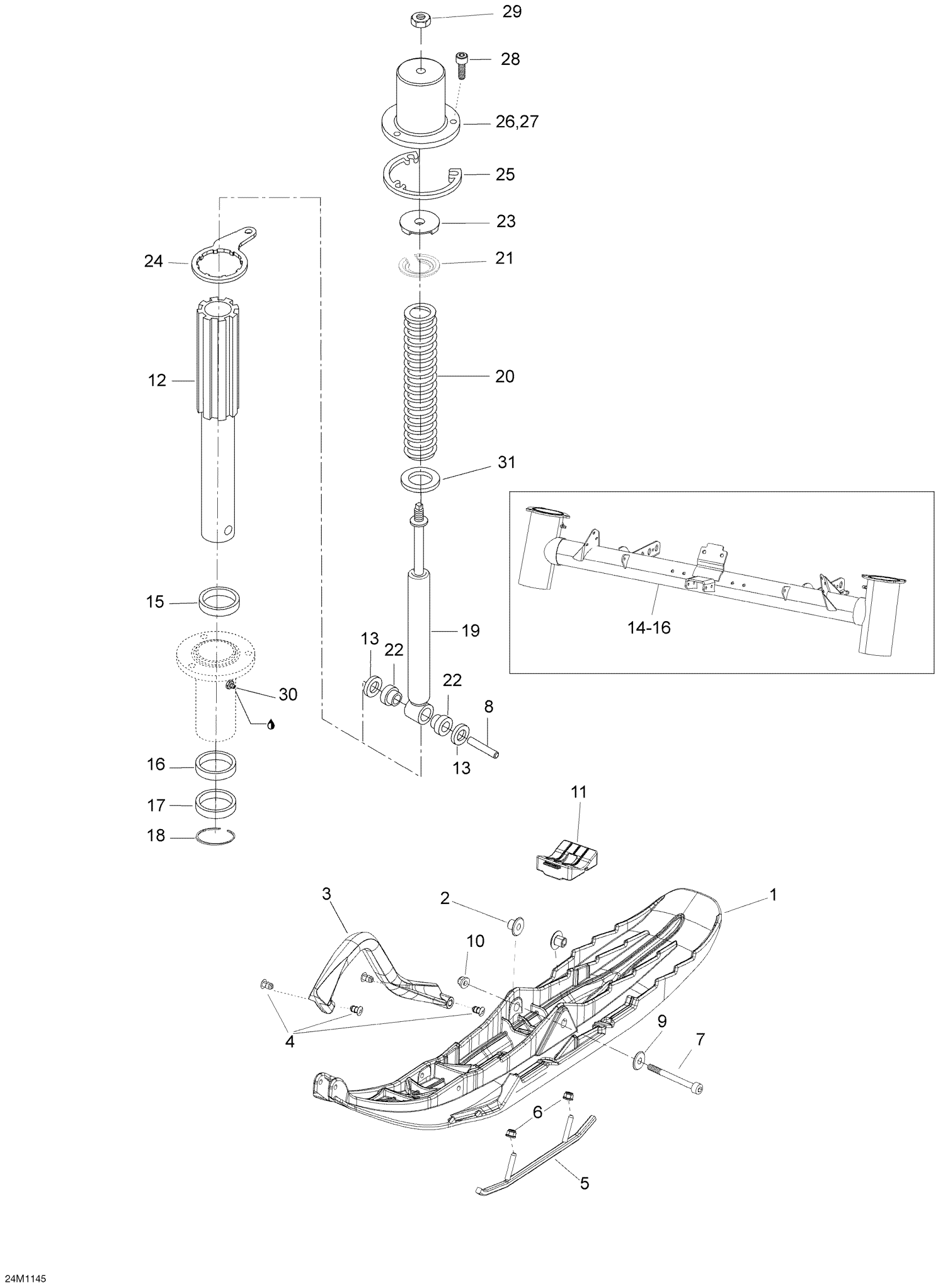

Ski-Doo Skandic WT 600HO ETEC, 2011 07- Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$179.99

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$179.99

2

Ski Bushing

505071781

$16.18

3

Black, Handle

505070963

$35.99

4

Retainer 17mm long

505071812

$5.95

5

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

8

Spacer

506133300

$23.99

9

Washer

732900049

$0.58

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Ski Stopper

505072594

$18.49

12

Ski Leg

505072778

$269.99

13

Spacer

505072579

$9.69

14-16

Module Ass'y | Includes 400 to 400d

505073967

$539.99

15

Upper Cushion

414803100

$10.49

16

Lower Cushion

414803200

$14.68

17

Seal Oil

505072696

$45.99

18

Circlip

505072698

$14.99

19

Shock

505073046

$164.49

20

Black, Spring

505072557

$67.99

21

Spring Stopper

505072619

$12.99

22

Cushion

572034500

$12.58

23

Rubber Bumber

605354835

$16.49

24

Steering Arm

505073171

$134.99

25

Spacer

505073983

$25.99

26

Suspension Cover LH

505072874

$139.99

27

Suspension Cover RH

505072875

$139.99

28

Socket Head Screw M8 X 20

205082044

$1.15

29

Hex. Flange Elastic Nut M10

233201414

$1.58

30

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

31

Washer

505072578

$14.22
