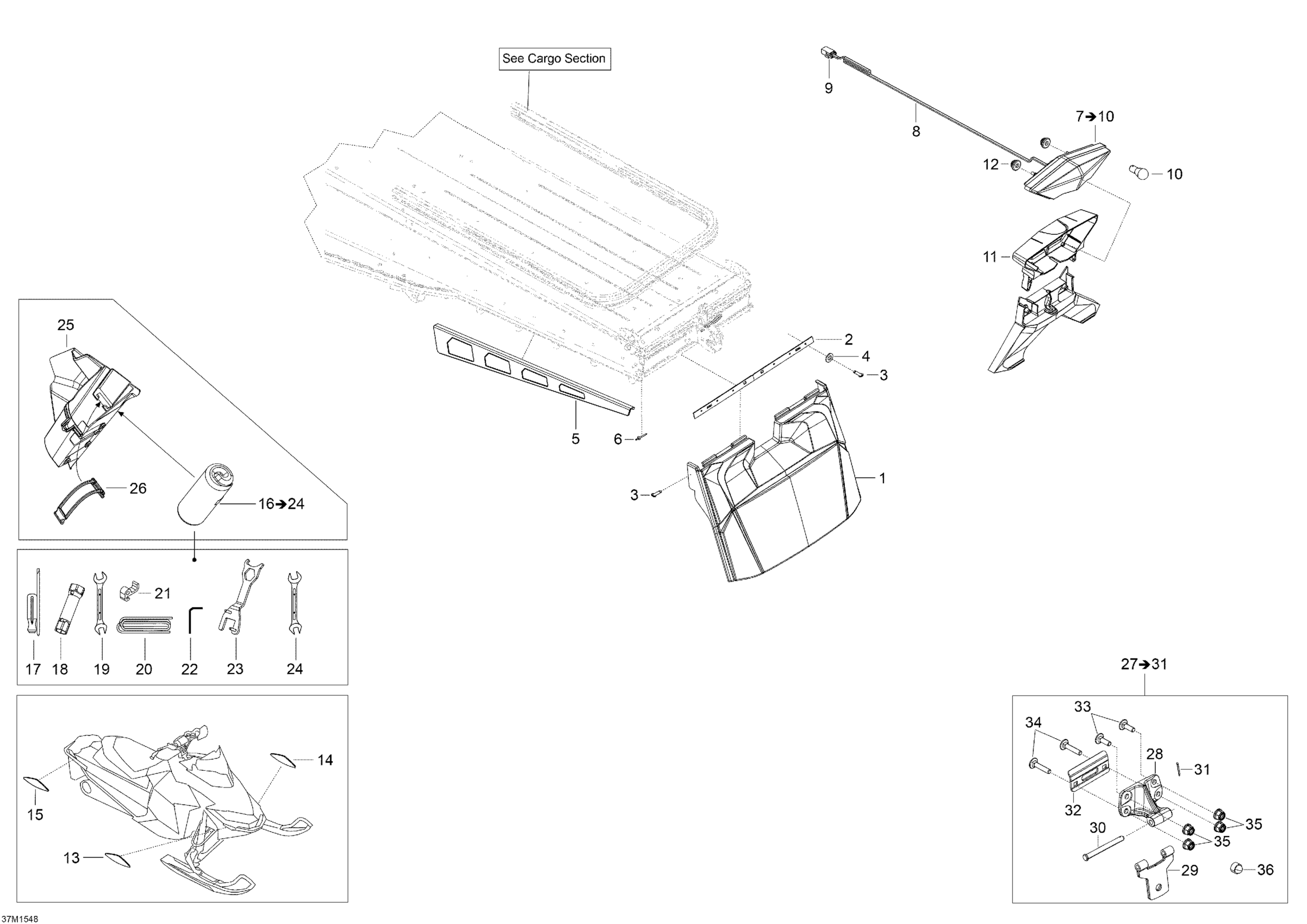

Ski-Doo Skandic WT 600 E-TEC, 2015 09- Utilities _37M1548 Diagram

#

Description
Price

1

Black, Snow Guard Short

520001405

$79.99

2

Plate

520001021

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

9

Male Housing, 3 Circuits

515175494

$16.18

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

13

Yellow, RH Reflector

520001600

$33.99

14

Yellow, LH Reflector

520001601

$33.99

15

Red, Lateral Reflector

705003412

$15.49

16

Tool Kit | Includes 20 To 28

529000065

$55.99

17

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

18

Set Key, 16/21 mm

529000046

$14.49

19

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

20

Was 412500100 Rope-Starter

219704403

$158.99

21

Starter Grip

529000060

$14.15

22

Spacing Tool

520001142

$10.52

23

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

24

Wrench

34017

Unavailable

25

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

26

Latch

520000528

$7.69

27

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

31

Cotter Pin

41031

$7.65

32

Plate

520000727

$36.99

33

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

34

Bolt Carriage M8 X 40

207784044

$1.15

35

Hex. Flange Elastic Nut M8

233281414

$1.47

36

Cover | Model-T3

28056

$5.89
