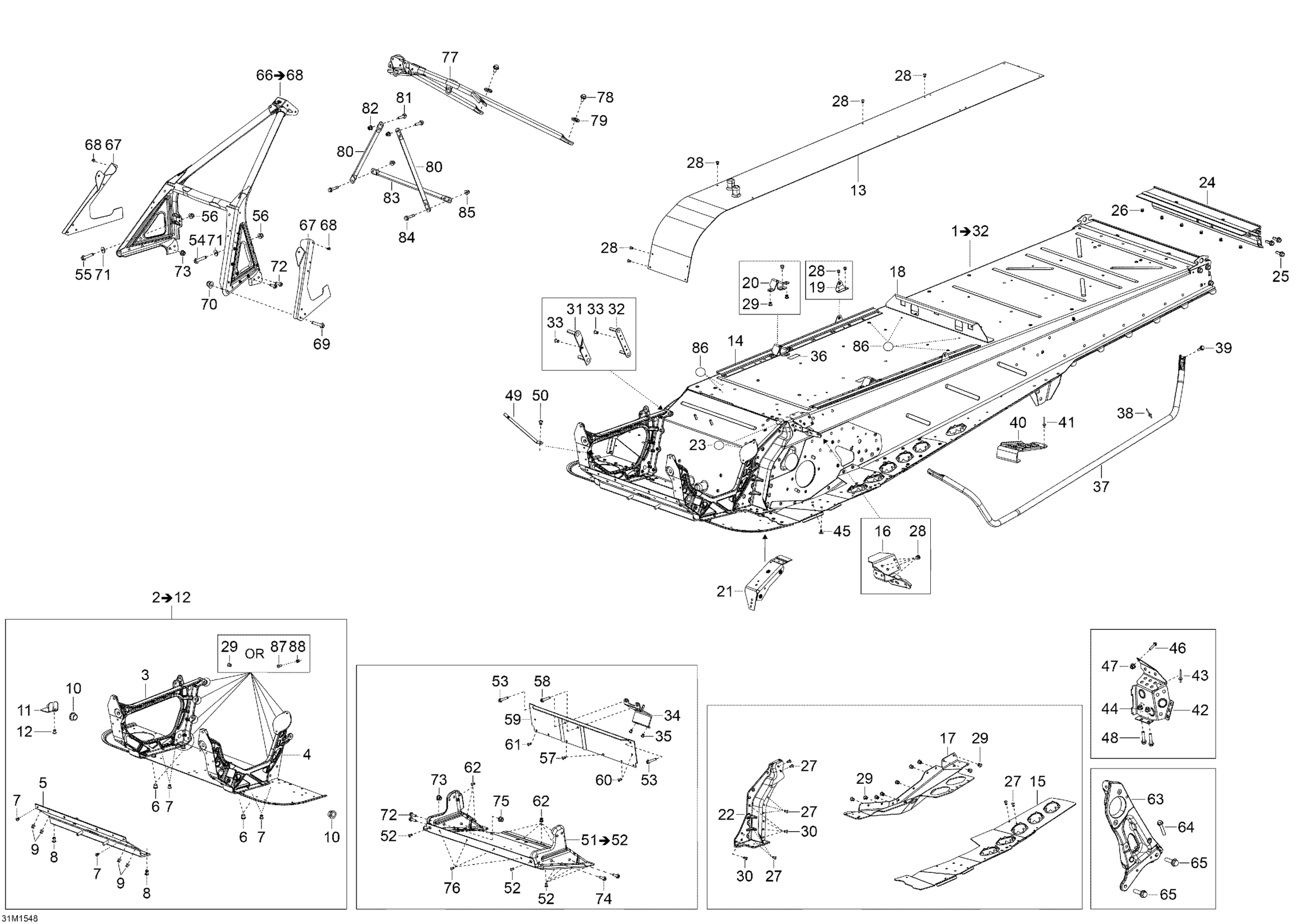

Ski-Doo Skandic WT 600 E-TEC, 2015 Frame _31M1548 Diagram

#

Description
Price

1

Frame | Includes 1 To 30

518328201

Unavailable

2

Module E | Includes 2 To 12

518328186

$907.66

3

RH Member

518326795

$259.97

4

LH Member

518326796

$210.74

5

Front Member

518326198

$59.97

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Leg Bushing

505072690

Unavailable

11

Muffler Support

518328194

$16.89

12

Rivet Hucklok

293150163

$2.82

13

Radiator

509000975

$803.05

14

Fastening rail

518326107

$15.35

15

FOOTREST LH - Call your local BRP dealership

518326895

Unavailable

15

FOOTREST RH - Call your local BRP dealership

518326896

Unavailable

16

Fastening Bracket

605355235

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

19

Seat Box Bracket

518327457

$29.97

20

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$45.99

22

LH Frame Corner

518325524

$52.28

22

RH Frame Corner

518328024

$52.28

23

Adhesive Patch

518325560

$4.34

24

Rear Profile

518328748

$217.66

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

26

Hemlock Rivet, 6.4 mm

293150174

$6.43

27

Avex Rivet

390909100

$0.29

28

Avex Rivet

390909200

$0.29

29

Hemlock Rivet, 6.5 mm

293150119

$4.00

30

Rivet

293150183

$2.06

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$15.26

33

Pop Rivet 3/16"

390402200

$0.26

34

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

35

Hemlock Rivet, 6.5 mm

293150119

$4.00

36

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

37

LH Footboard Support Tube

518326963

$126.89

37

RH Footboard Support Tube

518326964

$126.89

38

Avex Rivet

390909100

$0.29

39

Hex. Flange Screw M6 x 20

207662056

$0.98

40

Footrest

520000492

$18.43

41

Avex Rivet

390909100

$0.29

42

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

42

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

43

Avex Rivet

390909200

$0.29

44

Clinch Nut M6 Hexsert

605636003

$4.12

45

Black, Dart

414644300

$0.78

46

Hex. Flange Screw M6 x 20

207662056

$0.98

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

48

Torx Screw M6 X 16

250000223

$1.74

49

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

50

Avex Rivet

390909100

$0.29

51

S Module | Includes 300 to 300a

518326213

$776.12

52

Avex Rivet

390909200

$0.29

53

Hexagonal Head Screw

210262050

$1.74

54

Hex. Flange Screw M6 X 25

207662544

$0.53

55

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

57

Hemlock Rivet, 6.5 mm

293150119

$4.00

58

Hex. Flange Screw M6 X 16

207661644

$0.61

59

SUPPORT PLATE - Call your local BRP dealership

518325620

Unavailable

60

Avex Rivet

390909100

$0.29

61

Rivet Hucklok

293150163

$2.82

62

Avex Rivet

390909200

$0.29

63

Pulley Support

518328434

$130.74

64

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

65

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

66

Front Member Ass'y | Includes 700 to 700d

518326754

$674.58

67

LH Bumper Fastener

502007077

$53.05

67

RH Bumper Fastener

502007078

$53.05

68

Avex Rivet

390909200

$0.29

69

Hex. Flange Screw M6 X 20

207662044

$1.66

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

71

Flat Washer

224061201

$1.11

72

Hex. Flange Screw M6 X 20

207662044

$1.66

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

74

Hex. Flange Screw M6 X 20

207662044

$1.66

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

76

Avex Rivet

390909200

$0.29

77

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

78

Hex. Flange Screw M6 x 20

207662056

$0.98

79

Not Available As Spare Part - Friction Washer

Unavailable

80

Upper Lateral Column Support

518325114

$20.74

81

Hex. Flange Screw M6 x 20

207662056

$0.98

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

83

Center Column Support

518325115

$20.74

84

Hex. Flange Screw M6 X 25

207662556

$3.61

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

86

Adhesive Patch

518325560

$4.34

87

Hex. Flange Screw M6 X 20

207662044

$1.66

88

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
