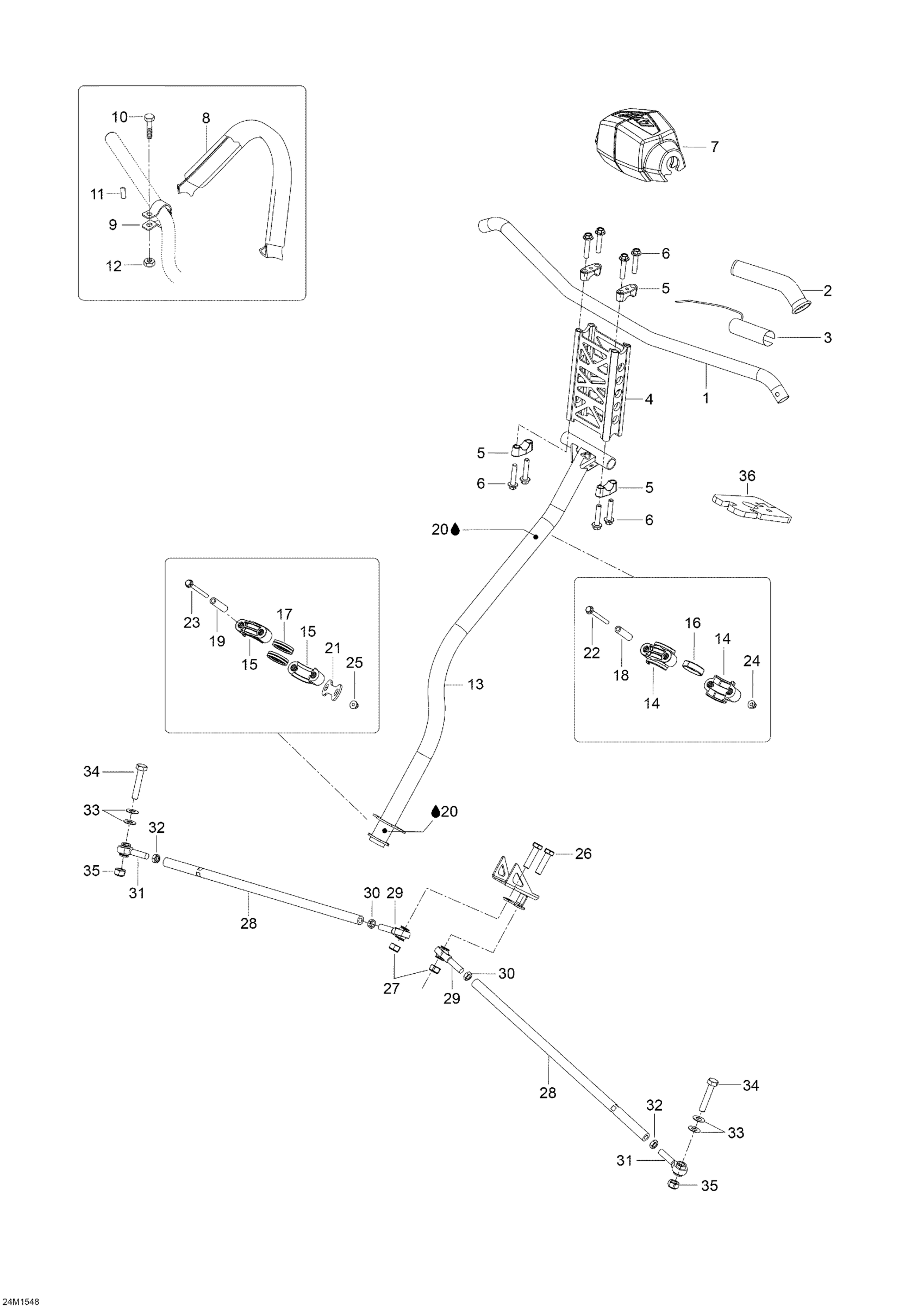

Ski-Doo Skandic WT 600 E-TEC, 2015 07- Steering _24M1548 Diagram

Handle Bar

506152722

$148.49

Grip | WAKE This part replaces M5340464.

506152483

$12.17

Heated Film, 25W

506152428

$39.99

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

Steering Support | Includes 40 to 40a

506152751

$13.99

Hex. Flange Screw M8 x 40

250000285

$0.82

Deep Black, Steering Pad

506152541

$41.99

Strap Ass'y | Package XMR

506152115

$44.49

Black Support Plate

506152536

$9.19

Hex. Flange Screw M6 X 20

207662054

$1.01

Bushing | Package XMR

506152156

$5.61

Hex. Flange Elastic Nut M6

233261494

$1.58

Steering Column

506152962

$199.99

Upper Half-Housing

506152508

$9.23

Lower Half-Housing

506152217

$7.62

Upper Anti-Vibration Gasket

506152509

$4.79

Lower Vibration Ring

506152518

$4.79

Housing Bushing

506152297

$12.99

Lower Housing Bushing

506152388

$17.39

Not Available As Spare Part - Friction Washer

Unavailable

Stopper Plate

506152389

$12.99

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Screw, M8 X 65

207686544

$13.16

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Screw M10 X 40

207004044

$4.76

Elastic Stop Nut M10

232500416

$1.90

Tie Rod

506152436

$62.49

LH Thread Ball Joint

506152081

$41.49

LH Threaded Hex. Jam Nut M10

250100016

$0.74

RH Threaded Ball Joint

506152019

$41.49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

Washer

506152194

$4.55

Hex. Screw M10 X 45

207004544

$1.69

Elastic Stop Nut M10

232500416

$1.90

Cushion

506152404

$26.49
