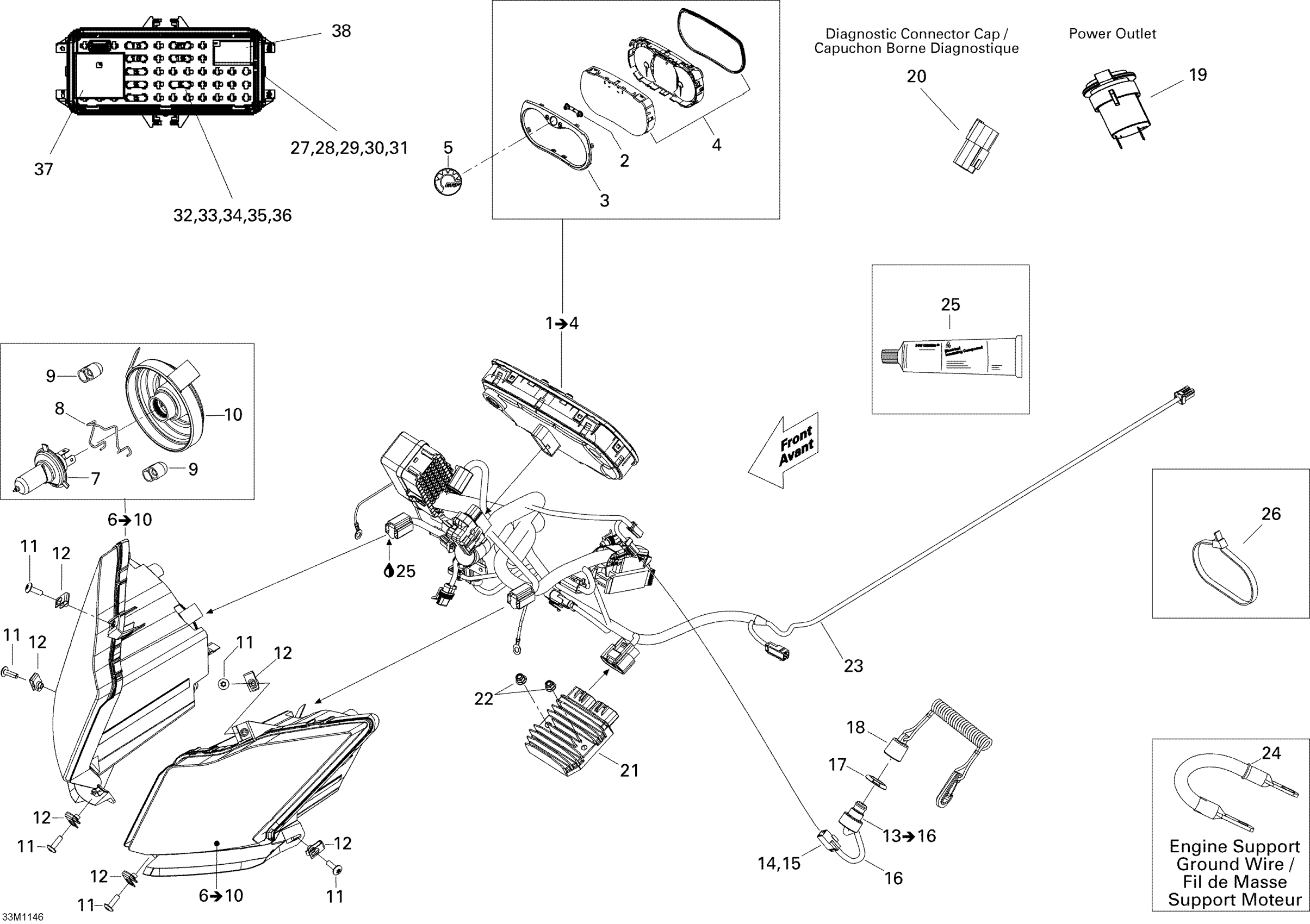

Ski-Doo Skandic WT 600 ACE XU, 2011 10- Electrical System Diagram

Indicator

515177911

$549.99

Speedometer Button | XTP

415129355

$15.80

Gauge Ring

415129348

$13.99

Lens | XTP

415129349

$24.49

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

Cap

515176498

$12.99

Rubber Cap Protector

219800280

$19.49

Torx Screw M6 X 20

250000722

$1.68

Lever Axle

417223164

$4.49

DESS Switch

515177249

$114.99

Male Terminal

515175232

$1.58

Male Housing, 3 Circuits

515175494

$16.18

Not Available As Spare Part - Friction Washer

Unavailable

Safety Nut (DESS Switch)

278002963

$3.28

DESS

515178284

$84.99

DC Outlet

710001248

$37.99

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

WIRING HARNESS - Call your local BRP dealership

515176932

Unavailable

Ground Wire

515176883

$28.99

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

Fuse Puller

710000781

$8.09

Fuse Cover

710001026

$21.99

Not Available As Spare Part - Friction Washer

Unavailable

Foam

278002172

$5.89

Fuse Box Base Ass´y

415129856

$50.99

Little Fuse, 5 Amperes

710000742

$8.79

Little Fuse, 7.5 Amperes

710000743

$8.49

Little Fuse, 10 Amperes

710000744

$8.79

Little Fuse, 15 Ampere

710000745

$8.49

Little Fuse, 30 Amperes

710000747

$8.49

Relay, 50 AMP

515176775

$15.79

Relay, 30 AMP

515176774

$21.99
