Description

Price

1

Torx Flange Screw M6 X 30

420440647

$2.00

2

Electric Starter Ass'y

420892435

$297.99

3

Starter Relay

515176011

$62.49

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Battery Wire

515176778

$58.99

7

Ground Wire

515176777

$62.99

8

HOUSING - Call your local BRP dealership

M28015

Unavailable

9

Battery Wire

515176945

$60.99

10

Protector Cap

710000495

$10.99

11

Battery | Includes 900 to 900a

515176151

$219.99

12

Battery Bolt Kit

250000282

$7.29

13

Battery Cover

510005079

$19.49

14

Battery Strap

510005143

$78.99

15

Battery Support

515176804

$78.99

16

Strap Cover

510005146

$28.99

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

18

Flat Washer 6 mm

234061410

$1.36

19

Elastic Stop Nut M6

232561414

$0.55

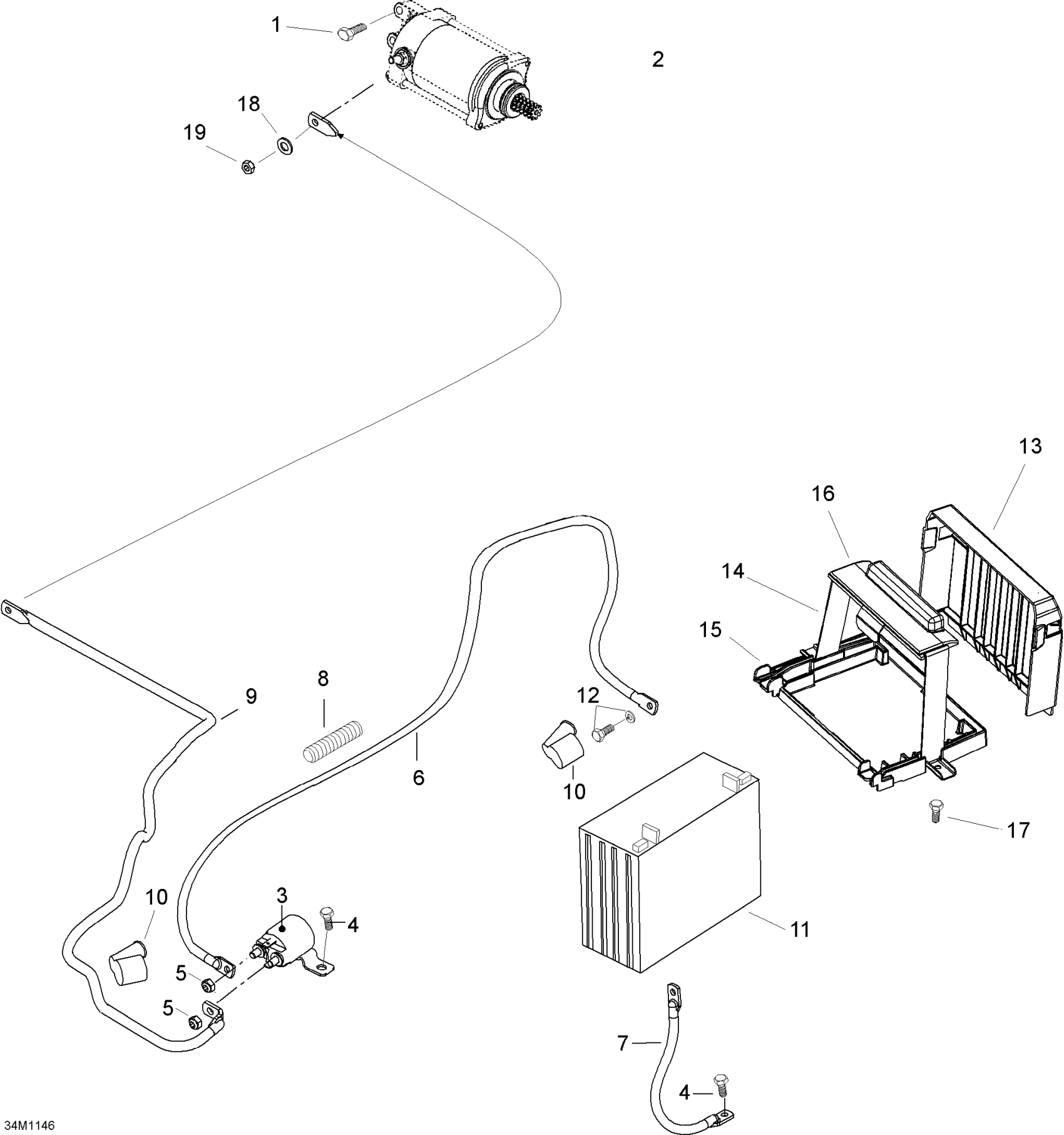

Ski-Doo Skandic WT 600 ACE XU, 2011 10- Battery And Starter Diagram

Torx Flange Screw M6 X 30

Electric Starter Ass'y

Starter Relay

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Elastic Nut M6 x 1.0

Battery Wire

Ground Wire

HOUSING - Call your local BRP dealership

Battery Wire

Protector Cap

Battery | Includes 900 to 900a

Battery Bolt Kit

Battery Cover

Battery Strap

Battery Support

Strap Cover

Hex. Flange Screw M6 X 16, Scotch Grip

Flat Washer 6 mm

Elastic Stop Nut M6
