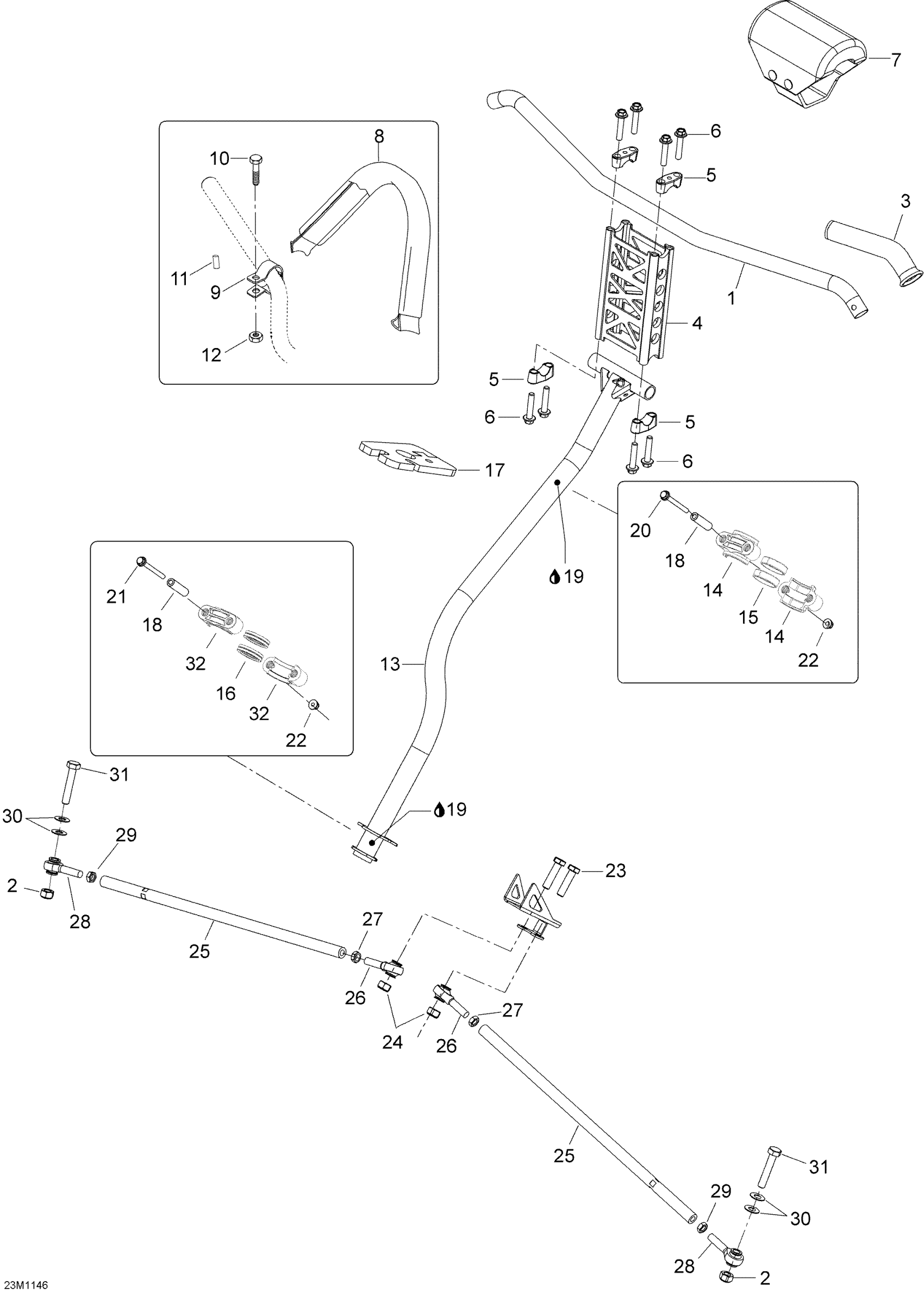

Ski-Doo Skandic WT 600 ACE XU, 2011 Steering Diagram

#

Description
Price

1

Handle Bar

506152722

$145.35

2

Elastic Stop Nut M10

232500416

$1.56

3

Grip | WAKE This part replaces M5340464.

506152483

$9.85

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.99

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Hex. Flange Screw M8 x 40

250000285

$0.77

7

Steering Pad

506152192

$54.58

8

Strap Ass'y | Package XMR

506152115

$43.05

9

Black Support Plate

506152536

$8.60

10

Hex. Flange Screw M6 X 20

207662084

$0.83

11

Bushing | Package XMR

506152156

$5.35

12

Hex. Flange Elastic Nut M6

233261494

$1.26

13

Steering Column

506152964

Unavailable

14

Upper Half-Housing

506152508

$7.40

15

Upper Anti-Vibration Gasket

506152509

$4.52

16

Lower Vibration Ring

506152518

$4.52

17

Cushion

506152404

$25.35

18

Lower Housing Bushing

506152388

$15.26

19

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

20

Hex. Flange Screw M6 X 70

207667056

$3.61

21

Hex. Flange Screw, M8 X 65

207686544

$9.74

22

Hex. Screw M10 X 40

207004044

$4.65

23

Hex. Screw M10 X 40

207004044

$4.65

24

Elastic Stop Nut M10

232500416

$1.56

25

Tie Rod

506152436

$59.97

26

LH Thread Ball Joint

506152081

$39.97

27

LH Threaded Hex. Jam Nut M10

250100016

$0.72

28

RH Threaded Ball Joint

506152019

$39.97

29

RH Threaded Hex. Jam Nut M10

732610010

$0.72

30

Washer

506152194

$4.42

31

Hex. Screw M10 X 45

207004544

$1.65

32

Lower Half-Housing

506152217

$5.57
