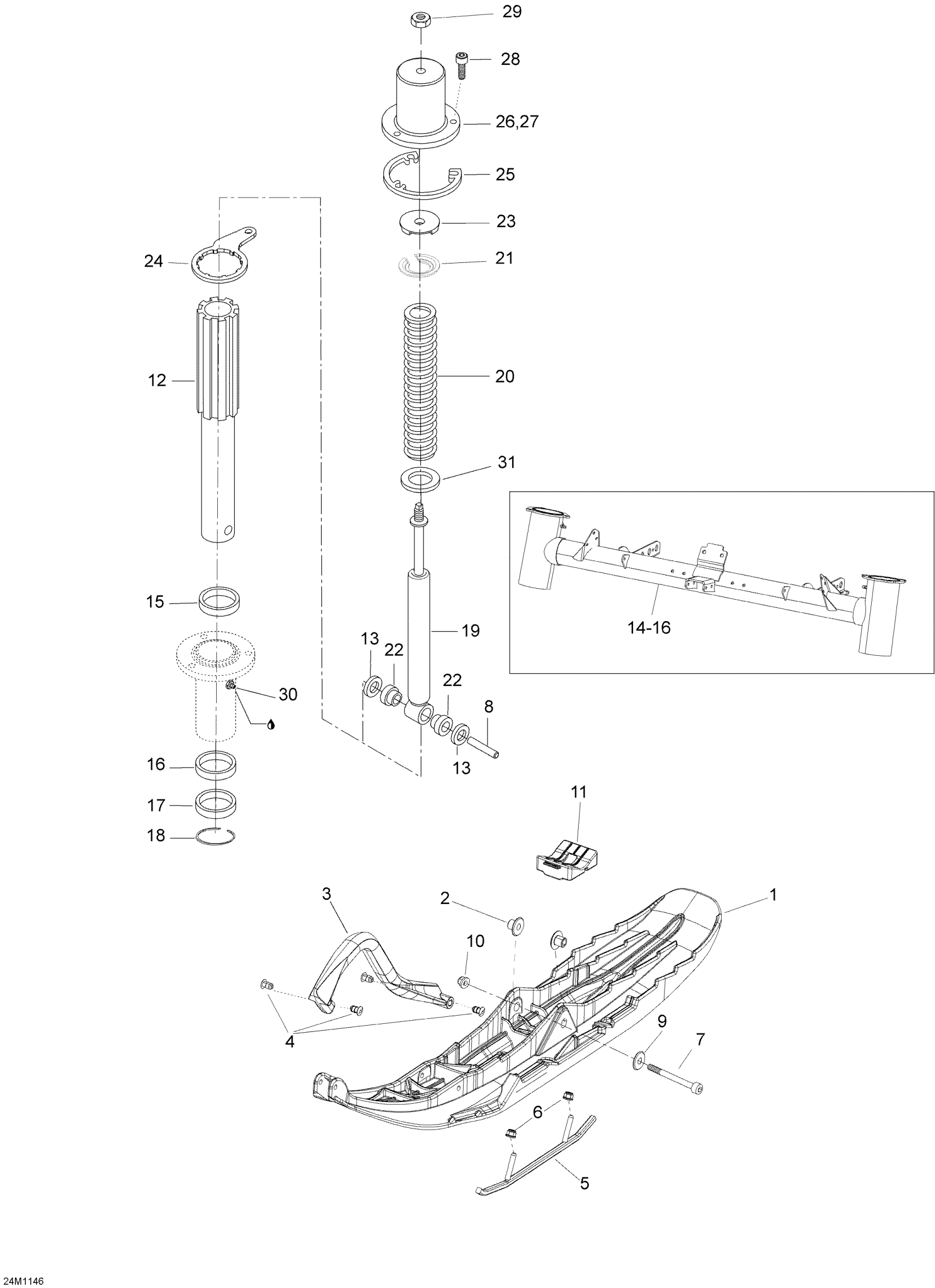

Ski-Doo Skandic WT 600 ACE XU, 2011 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$175.35

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$175.35

2

Ski Bushing

505071781

$15.35

3

Black, Handle

505070963

$35.35

4

Retainer 17mm long

505071812

$4.43

5

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

6

Hex. Flange Elastic Nut M8

233281414

$1.14

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

8

Spacer

506133300

$19.97

9

Washer

732900049

$0.57

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

Ski Stopper

505072594

$17.66

12

Ski Leg

505072778

Unavailable

13

Spacer

505072579

$7.58

14-16

Module Ass'y | Includes 400 to 400d

505073967

$499.20

15

Upper Cushion

414803100

$8.42

16

Lower Cushion

414803200

$11.71

17

Seal Oil

505072696

$46.12

18

Circlip

505072698

$12.89

19

Shock

505073046

$157.66

20

Black, Spring

505072557

$66.89

21

Spring Stopper

505072619

$10.23

22

Cushion

572034500

$9.98

23

Rubber Bumber

605354835

$13.95

24

Steering Arm

505073171

$124.58

25

Spacer

505073983

$24.58

26

Suspension Cover LH

505072874

$129.20

27

Suspension Cover RH

505072875

$129.20

28

Socket Head Screw M8 X 20

205082044

$1.09

29

Hex. Flange Elastic Nut M10

233201414

$1.26

30

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

31

Washer

505072578

$12.55
