Description

Price

-

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2.00

1

Counter Shaft Ass'y | Gear Box 2.30

619230044

$614.49

2

Oil seal

619230010

$18.49

3

Main Shaft Ass'Y This part replaces 619230045.

619230062

$593.49

4

Reverse Shaft Ass'y (Slow Ratio) | Gear Box 2.30

619230073

$614.49

5

Fork, Forwards

619230055

$149.99

6

Fork, reverse

619230015

$209.99

7

Shaft

619230016

$30.49

8

Spring

619230017

$16.99

9

Shifting Drum

619230056

$209.99

10

Oil seal This part replaces 619230052.

619230019

$20.49

11

Bushing

619230020

$11.54

12

Locking lever

619230021

$56.99

13

Middle gear

619230022

$239.99

14

Lower gear

619230023

$439.99

15

Magnetic Cap

504152821

Unavailable

16

COVER, OUTSIDE (RH) - Call your local BRP dealership

619230025

Unavailable

17

Cover Lh (Inside) This part replaces 619230067.

619230075

$379.99

18

Oil Plug

619230027

$41.49

19

O-Ring

619230028

$4.44

20

Screw

619230029

$5.40

21

Washer

619230030

$8.04

22

Oil seal

619230031

$20.49

23

SCREW M6 X 20 - Call your local BRP dealership

619230033

Unavailable

24

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

25

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

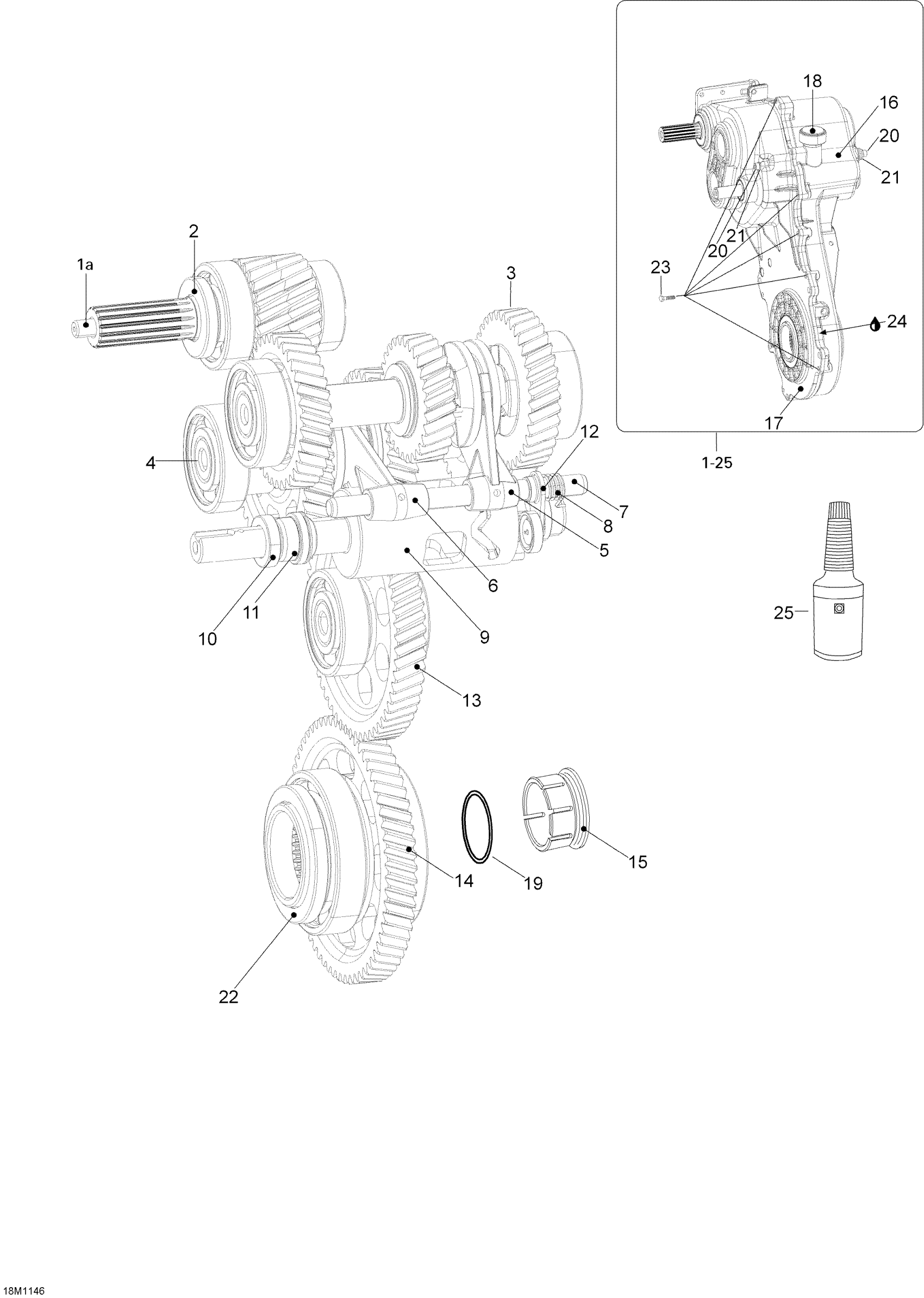

Ski-Doo Skandic WT 600 ACE XU, 2011 05- Transmission Diagram

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

Counter Shaft Ass'y | Gear Box 2.30

Oil seal

Main Shaft Ass'Y This part replaces 619230045.

Reverse Shaft Ass'y (Slow Ratio) | Gear Box 2.30

Fork, Forwards

Fork, reverse

Shaft

Spring

Shifting Drum

Oil seal This part replaces 619230052.

Bushing

Locking lever

Middle gear

Lower gear

Magnetic Cap

COVER, OUTSIDE (RH) - Call your local BRP dealership

Cover Lh (Inside) This part replaces 619230067.

Oil Plug

O-Ring

Screw

Washer

Oil seal

SCREW M6 X 20 - Call your local BRP dealership

Sealing Compound Loctite 5366 310Ml

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
