Description

Price

1

Exhaust Manifold

514054673

$73.99

2

Gasket

514055112

$6.79

3

Socket Head Screw M8 X 22

250000414

$2.11

4

Washer

250200111

$2.11

5

Welded Tube

514054733

$97.49

6

Welded Tube

514054734

$97.49

7

Exhaust Gasket

514054807

$17.39

8

Spring

514054226

$6.35

9

Muffler Ass'y | Includes 400 to 400h

514055370

$974.99

10

RH Heat Shield

514055325

$53.99

11

LH Heat Shield

514054645

$53.99

12

INSULATING WOOL - Call your local BRP dealership

514054256

Unavailable

13

INSULATING WOOL - Call your local BRP dealership

514054257

Unavailable

14

Pop Rivet 3/16”

390910000

$0.57

15

Spring Bracket

514054522

$8.45

16

Avex Rivet

390909200

$0.30

17

Spring Bracket

514055030

$13.10

18

Avex Rivet

390909100

$0.30

19

Upper Stopper

514054737

$14.16

20

Lower Stopper

514054529

$18.49

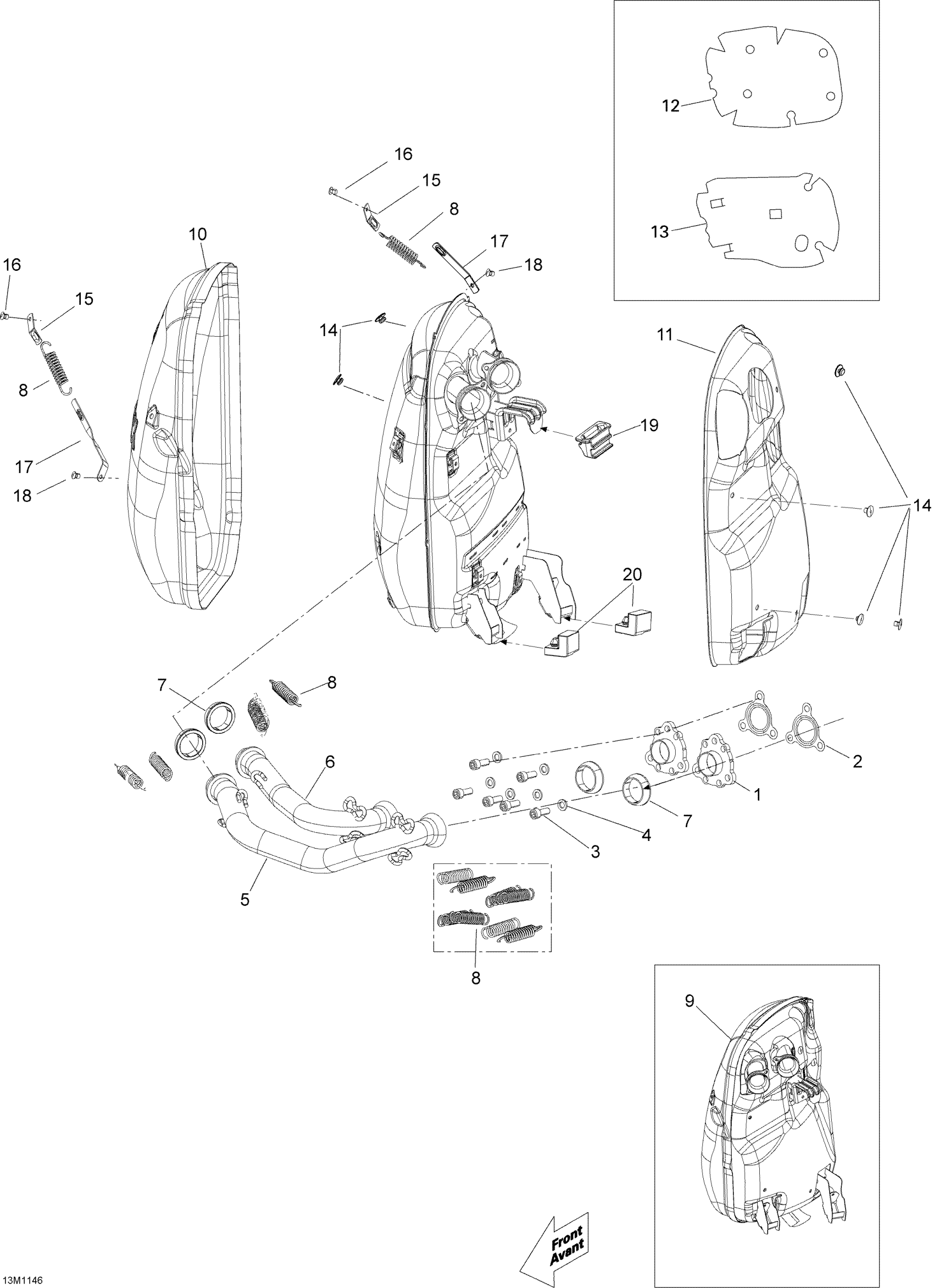

Ski-Doo Skandic WT 600 ACE XU, 2011 01- Exhaust System Diagram

Exhaust Manifold

Gasket

Socket Head Screw M8 X 22

Washer

Welded Tube

Welded Tube

Exhaust Gasket

Spring

Muffler Ass'y | Includes 400 to 400h

RH Heat Shield

LH Heat Shield

INSULATING WOOL - Call your local BRP dealership

INSULATING WOOL - Call your local BRP dealership

Pop Rivet 3/16”

Spring Bracket

Avex Rivet

Spring Bracket

Avex Rivet

Upper Stopper

Lower Stopper
