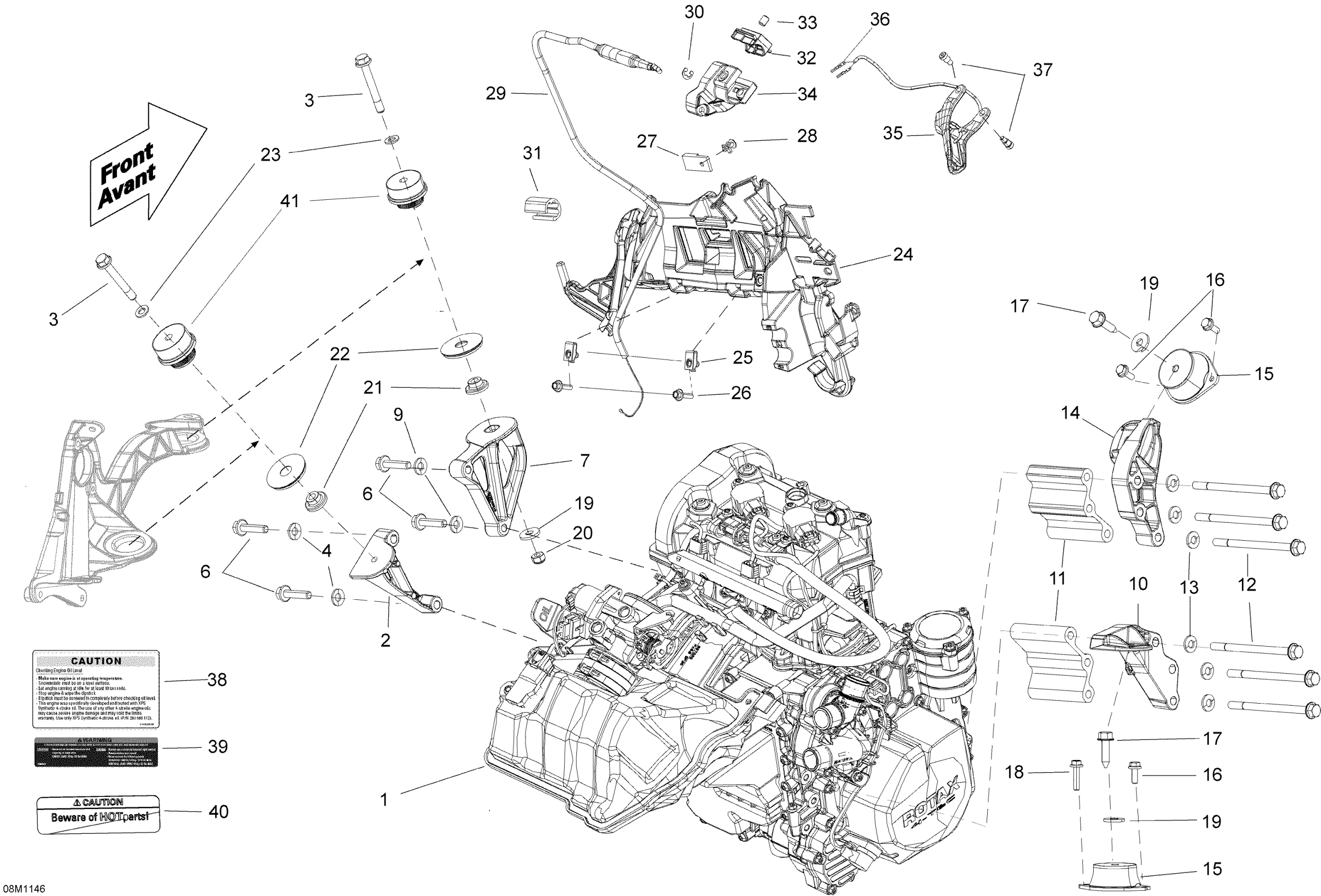

Ski-Doo Skandic WT 600 ACE XU, 2011 01- Engine And Engine Support Diagram

#

Description
Price

1

Long Block 602

420060203

$3.00

2

Rear Support PTO

512061139

$24.99

3

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.44

4

Conical Spring Washer M8

234281474

$1.48

6

Hex. Flange Screw M8 X 35

250000986

$2.11

7

Front Support PTO

512061140

$20.99

9

Conical Spring Washer M8

234281474

$1.48

10

Rear Support MAG

512061142

$28.99

11

Shim

512060505

$43.49

12

Hex. Flange Screw Din.6921 S.Grip

230582044

Unavailable

13

Conical Spring Washer M8

234281474

$1.48

14

Front Support, MAG

512060663

$19.99

15

Rubber Mount

512060729

$65.99

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

17

Cone Screw, M8 X 30

250000257

$1.89

18

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

19

Yellow, Washer

503183200

$3.19

20

Hex. Elastic Stop Nut M8

232581414

$0.56

21

Spacer

512060285

$19.99

22

Stopper

512061203

$14.22

23

Flat Washer With Teflon 8 mm

250200008

$3.80

24

MODULE SUPPORT - Call your local BRP dealership

512060509

Unavailable

25

Panel Nut M5 X 0.8

250000958

$4.23

26

Torx Screw M5 X 20

250000724

$1.69

27

Clip

270000141

$11.49

28

Avdel Rivet

293150027

$2.49

29

Throttle Cable

512060607

$79.49

30

Circlip

414274500

$0.90

31

Protector

512060313

$10.33

32

Upper Housing Ass'y

512060198

Unavailable

33

Socket Set Screw M8 X 10

414440800

$4.12

34

Lower Housing

512060860

$17.53

35

Throttle Handle Ass'y

512061252

$124.99

36

Male Terminal

515175232

$1.58

37

Flange Screw

732601143

$4.12

38

Caution Decal, Oil Level

516005521

Unavailable

39

Warning Decal

516003927

Unavailable

40

Caution Label, Air Intake

516004651

Unavailable

41

Vibration Damper

512061516

$61.99
