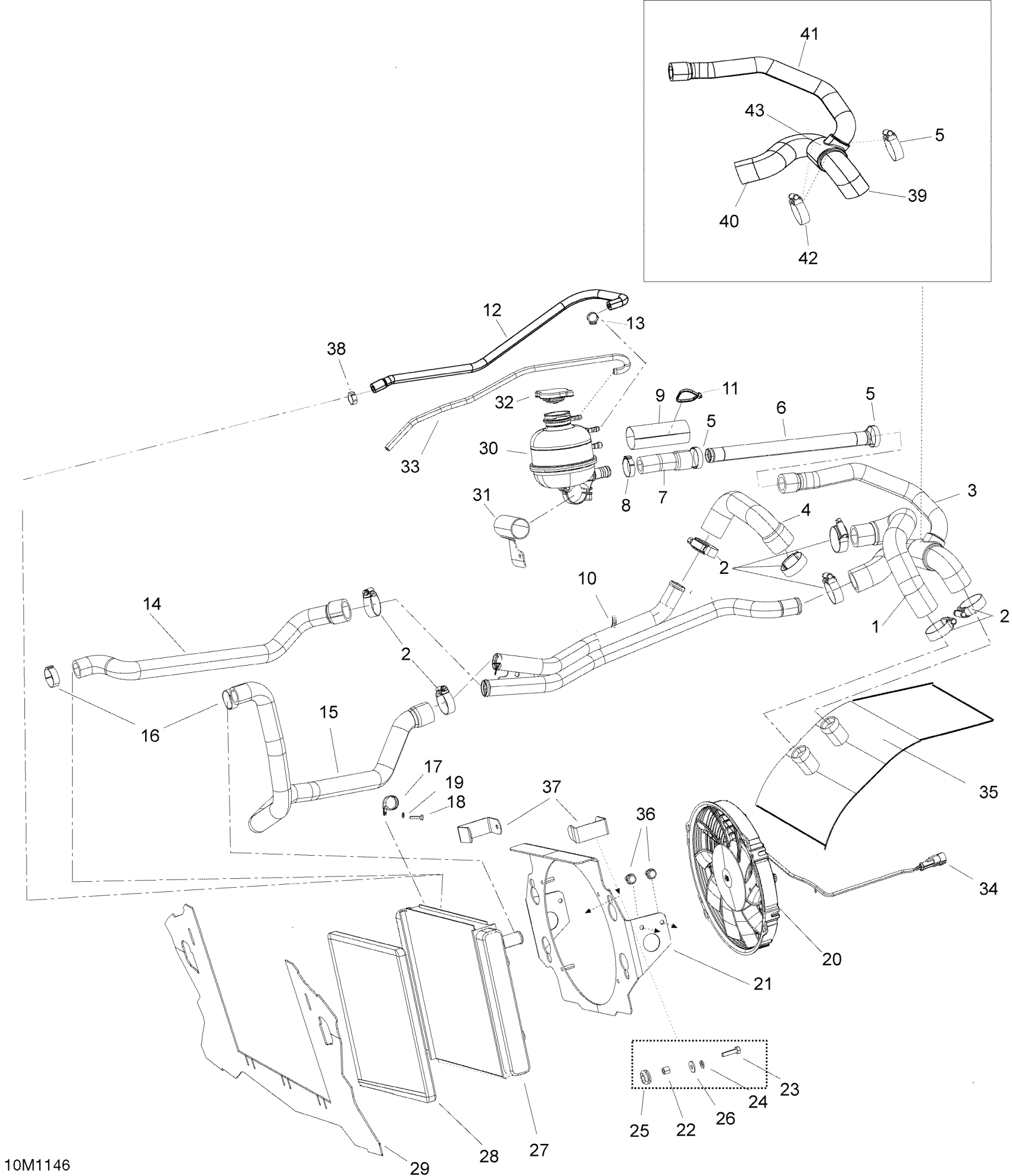

Ski-Doo Skandic WT 600 ACE XU, 2011 Cooling System Diagram

#

Description
Price

1

HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership

509000762

Unavailable

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Engine Outlet Hose

509000932

$17.66

5

Crimp Clamp

293650099

$3.55

6

PIPE - Call your local BRP dealership

509000644

Unavailable

7

HOSE - Call your local BRP dealership

509000698

Unavailable

8

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

9

Protector Tube

707001349

$19.20

10

WATER PIPE - Call your local BRP dealership

509000629

Unavailable

11

Tie-Rap 180 mm

414115200

$0.09

12

BREATHER HOSE - Call your local BRP dealership

509000750

Unavailable

13

Crimp Clamp, 15.3-706R

293650047

$2.64

14

HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership

509000707

Unavailable

15

Air Radiator Hose

509001000

$95.35

16

Crimp Clamp

293650099

$3.55

17

Clamp With Rubber D=30

605627008

$19.20

18

Hex. Screw M6 X 25

207162544

$1.05

19

Lock Washer M6, Black

234161471

$0.52

20

Cooling Fan

509000838

$213.05

21

Radiator support | Includes 3340 to 3340a

509000791

$91.51

22

Bushing

605453745

$11.52

23

Hex. Screw M6 X 25

207162544

$1.05

24

Lock Washer M6, Black

234161471

$0.52

25

Grommet

709000582

$4.38

26

Flat Washer 6 mm

234062410

$0.64

27

Radiator

509000787

$214.58

28

Insulation

509000718

$59.20

29

AIR DEFLECTOR LTS - Call your local BRP dealership

509000784

Unavailable

30

Coolant Tank

509000421

$86.89

31

Tank Support

509000782

Unavailable

32

Radiator Pressure Cap

509000180

$11.69

33

Hose 6 Mm 15000Mm Long

219704360

$104.62

34

Male Connector, 2 Circuits

278000220

$11.02

35

Radiator Tunnel

509000645

$766.12

36

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

37

Deflector Clip

509000703

$39.97

38

Crimp Clamp

293650053

$2.42

39

HOSE - TUNNEL RAD - T-FITTING - Call your local BRP dealership

509000828

Unavailable

40

HOSE - T-TITTING - COOLANT PUMP - Call your local BRP dealership

509000829

Unavailable

41

HOSE - T-TITTING - COOLANT TANK - Call your local BRP dealership

509000830

Unavailable

42

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

43

T-Fitting

509000372

$7.87
