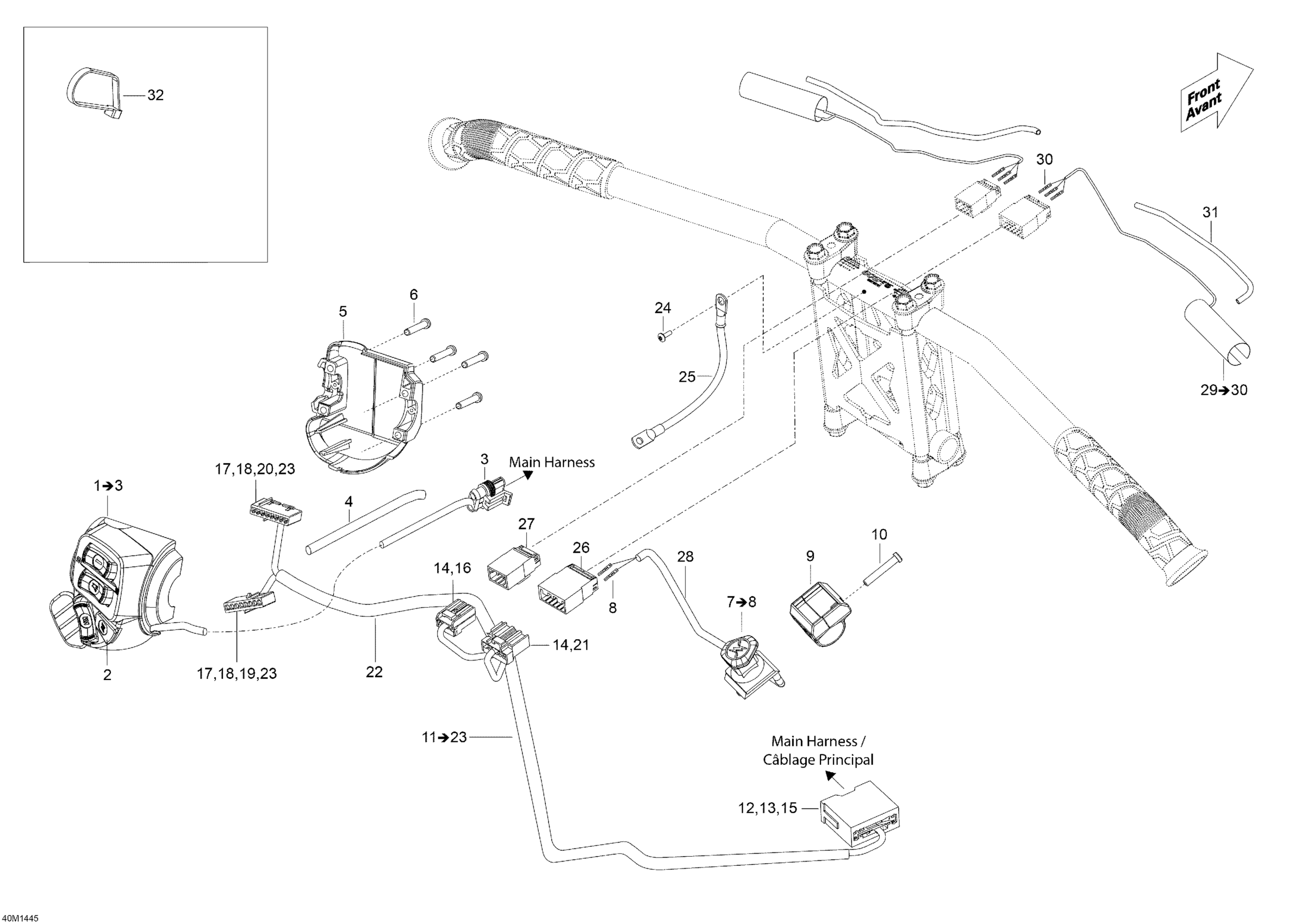

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2014 10- Steering Wiring Harness Diagram

#

Description
Price

1

LH Switch Housing | Includes 1 To 3

515177508

$179.99

2

Start/RER Button

515176088

$20.99

3

Female Housing, 3 Circuits

409209600

$35.99

4

Tubing 6 Mm 3000Mm Long

219704425

$13.75

5

Switch Housing Plate

515175926

$20.99

6

Torx Screw #8-18

250000263

$1.04

7

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

8

Male Terminal

515175232

$1.58

9

Kill Switch Support

515176825

$10.49

10

Torx Screw #8-18

250000263

$1.04

11

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 11 To 23

515176867

Unavailable

12

Male Terminal

515175232

$1.58

13

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

14

Female Terminal

515175231

$4.39

15

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

16

Female Terminal Housing, 6 Circuits

515175543

$9.49

17

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

18

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

19

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

20

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

21

Female Terminal Housing, 8 Circuits

515175819

$7.62

22

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

23

Female Terminal

515175941

$2.69

24

Pan Screw Forming, 7500C

250000690

$2.11

25

Ground Cable

515177668

$114.99

26

Male Terminal Housing, 8 Circuits

515175817

$8.79

27

Male Terminal Housing, 6 Circuits

515175662

$8.79

28

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

29

Heating Element

506152467

$36.99

30

Male Terminal

515175232

$1.58

31

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

32

Tie-Rap 180 mm

414115200

$0.11
