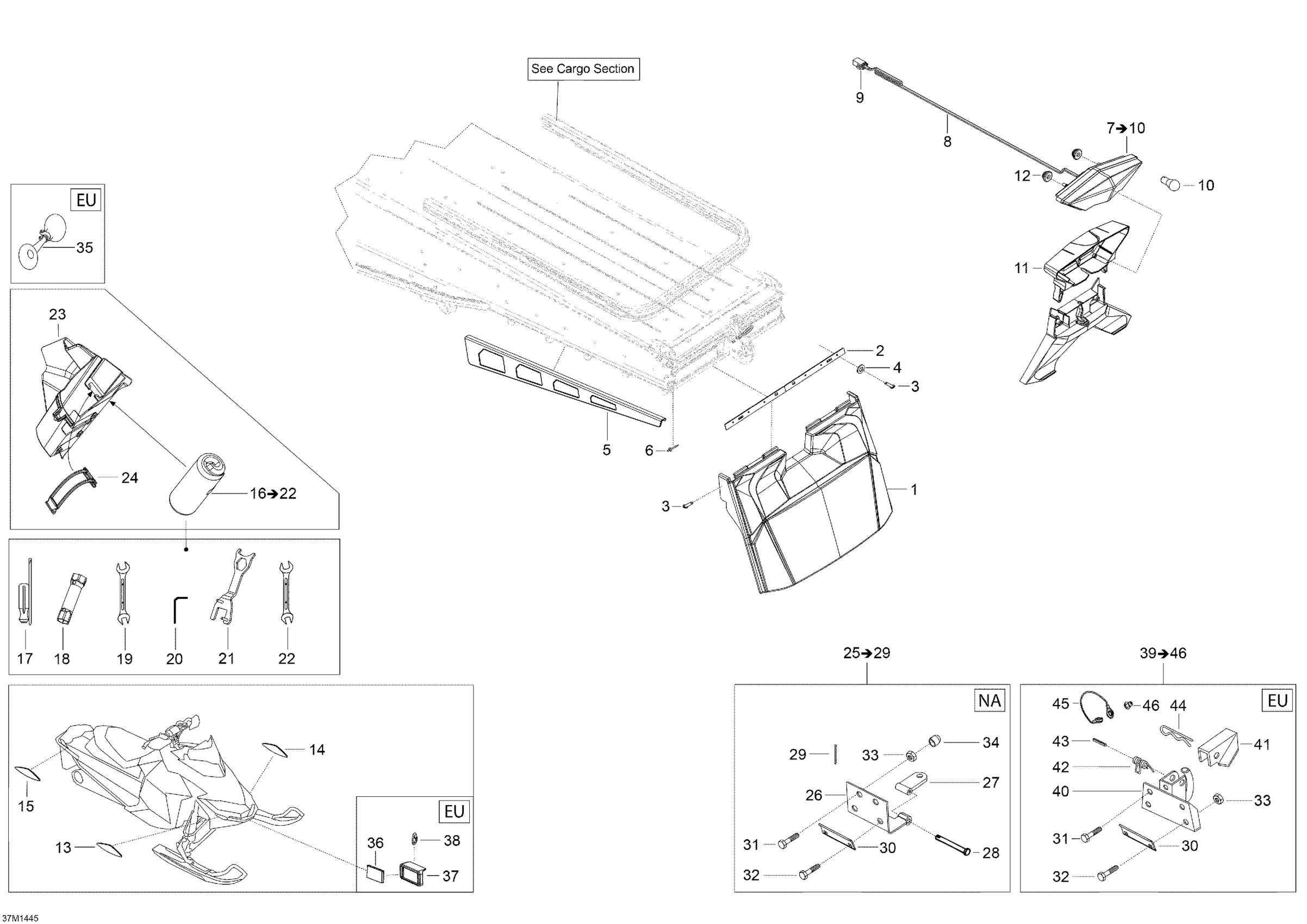

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2014 Utilities Diagram

#

Description
Price

1

Black, Snow Guard Short

520001405

$81.99

1

Snow Guard

520001411

$109.99

2

Plate

520001021

$33.55

3

Forming Screw M5 x 16

250000676

$0.96

4

Washer M5

250200025

$0.70

5

RH Protector

520000693

$52.96

5

LH Protector

520000694

$52.96

6

Rivet Hucklok

293150163

$2.73

7

Rear Light | Includes 200 to 200a

520000848

$93.25

8

Rear Wiring Harness

520000849

$49.22

9

Male Housing, 3 Circuits

515175494

$14.90

10

Bulb

520000758

$8.60

11

Rear Light Cover

511000764

$35.04

12

Stopper Rubber

705014429

$6.09

13

Yellow, RH Reflector

520001600

$30.57

14

Yellow, LH Reflector

520001601

$30.57

15

Red, Lateral Reflector

705003412

$12.88

15

Amber, Lateral Reflector

705002423

$12.88

16

Tool Kit | Includes 16 To 22

529000066

$46.99

17

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

18

Set Key, 16/21 mm

529000046

$14.49

19

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

20

Spacing Tool

520001142

$10.99

21

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

22

Wrench

M34017

Unavailable

23

Tool Kit Rack

520000894

$14.99

24

Latch

520000528

$6.40

25

Hitch Ass'y | Model- North America

M5344152

Unavailable

26

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$75.34

27

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

28

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

29

Cotter Pin

41031

$6.07

30

Plate

520000727

$32.81

31

Carriage Bolt, M8 X 25 | XXC

207782544

$1.51

32

Bolt Carriage M8 X 40

207784044

$1.06

33

Hex. Flange Elastic Nut M8

233281414

$1.31

34

Cover | Model-T3

28056

$5.36

35

Horn

549011291

$34.30

36

White Reflector | Model- EUROPE

M21118

Unavailable

37

Deep Black, Reflector Support

520000871

$5.13

38

Tie Rap 2.4x200 | Model- EUROPE

M27120

Unavailable

39

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.16

40

Not Available As Spare Part - Friction Washer

Unavailable

41

LOCKING PLATE - Call your local BRP dealership | Model- EUROPE

520001041

Unavailable

42

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

43

Pin

41012

$5.06

44

Hair pin

41029

$4.15

45

RETAINER CABLE - Call your local BRP dealership | Model- EUROPE

M5446839

Unavailable

46

Avex Rivet

390909100

$0.28
