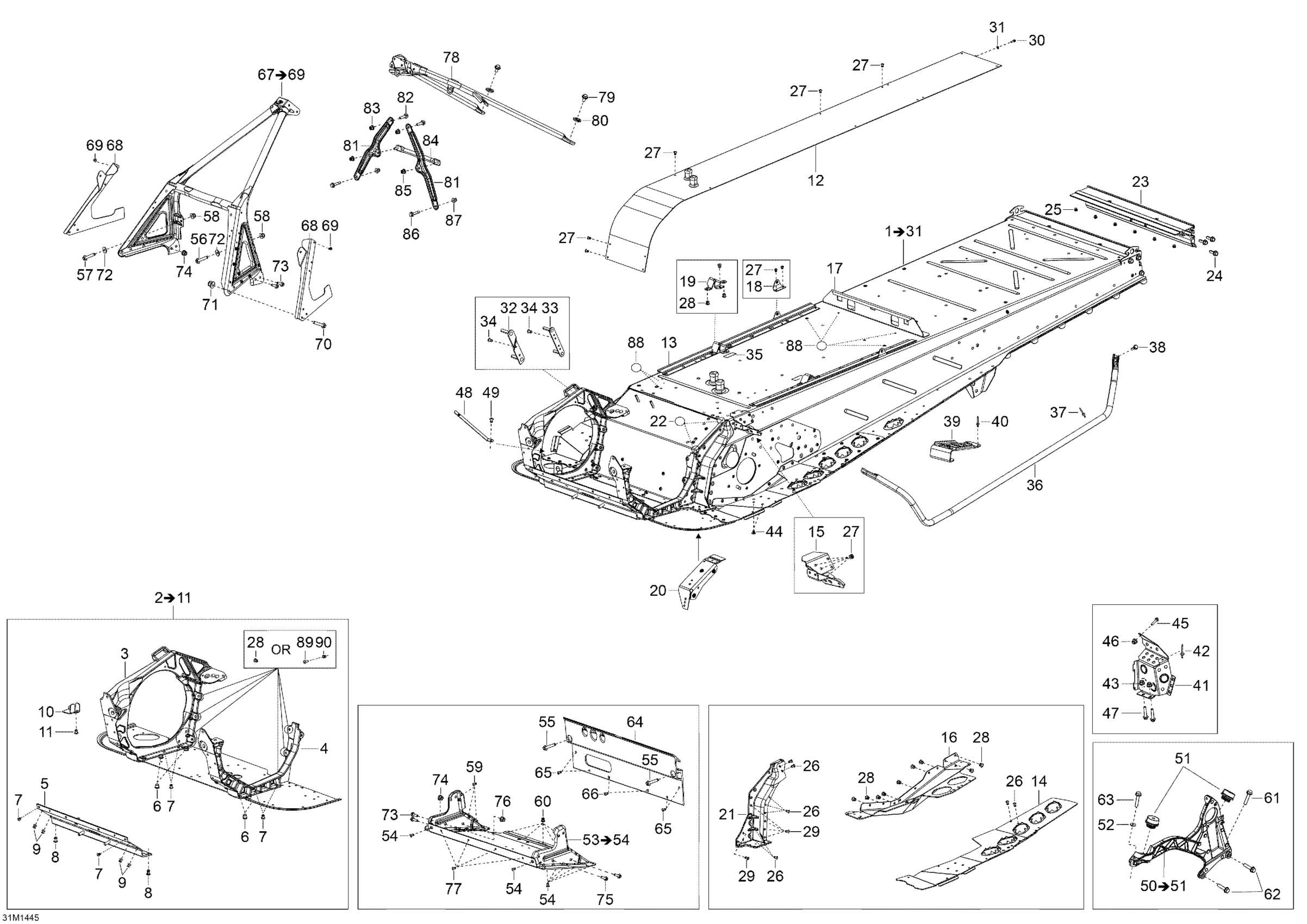

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2014 Frame Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership | Includes 1 To 32

518328202

Unavailable

2

E MODULE - Call your local BRP dealership | Includes 2 To 11

518326518

Unavailable

3

RH Side Member

518326328

$252.21

4

LH Side Member

518326330

$252.21

5

Front Member

518326198

$58.18

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Muffler Support

518327185

Unavailable

11

Rivet Hucklok

293150163

$2.73

12

Tunnel Radiator | Includes 10p to 10q

509000976

$640.27

13

Fastening rail

518326107

$14.90

14

FOOTREST LH - Call your local BRP dealership

518326895

Unavailable

14

FOOTREST RH - Call your local BRP dealership

518326896

Unavailable

15

Fastening Bracket

605355235

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

18

Seat Box Bracket

518327457

$29.07

19

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

19

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

20

Clinch Nut plate

518326430

$44.75

21

LH Frame Corner

518325524

$50.72

21

RH Frame Corner

518328024

$50.72

22

Adhesive Patch

518325560

$4.21

23

Rear Profile

518328748

$211.16

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

25

Hemlock Rivet, 6.4 mm

293150174

$6.24

26

Avex Rivet

390909100

$0.28

27

Avex Rivet

390909200

$0.28

28

Hemlock Rivet, 6.5 mm

293150119

$3.88

29

Rivet

293150183

$2.00

30

Socket Screw | Not Shown

205061244

$2.00

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Gearbox Front Plate

518326123

Unavailable

33

Gearbox Rear Plate

518326124

$14.81

34

Pop Rivet 3/16"

390402200

$0.30

35

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

36

LH Footboard Support Tube

518326963

$123.10

36

RH Footboard Support Tube

518326964

$123.10

37

Avex Rivet

390909100

$0.28

38

Hex. Flange Screw M6 x 20

207662056

$0.96

39

Footrest

520000492

$17.88

40

Avex Rivet

390909100

$0.28

41

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

41

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

42

Avex Rivet

390909200

$0.28

43

Clinch Nut M6 Hexsert

605636003

$4.00

44

Black, Dart

414644300

$0.90

45

Hex. Flange Screw M6 x 20

207662056

$0.96

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

47

Torx Screw M6 X 20

250000722

$1.54

48

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

49

Avex Rivet

390909200

$0.28

50

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

51

Vibration Damper

512061516

$55.94

52

Conical Spring Washer M8

234281474

$1.43

53

S Module | Includes 300 to 300a

518326213

$752.96

54

Avex Rivet

390909200

$0.28

55

Hexagonal Head Screw

210262050

$2.00

56

Hex. Flange Screw M6 X 25

207662544

$0.61

57

Hex. Flange Screw M6 X 25

207662544

$0.61

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

59

Avex Rivet

390909100

$0.28

60

Avex Rivet

390909200

$0.28

61

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

62

Hex. Flange Screw M8 X 35

250000986

$2.00

63

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.22

64

Engine Support

518326140

$112.66

65

Avex Rivet

390909100

$0.28

66

Hemlock Rivet, 6.5 mm

293150119

$3.88

67

Front Member Ass'y | Includes 700 to 700d

518326754

$654.45

68

LH Bumper Fastener

502007077

$51.46

68

RH Bumper Fastener

502007078

$51.46

69

Avex Rivet

390909200

$0.28

70

Hex. Flange Screw M6 X 20

207662044

$1.91

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

72

Flat Washer

224061201

$1.27

73

Hex. Flange Screw M6 X 20

207662044

$1.91

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

75

Hex. Flange Screw M6 X 20

207662044

$1.91

76

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

77

Avex Rivet

390909200

$0.28

78

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

79

Hex. Flange Screw M6 x 20

207662056

$0.96

80

Not Available As Spare Part - Friction Washer

Unavailable

81

Upper Column Support

518326848

$12.67

82

Hex. Flange Screw M6 x 20

207662056

$0.96

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

84

Center Column Support

518326355

$20.12

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

86

Hex Flange Screw M6 x 25

250000522

$4.15

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

88

Adhesive Patch

518325560

$4.21

89

Hex. Flange Screw M6 X 20

207662044

$1.91

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
