Description

Price

1

Yellow Hood | Yellow 2000

517305523

$249.99

2

Hood Grille

517304843

$88.99

3

Insulator

517304330

$36.99

4

Insulator

517304214

$31.99

5

Latch Pannel

517304289

$11.49

6

Scoop Grille

517306980

$37.99

7

Black, Console

517304820

$179.99

8

INSULATOR - Call your local BRP dealership

517304317

Unavailable

9

Insulator

517304318

$48.99

10

Yellow, RH Side Access Panel | Yellow 2000

517305525

$254.99

11

RH Access Panel Grille

517304015

$36.99

12

RH Lower Acces Grille

517304016

$31.99

13

Insulator

517304311

$61.99

14

Insulator

517304312

$31.99

15

Yellow, LH Side Access Panel | Yellow 2000

517305527

$254.99

16

LH Access Panel Grille

517303893

$36.99

17

Insulator

517304313

$61.99

18

Indicator Support

517304272

$179.99

19

Insulator

517304314

$62.99

20

Insulator

517304315

$31.99

21

Insulator

517304316

$31.99

22

Insulator

517304319

$31.99

23

Windshield Ass'y

860201000

$209.99

24

Button

517304744

$2.19

25

Grommet

517303756

$4.09

26

Black, RH Side Panel

517306977

$249.99

27

Foam Right

517304709

$53.99

28

RH Rear Foam

517304310

$60.99

29

Black, LH Side Panel

517306979

$249.99

30

Foam LH

517304707

$53.99

31

LH Rear Foam

517304309

$60.99

32

Handle Fastener Quarter-Turn

517304297

$16.99

33

Quarter-Turn Handle

517304296

$16.99

34

Locking Plate

517304538

$4.59

35

Side Panel Support | Except Package SWT

517304497

$19.99

36

Rivet

36005

$2.11

37

Black Latch Kit | Includes 390 to 400

860200239

$16.88

38

Latch-Panel

517306057

$24.49

39

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$72.99

40

Torx Truss Screw M6 X 16

250000721

$1.69

41

Domed Nut M6

232361493

$2.11

42

Rubber Washer 5 mm

250200024

$2.19

43

Washer

20117

$6.39

44

Air Filter

508000609

$48.49

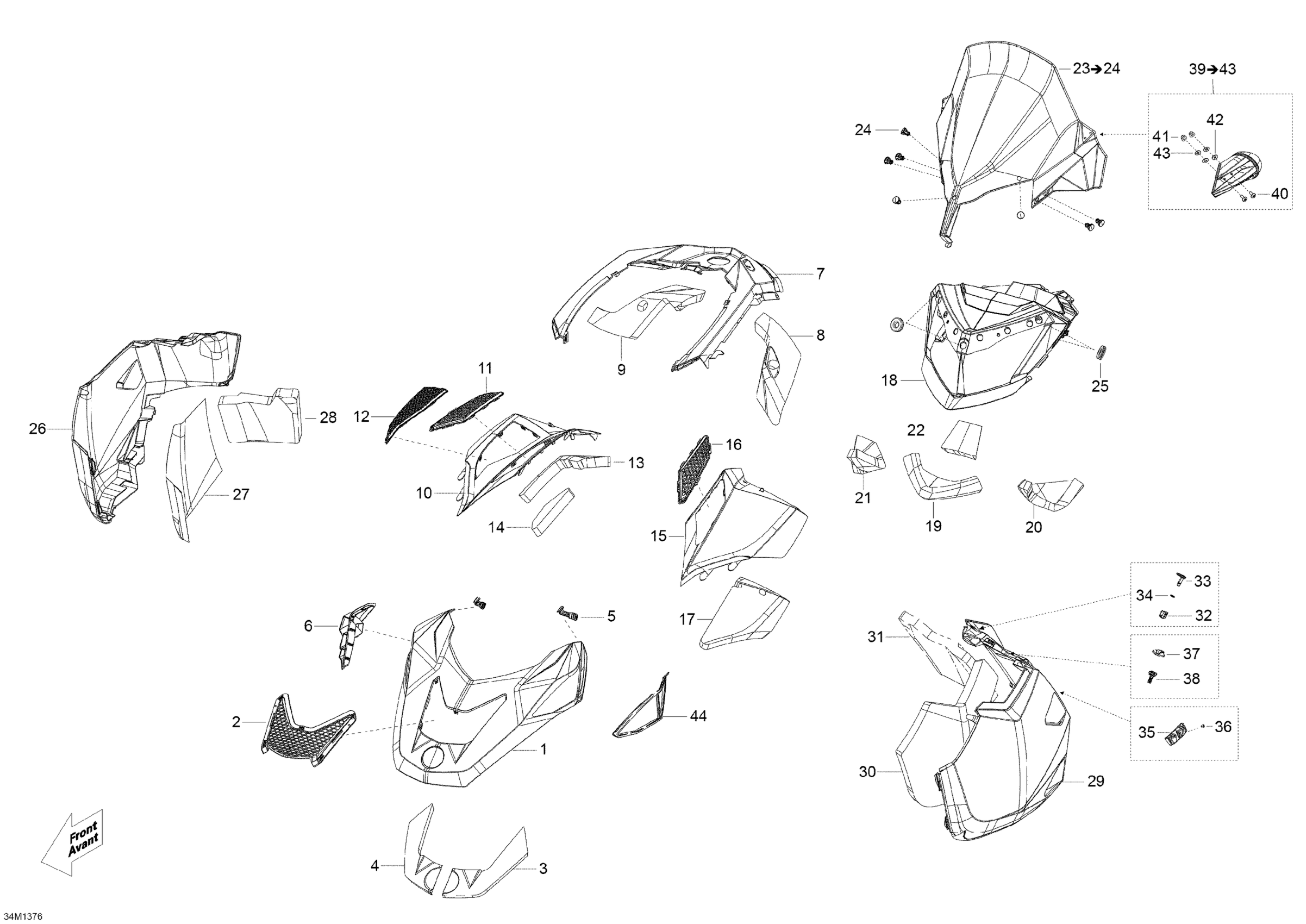

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2013 09- Hood, Windshield And Console Diagram

Yellow Hood | Yellow 2000

Hood Grille

Insulator

Insulator

Latch Pannel

Scoop Grille

Black, Console

INSULATOR - Call your local BRP dealership

Insulator

Yellow, RH Side Access Panel | Yellow 2000

RH Access Panel Grille

RH Lower Acces Grille

Insulator

Insulator

Yellow, LH Side Access Panel | Yellow 2000

LH Access Panel Grille

Insulator

Indicator Support

Insulator

Insulator

Insulator

Insulator

Windshield Ass'y

Button

Grommet

Black, RH Side Panel

Foam Right

RH Rear Foam

Black, LH Side Panel

Foam LH

LH Rear Foam

Handle Fastener Quarter-Turn

Quarter-Turn Handle

Locking Plate

Side Panel Support | Except Package SWT

Rivet

Black Latch Kit | Includes 390 to 400

Latch-Panel

RH/LH Mirror Ass'y | Includes 50 to 54

Torx Truss Screw M6 X 16

Domed Nut M6

Rubber Washer 5 mm

Washer

Air Filter
