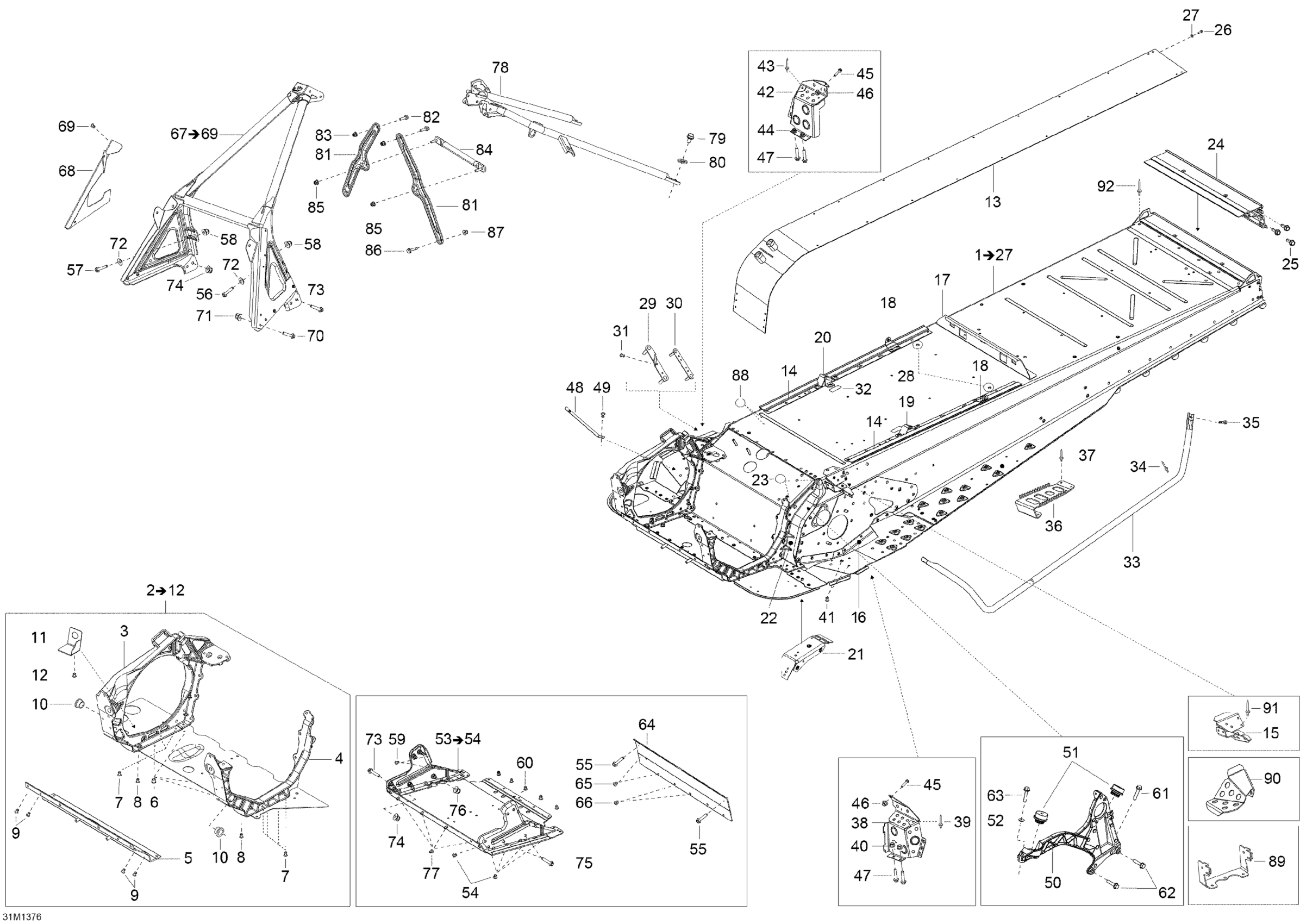

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2013 09- Frame Diagram

#

Description
Price

1

Frame XU ACE SC-5 | Includes 1 To 27

518326988

Unavailable

2

E MODULE - Call your local BRP dealership | Includes 2 To 11

518326518

Unavailable

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Clinch Nut Hexsert M8

605636002

$7.51

7

Avex Rivet

390909100

$0.30

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9

Hemlock Rivet, 6.5 mm

293150119

$4.29

10

Leg Bushing

505072690

$12.49

11

Muffler Support

518327185

Unavailable

12

Rivet Hucklok

293150163

$2.99

13

Radiator Tunnel

509000645

$819.99

14

Fastening rail

518326107

$18.49

15

Fastening Bracket

605355235

$56.99

16

Drive Axle Cover L.H.

518326658

Unavailable

16

DRIVE AXLE COVER R.H. - Call your local BRP dealership

518326659

Unavailable

17

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$78.99

18

Seat Box Bracket

518325987

Unavailable

19

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$44.49

22

LH Frame Corner

518325524

$56.99

22

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

23

Adhesive Patch

518325560

$4.69

24

Rear Profile

518328748

$234.99

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

26

Socket Screw | Not Shown

205061244

$2.11

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Adhesive Patch

518325560

$4.69

29

Gearbox Front Plate

518326123

$17.49

30

Gearbox Rear Plate

518326124

$17.99

31

Pop Rivet 3/16"

390402200

$0.35

32

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

33

LH Footboard Support Tube

518326963

$139.99

33

RH Footboard Support Tube

518326964

$139.99

34

Avex Rivet

390909100

$0.30

35

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

36

Footrest

520000492

$19.99

37

Avex Rivet

390909100

$0.30

38

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

39

Avex Rivet

390909200

$0.30

40

Clinch Nut M6 Hexsert

605636003

$4.23

41

Black, Dart

414644300

$0.98

42

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

43

Avex Rivet

390909200

$0.30

44

Clinch Nut M6 Hexsert

605636003

$4.23

45

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Torx Screw M6 X 20

250000722

$1.68

48

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

49

Avex Rivet

390909200

$0.30

50

PULLEY SUPPORT - Call your local BRP dealership

518327534

Unavailable

51

Vibration Damper

512061516

$61.99

52

Conical Spring Washer M8

234281474

$1.48

53

S Module | Includes 300 to 300a

518326213

$839.99

54

Avex Rivet

390909200

$0.30

55

Hexagonal Head Screw

210262050

$2.11

56

Hex. Flange Screw M6 X 25

207662544

$0.64

57

Hex. Flange Screw M6 X 25

207662544

$0.64

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

59

Avex Rivet

390909100

$0.30

60

Avex Rivet

390909200

$0.30

61

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

62

Hex. Flange Screw M8 X 35

250000986

$2.11

63

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

64

Engine Support

518326140

$121.49

65

Avex Rivet

390909100

$0.30

66

Hemlock Rivet, 6.5 mm

293150119

$4.29

67

Front Member Ass'y | Includes 700 to 700d

518326754

$729.99

68

LH Bumper Fastener

502007077

$54.99

68

RH Bumper Fastener

502007078

$54.99

69

Avex Rivet

390909200

$0.30

70

Hex. Flange Screw M6 X 20

207662044

$2.00

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

72

Flat Washer

224061201

$1.37

73

Hex. Flange Screw M6 X 20

207662044

$2.00

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

75

Hex. Flange Screw M6 X 20

207662044

$2.00

76

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

77

Avex Rivet

390909200

$0.30

78

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

$199.99

79

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

80

Not Available As Spare Part - Friction Washer

Unavailable

81

Upper Column Support

518326848

$15.49

82

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

84

Center Column Support

518326355

$22.49

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

86

Hex Flange Screw M6 x 25

250000522

$1.01

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

88

Adhesive Patch

518325560

$4.69

89

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

90

Brake Hose Cover | Except Package SWT

518325626

$29.99

91

Avex Rivet

390909200

$0.30

92

Hemlock Rivet, 6.4 mm

293150174

$7.86
