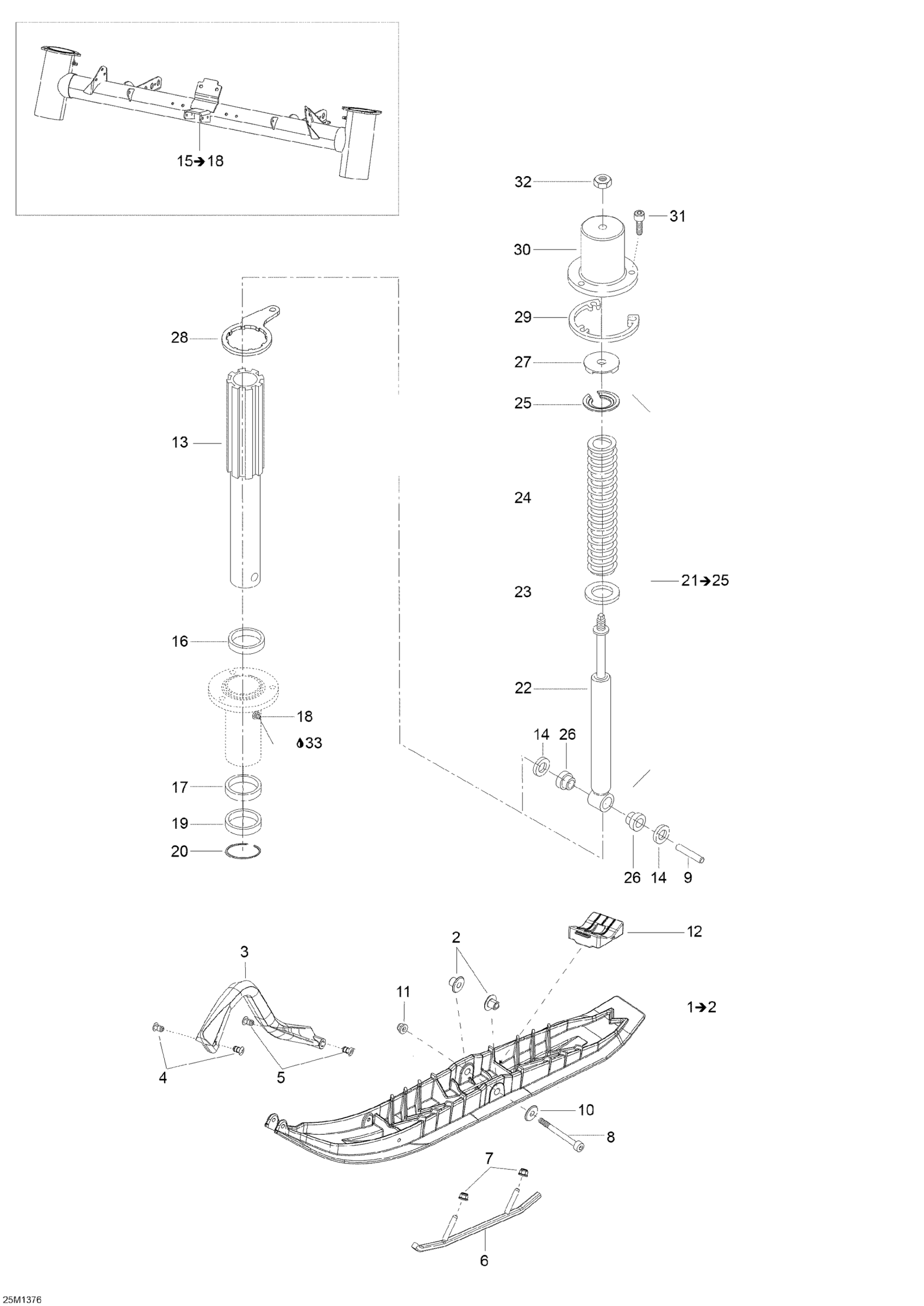

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2013 07- Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$179.99

2

Ski Bushing

505071781

$16.18

3

Black, Handle

505072976

$35.99

4

Retainer 17mm long

505071812

$5.95

5

Retainer 23mm Long

505072133

$6.78

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

9

Ski Axle

505073209

$16.49

10

Washer

732900049

$0.58

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Ski Stopper

505072594

$18.49

13

Ski Leg

505072778

$269.99

14

Spacer

505072579

$9.69

15

Module Ass'y | Includes 400 to 400d

505073967

$539.99

16

Upper Cushion

414803100

$10.49

17

Lower Cushion

414803200

$14.68

18

Grease Fitting

408200700

$3.49

19

Seal Oil

505072696

$45.99

20

Circlip

505072698

$14.99

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Shock

505073046

$164.49

23

Washer

505072578

$14.22

24

Black, Spring

505072745

$67.99

25

Spring Stopper

505072619

$12.99

26

Cushion

572034500

$12.58

27

Rubber Bumber

605354835

$16.49

28

Steering Arm

505073171

$134.99

29

Spacer

505073983

$25.99

30

Suspension Cover LH

505072874

$139.99

30

Suspension Cover RH

505072875

$139.99

31

Socket Head Screw M8 X 20

205082044

$1.15

32

Hex. Flange Elastic Nut M10

233201414

$1.58

33

Not Available As Spare Part - Friction Washer

Unavailable
