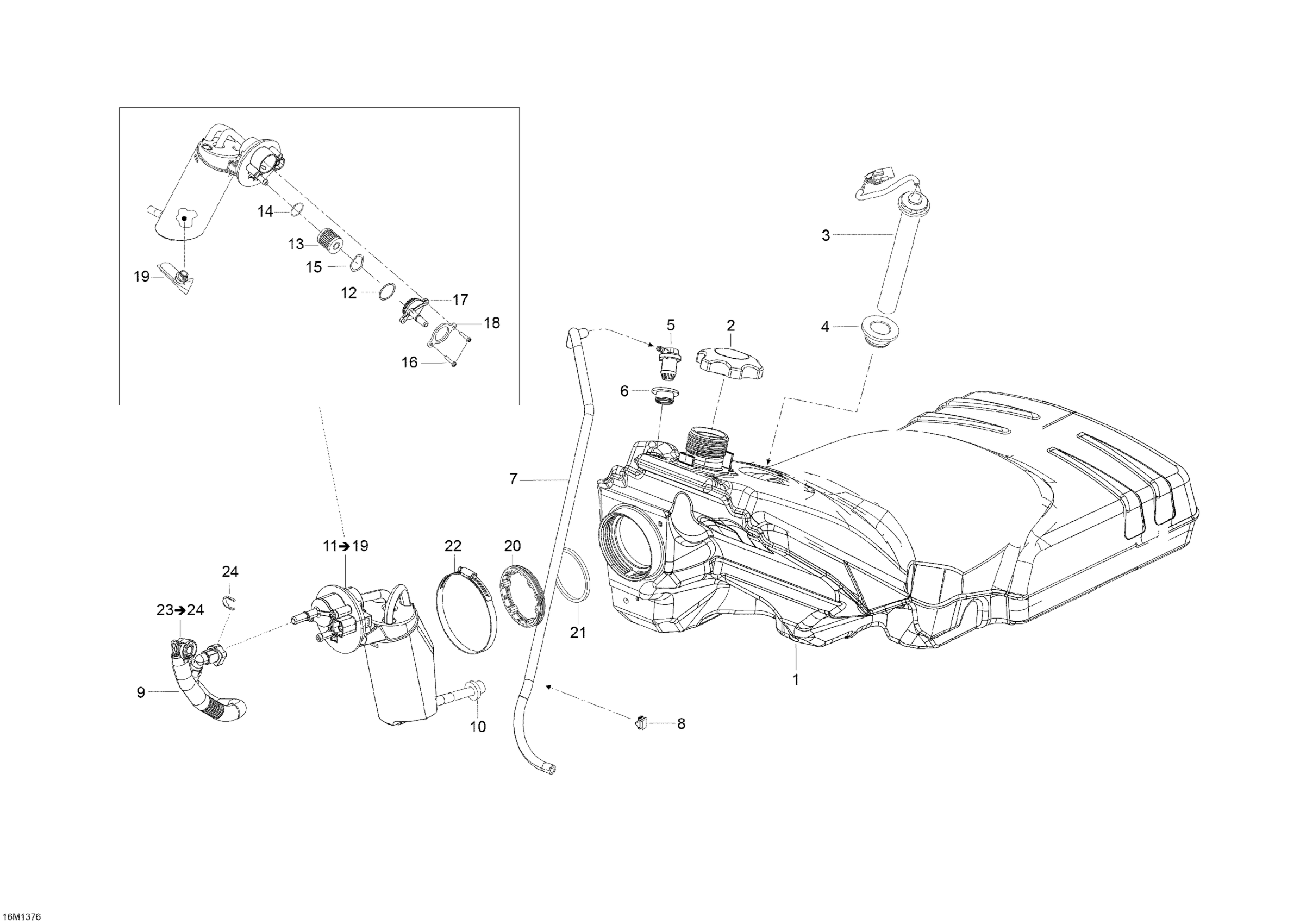

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2013 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

Fuel Sensor

513033538

$82.99

4

Grommet

293720058

$11.99

5

Check Valve

513033842

$35.99

6

Grommet

513033596

$21.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

8

Clip

414227300

$1.67

9

Protector Tube

504153074

$14.49

10

Grommet

280000674

$4.69

11

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$259.99

12

O-Ring

415129509

$19.99

13

Fuel Filter

415129510

$25.99

14

O-Ring

415129511

$18.49

15

Wave Washer

415129512

$19.99

16

Screw

415129513

$9.59

17

Cover

415129685

$29.99

18

Fuel Pump Ring

415129569

$19.49

19

Fuel Filter

415129451

$25.99

20

Ring

513033180

$19.99

21

Gasket

513033334

$24.49

22

Clamp

513033628

$20.49

23

Hose Ass'y | Includes 500 to 500a

513033582

$77.99

24

Locking Clip

513033135

$5.89
