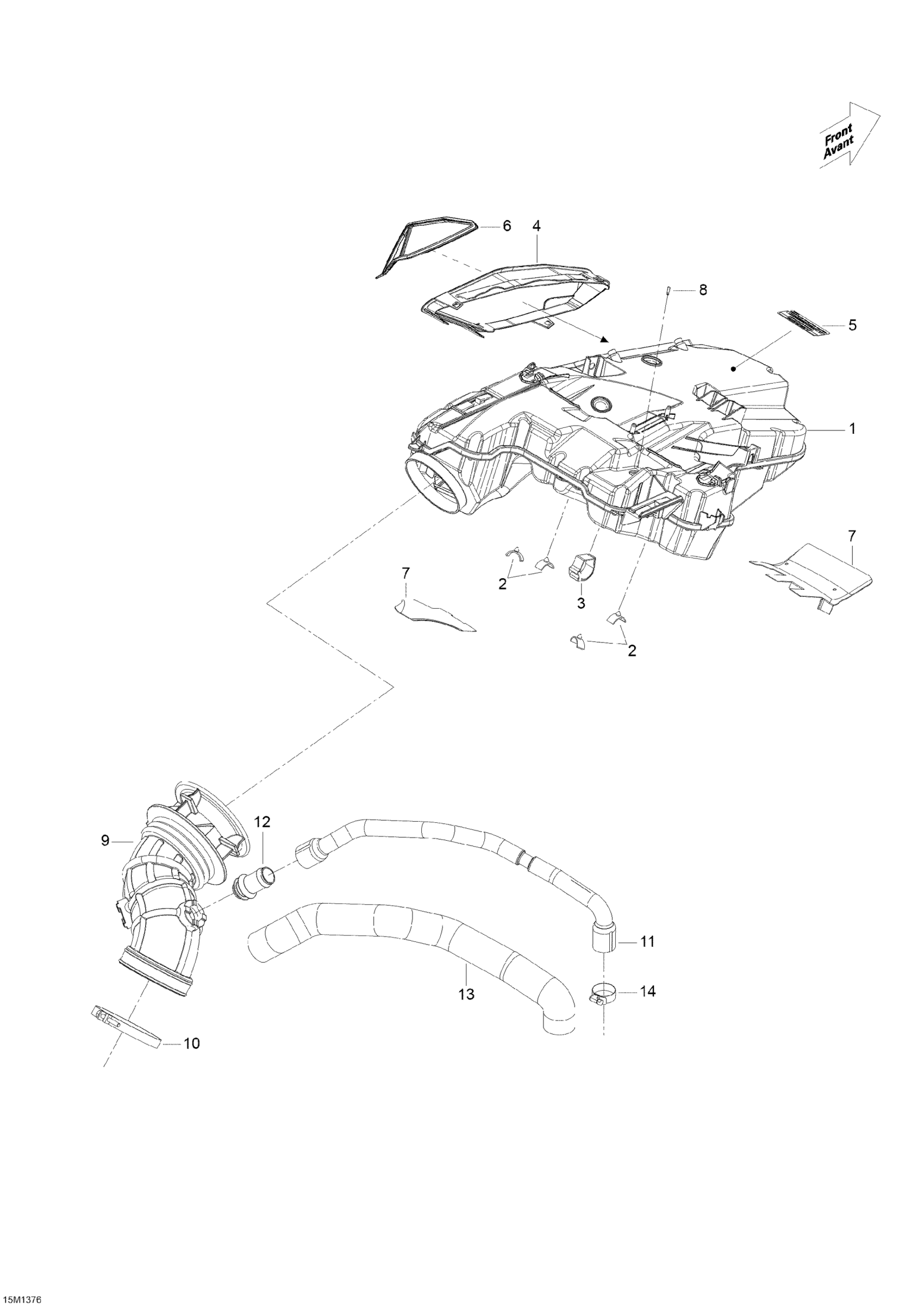

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2013 02- Air Intake System Diagram

#

Description

Price

1

Chamber Ass'y

508000790

$204.99

2

Stopper

508000537

$7.79

3

Velcro Strip

508000820

$8.59

4

Adaptor

508001020

$31.99

5

Caution Label, Air Intake

516004651

Unavailable

6

Air Filter

508000609

$48.49

7

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

8

Cap

572092900

$20.49

9

HOSE-INTAKE - Call your local BRP dealership

508000719

Unavailable

10

GEMI Clamp

293650212

$7.65

11

FORMED VENT HOSE - Call your local BRP dealership

508000647

Unavailable

12

Breather Valve

273000234

$14.49

13

Tube Isolator

508000648

$19.49

14

Tridon Gear Clamp

293650172

$3.09
