Description

Price

1

Torx Flange Screw M6 X 30

420440647

$1.91

2

Electric Starter Ass'y

420892435

$297.99

3

Starter Relay

515176011

$59.67

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

5

Elastic Stop Nut M6

232561434

$1.78

6

Battery Wire

515176778

Unavailable

7

Ground Wire

515176777

Unavailable

8

HOUSING - Call your local BRP dealership

M28015

Unavailable

9

Battery Wire

515176945

Unavailable

10

Protector Cap

710000495

$9.84

11

Battery | Includes 900 to 900a

515176151

$199.45

12

Battery Bolt Kit

250000282

$3.39

13

Battery Cover

510005079

$17.13

14

Battery Strap

510005143

$72.36

15

Battery Support

515176804

$72.36

16

Strap Cover

510005146

$26.09

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

18

Flat Washer 6 mm

234061410

$1.19

19

Elastic Stop Nut M6

232561434

$1.78

20

Protection Cap

570151000

$17.88

21

Hex. Flange Screw M6 X 16

207661644

$0.70

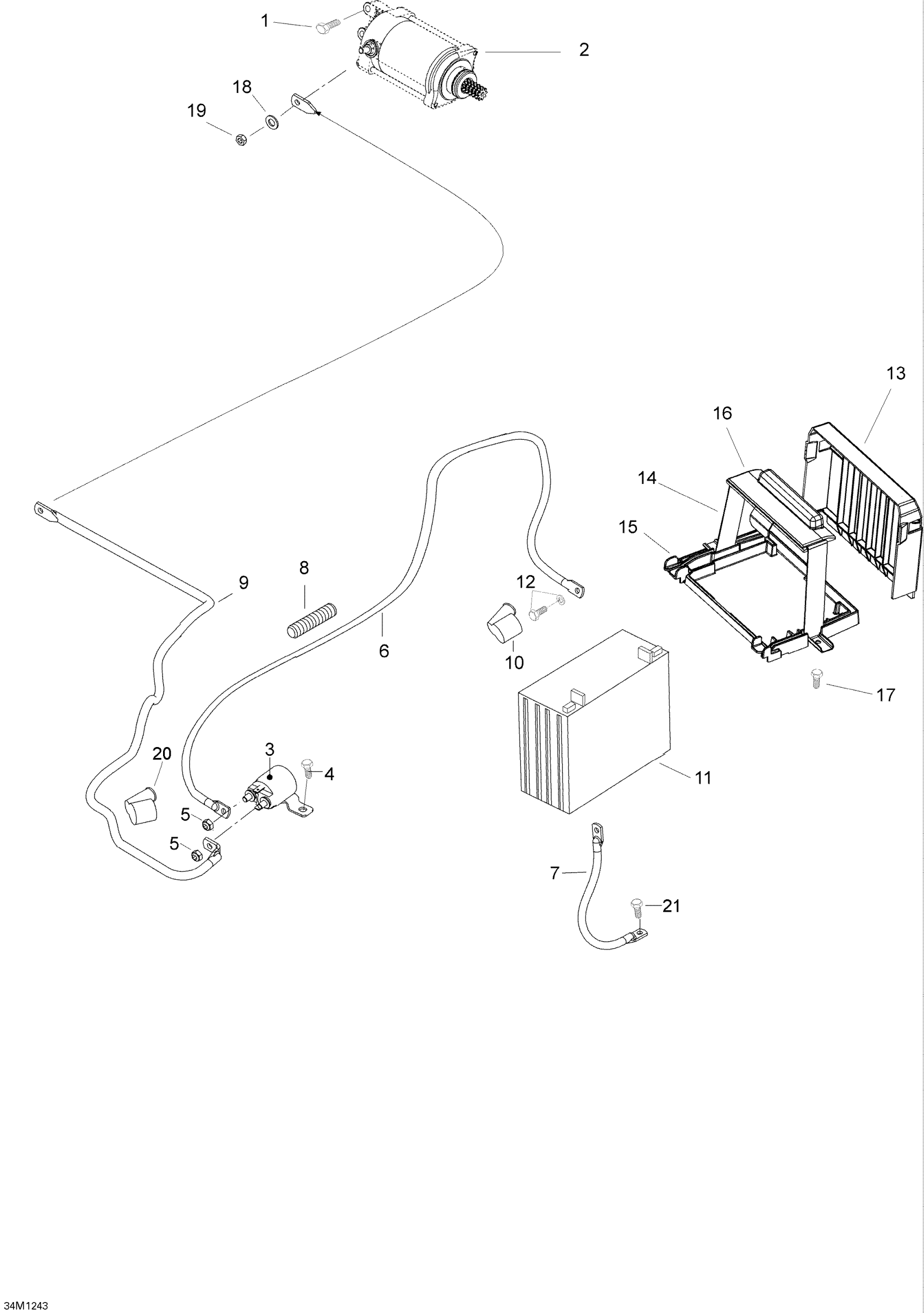

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 Battery And Starter Diagram

Torx Flange Screw M6 X 30

Electric Starter Ass'y

Starter Relay

Hex. Flange Screw M6 X 16, Scotch Grip

Elastic Stop Nut M6

Battery Wire

Ground Wire

HOUSING - Call your local BRP dealership

Battery Wire

Protector Cap

Battery | Includes 900 to 900a

Battery Bolt Kit

Battery Cover

Battery Strap

Battery Support

Strap Cover

Hex. Flange Screw M6 X 16, Scotch Grip

Flat Washer 6 mm

Elastic Stop Nut M6

Protection Cap

Hex. Flange Screw M6 X 16
