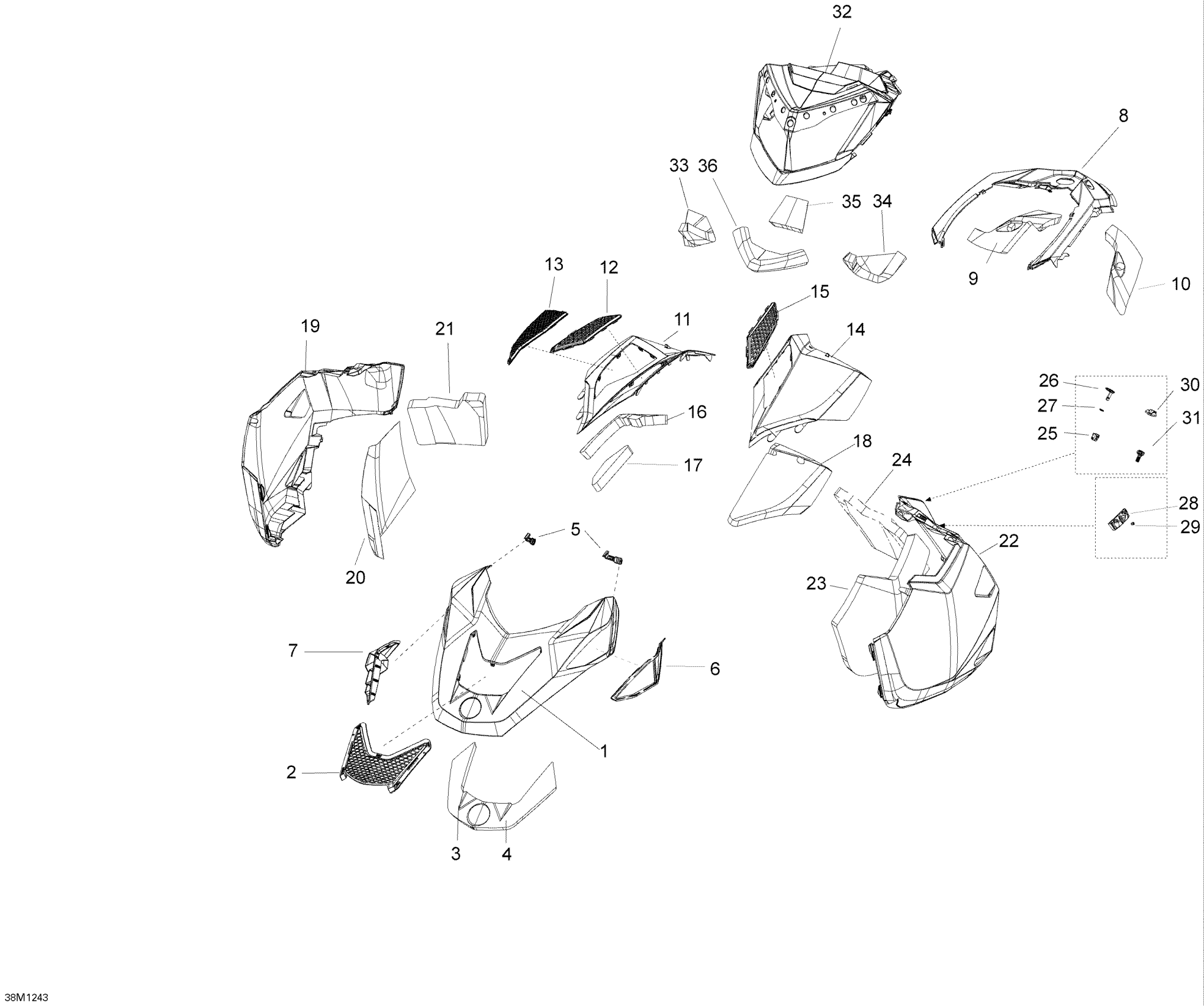

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 09- Hood Diagram

#

Description
Price

1

Yellow Hood | Yellow 2000

517305523

$249.99

2

Hood Grille

517304843

$88.99

3

Insulator

517304330

$36.99

4

Insulator

517304214

$31.99

5

Latch Pannel

517304289

$11.49

6

Air Filter

508000609

$48.49

7

Scoop Grille

517306980

$37.99

8

Black, Console

517304820

$179.99

9

Insulator

517304318

$48.99

10

INSULATOR - Call your local BRP dealership

517304317

Unavailable

11

Yellow, RH Side Access Panel | Yellow 2000

517305525

$254.99

12

RH Access Panel Grille

517304015

$36.99

13

RH Lower Acces Grille

517304016

$31.99

14

Yellow, LH Side Access Panel | Yellow 2000

517305527

$254.99

15

LH Access Panel Grille

517303893

$36.99

16

Insulator

517304311

$61.99

17

Insulator

517304312

$31.99

18

Insulator

517304313

$61.99

19

Black, RH Side Panel

517306977

$249.99

20

Foam Right

517304709

$53.99

21

RH Rear Foam

517304310

$60.99

22

Black, LH Side Panel

517306979

$249.99

23

Foam LH

517304707

$53.99

24

LH Rear Foam

517304309

$60.99

25

Handle Fastener Quarter-Turn

517304297

$16.99

26

Quarter-Turn Handle

517304296

$16.99

27

Locking Plate

517304538

$4.59

28

Side Panel Support | Except Package SWT

517304497

$19.99

29

Rivet

36005

$2.11

30

Black Latch Kit | Includes 390 to 400

860200239

$16.88

31

Latch-Panel

517306057

$24.49

32

Indicator Support

517304272

$179.99

33

Insulator

517304315

$31.99

34

Insulator

517304316

$31.99

35

Insulator

517304319

$31.99

36

Insulator

517304314

$62.99
