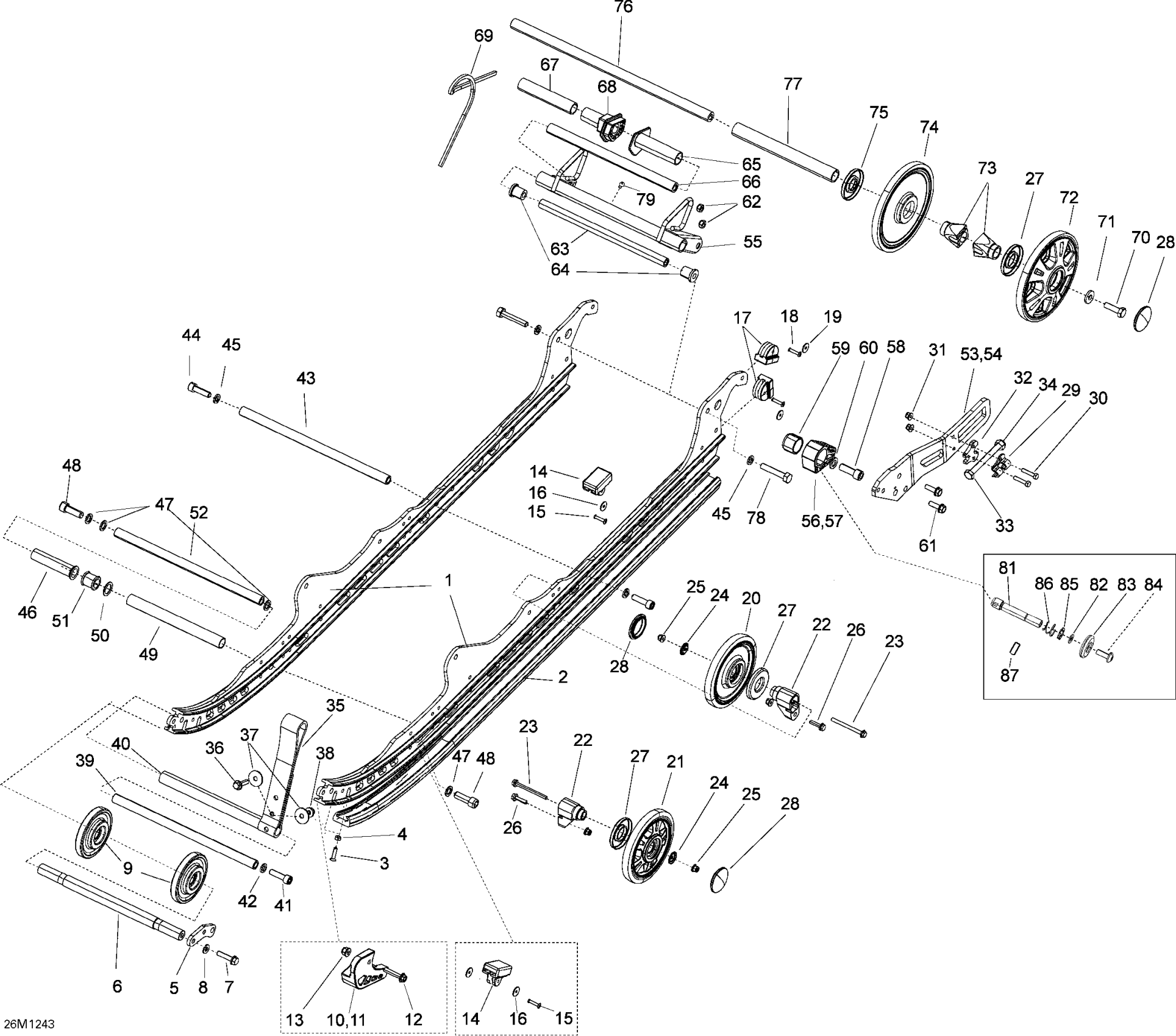

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 Rear Suspension Diagram

#

Description
Price

1

Runner | Model-LE

503193397

$217.13

2

Black Slider, 154"

503192618

$32.06

3

Phillips Screw M6 X 25

208562531

$2.00

4

Elastic Stop Nut M6

232561434

$1.78

5

Plate

503192612

$11.10

6

Axle

503192643

$144.00

7

Hex. Flange Screw M8 X 35

250000986

$2.00

8

Washer

503189157

$3.10

9

Black, Wheel Ass'y, 100 mm

503192611

$31.31

10

RH Protector

503192610

$26.09

11

LH Protector

503192609

$26.09

12

Hex. Flange Screw M8 X 40

207684044

$1.43

13

Hex. Flange Elastic Nut M8

233281414

$1.31

14

Rubber Stopper

503190576

$9.93

15

Pop Rivet 3/16"

293150142

$2.04

16

Washer

503191273

$1.03

17

Rubber Stopper

503191291

$17.88

18

Pop Rivet 3/16"

293150142

$2.04

19

Washer

503191273

$1.03

20

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

21

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

22

Casted Support

503193894

$12.37

23

Hex. Flange Screw M6 X 70

250001027

$2.00

24

Wheel Cup M6

503191820

$4.52

25

Elastic Flange Nut M6 X 1.0

233261416

$2.00

26

Hex Flange Screw M6 x 25

250000522

$4.15

27

Labyrinth Seal

503190434

$4.16

28

Wheel Cap

570063600

$3.18

29

Tensioner

503192583

$5.67

30

Hex Cap Screw DIN.931

250000480

$5.06

31

Elastic Flange Nut M6 X 1.0

233261416

$2.00

32

Spacer

503193250

$13.54

33

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

34

Elastic Locking Nut M10 X 1.5

233601416

$1.63

35

Stopper Strap

503192360

$19.37

36

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

37

Flat Washer

224081301

$0.84

38

Hex. Flange Elastic Nut M8

233281414

$1.31

39

Axle Strap

503192623

$59.67

40

Spacer

503192679

Unavailable

41

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

42

Washer

503189564

$0.70

43

Axle Strap

503191418

$53.70

44

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

45

Washer

503189564

$0.70

46

Center Bushing

503191259

$8.70

47

Washer

503189276

$3.10

48

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

49

Spacer

503191421

$44.75

50

Washer

503189273

$3.10

51

Bushing

503189271

$10.15

52

Shaft

503191420

$124.60

53

Rail Pivot RH

503192435

$81.31

54

Rail Pivot LH

503192434

$81.31

55

Welded Pivot | Includes 100c to 100c3

503191414

$93.25

56

LH Block

503192426

$12.31

57

RH Block

503192427

$12.31

58

Hex. Flange Screw M8 X 25

207682534

$1.03

59

Block Guide

503189488

$36.54

60

Washer | 7415/7416. 7417/7418.

503189148

$2.64

61

Hex. Flange Screw M8 X 25

207682544

$1.03

62

Hex. Elastic Stop Nut M8

232581414

$0.54

63

Lower Shaft

503191390

$26.84

64

Bushing

503189324

$10.84

65

LH Spring Cam

503191668

$9.88

66

Cam Axle

503191711

$26.09

67

Spacer

503191713

$9.93

68

RH Spring Cam

503191190

$13.37

69

Spring

503194624

$29.07

70

Hex. Screw With Nylon

250000019

$1.63

71

Washer

503190439

$5.64

72

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$48.48

73

Rear Wheel Spacer

503190428

$5.88

74

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$48.48

75

Labyrinth Seal

503190682

$5.67

76

Rear Axle

503191408

$65.64

77

Spacer

503196316

$26.09

78

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

79

Grease Fitting

408200700

$3.21

81

Rode

503192437

$5.67

82

Flat Washer M5

234051410

$0.51

83

Handle

503192438

$4.52

84

Torx Screw M5 X 14

250000742

$1.37

85

Circlip

293370068

$0.90

86

Compression Spring

503192436

$36.54

87

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable
