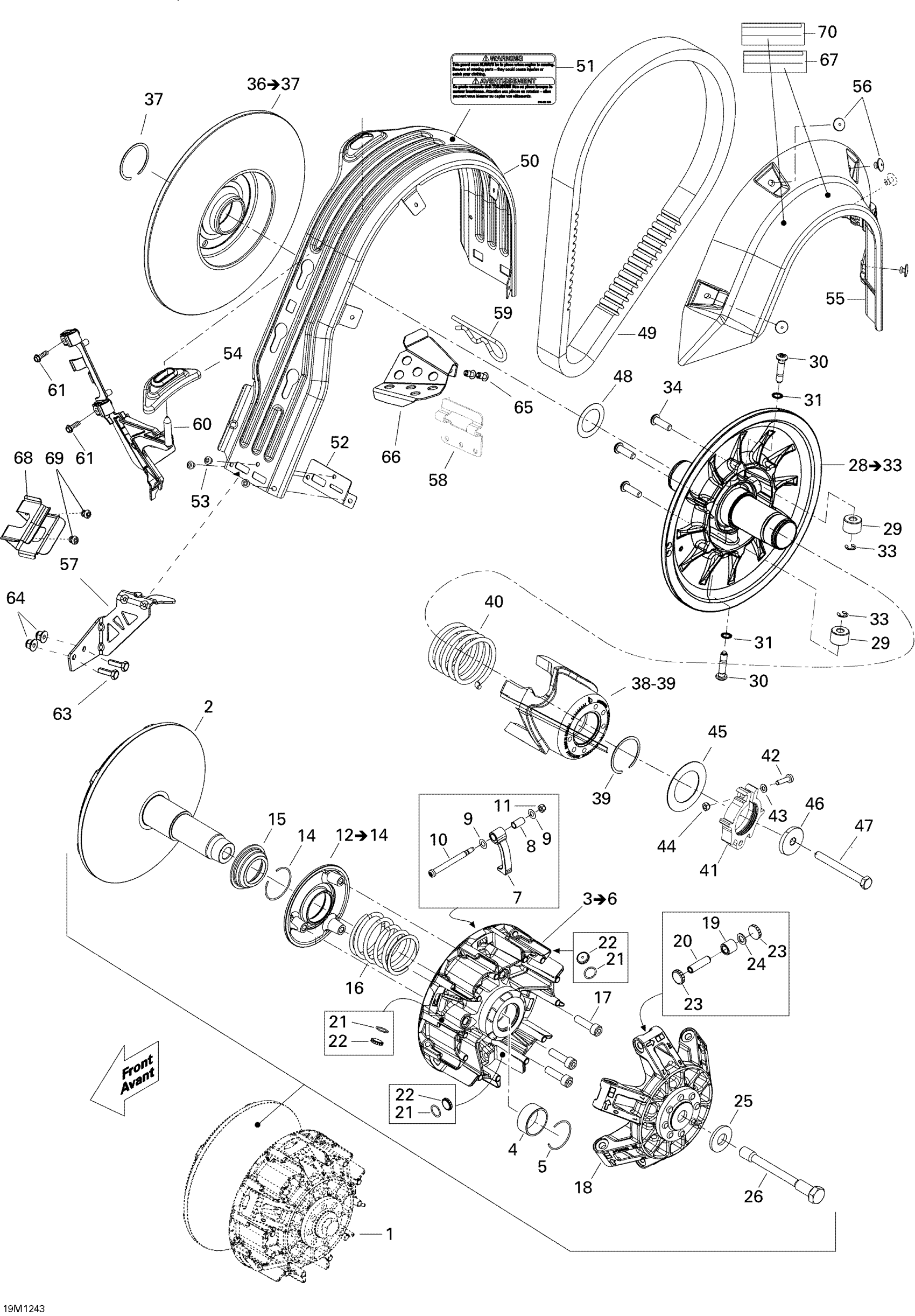

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixe Flange Ass'y

417223534

$149.99

3

Slider Flange Ass'y

417223606

$144.99

4

Not Available As Spare Parts

XXX

Unavailable

5

Circlip

293370065

$0.98

7

Ramp 716 Ass'y

417223508

$38.99

8

Not Available As Spare Parts

XXX

Unavailable

9

Thrust Washer

417223255

$2.00

10

Ramp Axle

417223694

$11.05

11

Elastic Stop Nut M5

232551414

$0.87

12

Slider Adaptor Ass'y

417223615

$79.99

14

CIRCLIP - Call your local BRP dealership

293370063

Unavailable

15

SPRING SEAT - Call your local BRP dealership

417223155

Unavailable

16

Spring Clutch

417223314

$38.99

17

SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership

250000473

Unavailable

18

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223778

Unavailable

19

Roller

417223767

$11.59

20

Roller Axle

417223257

$6.99

21

O-ring

293300145

$0.95

22

Slider Shoe

417223919

$6.83

23

Slider Shoe

417223919

$6.83

25

Spring Washer 14 mm

250200006

$6.99

26

DRIVE BOLT PULLEY - Call your local BRP dealership

417300407

Unavailable

28

Fixed Flange Ass'y

417127410

$399.99

29

Pulley Roller

417127016

$24.49

30

Pivot Stud

417127259

$21.99

31

Lock Washer 8 mm

250200009

$2.11

33

Circlip

414753500

$0.71

34

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

36

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

37

Circlip

293370049

$4.99

38

Cam Ass'y

417127413

$159.49

39

Circlip

293370049

$4.99

40

Release Spring

417127344

$45.49

41

Calibration Ass'y

415129604

$21.49

42

Socket Screw M5 X 25

205052544

$1.68

43

Flat Washer M5

234051410

$0.53

44

Elastic Stop Nut M5

232551414

$0.87

45

Washer

417127155

$8.26

46

Strength Washer

517302322

$12.63

47

Hex. Cap Screw M8 X 75

207287544

$5.18

48

Shim

504112000

$8.59

49

Drive Belt

417300585

$154.99

49

Drive Belt

414860700

$104.99

50

Belt Guard

417300382

$90.99

51

Security label, Belt Guard

516004649

Unavailable

52

Reinforcement

417300380

$7.29

53

Avex Rivet

390909200

$0.30

54

Guide

417300381

$11.99

55

Side Protector

417300356

$14.76

56

Pop Rivet 3/16"

293150103

$0.55

57

Front Belt Guard Bracket

417300374

$24.99

58

Belt Guard Bracket | Except Package SWT

417300363

$14.49

59

Hair Pin

114045200

$11.11

60

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

61

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

63

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

65

Rivet Hucklok

293150163

$2.99

66

Brake Hose Cover | Except Package SWT

518325626

$29.99

67

Warning Decal | Europe

516003919

$8.09

68

Bracket

517281905

$18.49

69

Avex Rivet

390909200

$0.30

70

Caution Decal, Belt Position

516004259

Unavailable
