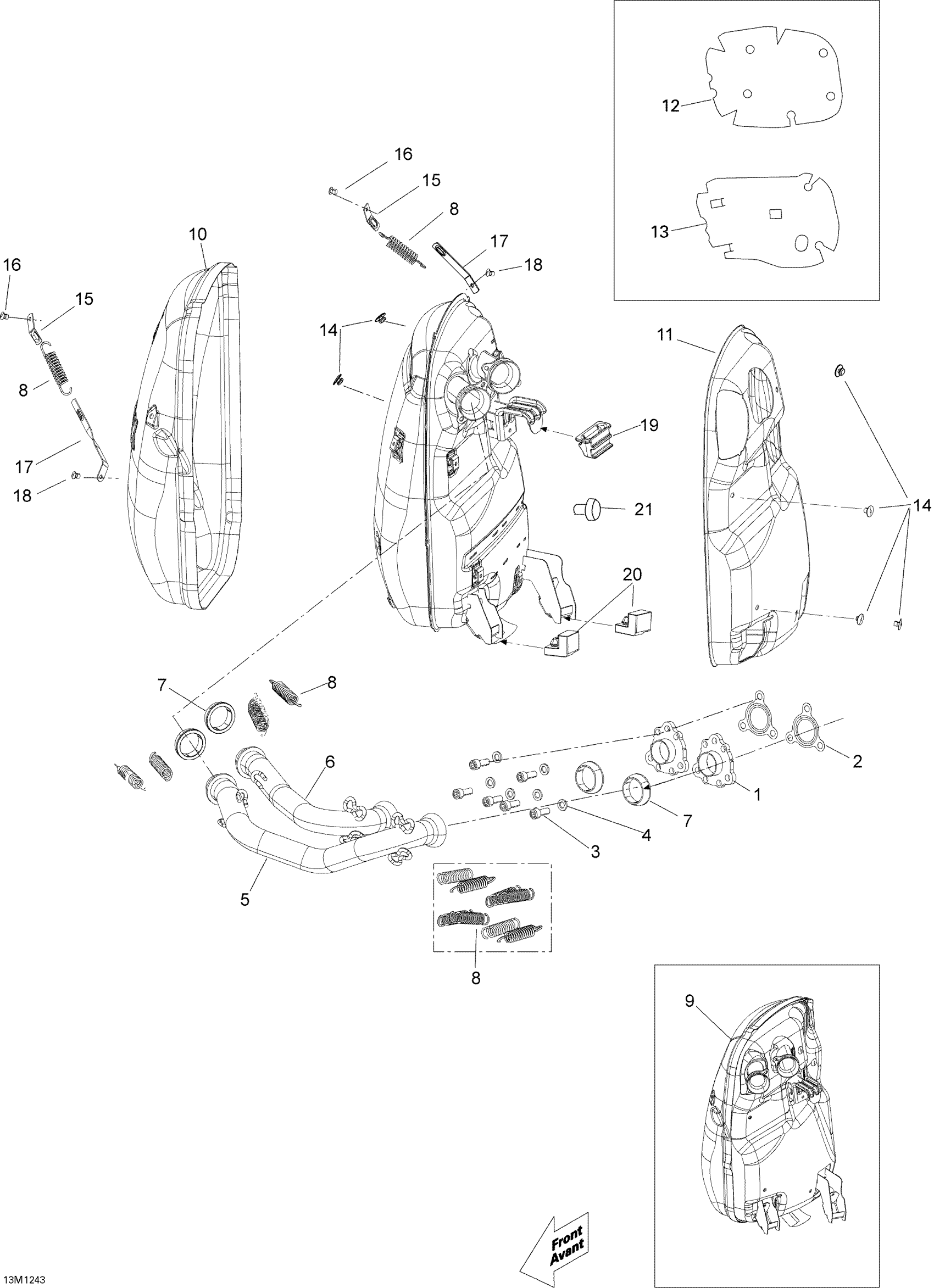

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold

514054673

$67.13

2

Gasket

514055112

$5.69

3

Socket Head Screw M8 X 22

250000414

$2.00

4

Washer

514053837

$4.15

5

Welded Tube

514054733

$91.76

6

Welded Tube

514054734

Unavailable

7

Exhaust Gasket

514054807

$14.90

8

Spring

514054226

$6.01

9

Muffler Ass'y | Includes 400 to 400h

514055370

$698.48

10

RH Heat Shield

514055325

$52.96

11

LH Heat Shield

514054645

$52.96

12

INSULATING WOOL - Call your local BRP dealership

514054256

Unavailable

13

INSULATING WOOL - Call your local BRP dealership

514054257

Unavailable

14

Pop Rivet 3/16”

390910000

$0.55

15

Spring Bracket

514054522

$6.09

16

Avex Rivet

390909200

$0.28

17

Spring Bracket

514055030

$10.24

18

Avex Rivet

390909100

$0.28

19

Upper Stopper

514054737

$11.24

20

Lower Stopper

514054529

$17.13

21

Rubber Bumper

514053654

$47.73
