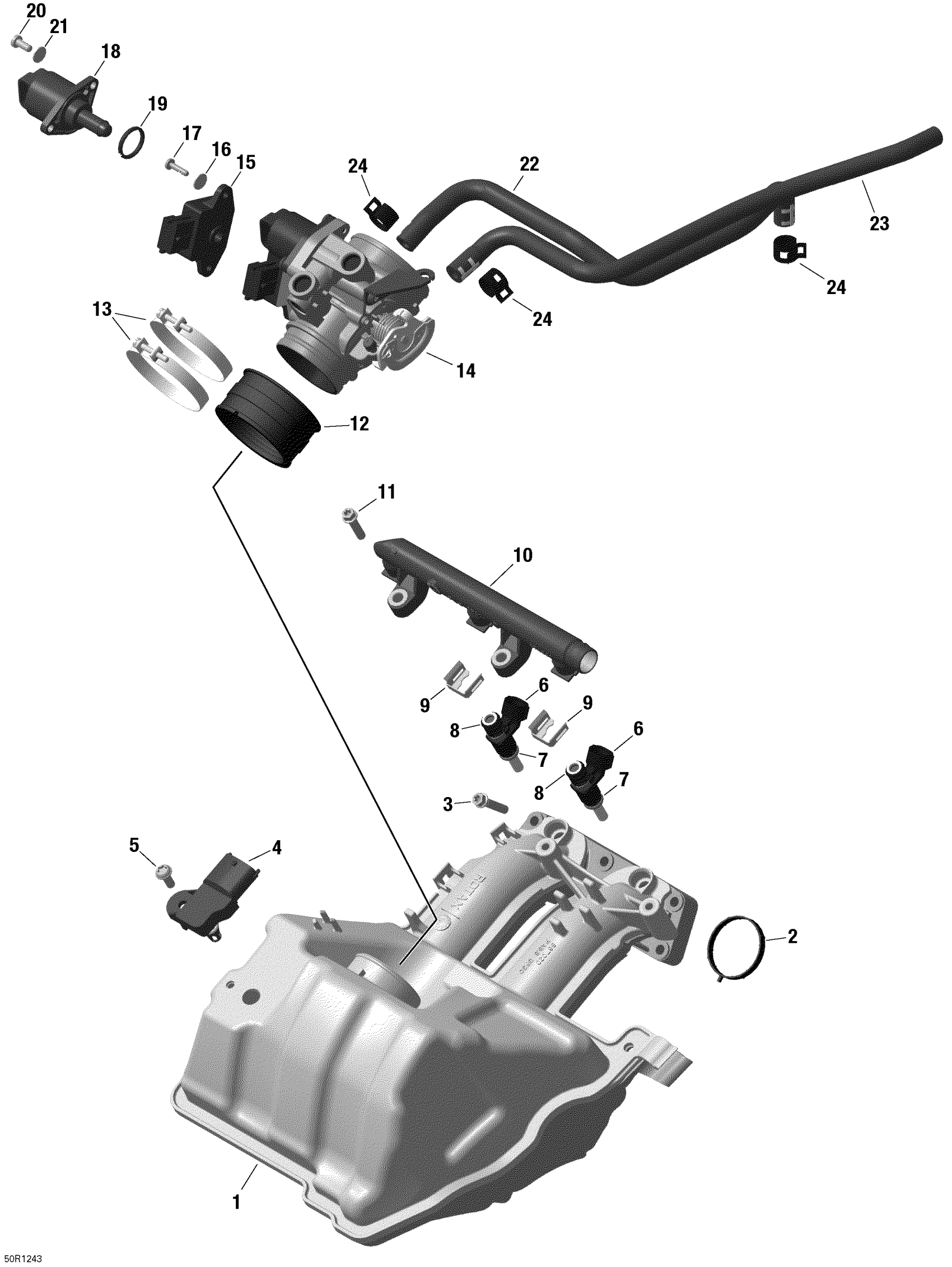

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 01- Air Inlet Manifold And Throttle Body Diagram

Description

Price

1-2

Air Intake Manifold Ass'y | Includes 1 To 2

420867020

$219.99

Gasket

420431660

$11.60

Torx Flange Screw M6 X 30

420440647

$2.00

Pressure And Temperature Sensor

707000995

$88.99

Torx Flange Screw M6 X 16

420641588

$2.11

6-8

Injection Valve Ass'y | Includes 18 to 20

420874847

$137.99

O-Ring

420431890

$7.49

O-Ring

420631220

$14.28

Injector Clip

420853030

$3.09

Fuel Rail

420874961

$16.99

Torx Flange Screw M6 X 25

420440234

$3.06

Intake Adaptor

420460495

$10.33

Clamp

420251480

$14.28

14-21

Throttle Body Ass'y | Includes 14 To 21

420296879

$370.99

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Idle Air Control Valve

420665941

$179.99

O-Ring

420631780

$4.44

Binding Head Screw M5 X 16

420440911

$14.28

Snap Ring

420845710

$4.12

MOLDED HOSE - Call your local BRP dealership

420460910

Unavailable

MOLDED HOSE - Call your local BRP dealership

420460915

Unavailable

Clamp

420853511

$7.51
