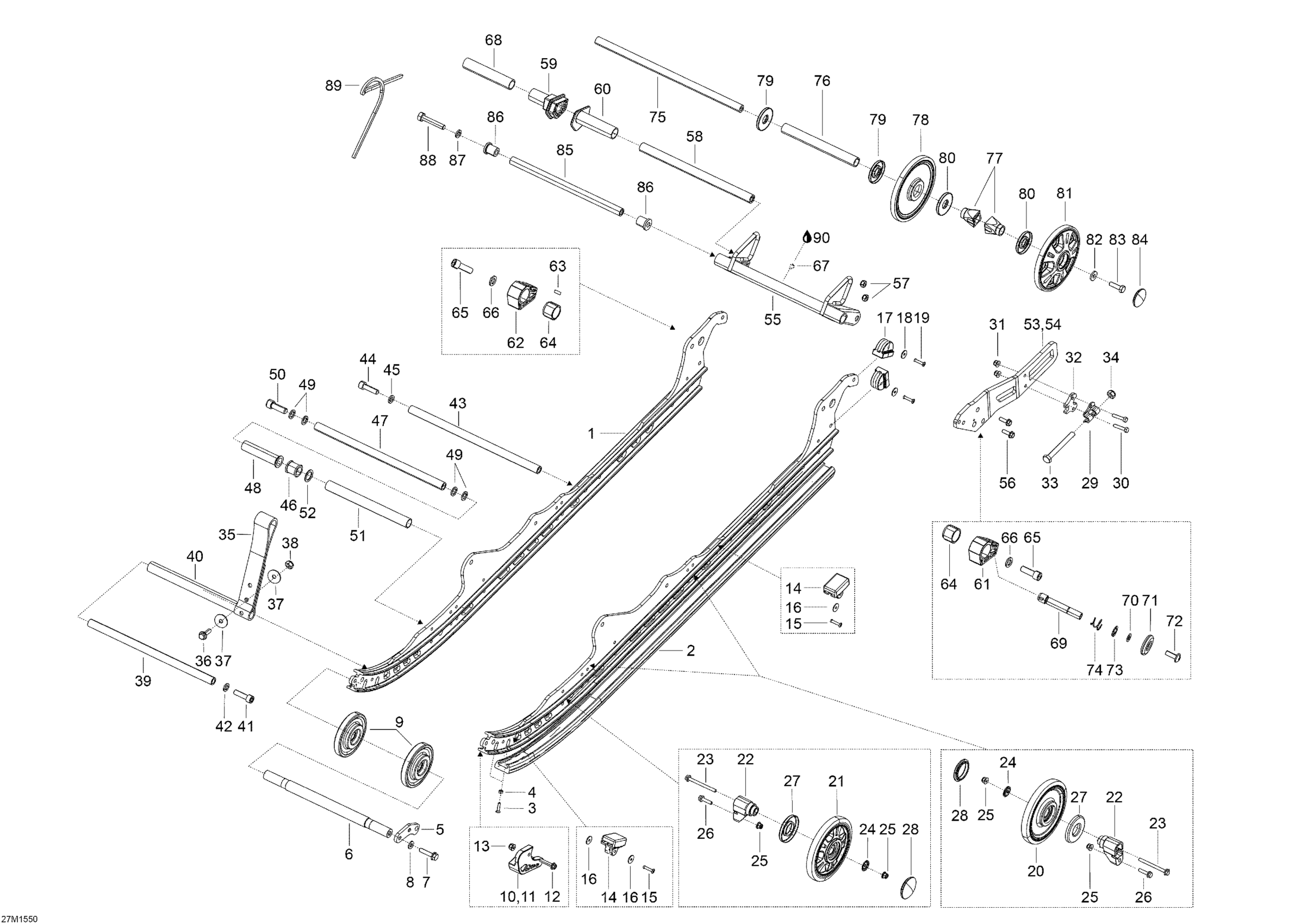

Ski-Doo Skandic WT 600 ACE, 2015 08- Rear Suspension A _27M1550 Diagram

#

Description
Price

1

Runner | Model-LE

503193397

$244.99

2

Black Slider, 154"

503192618

$34.99

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561434

$1.99

5

Plate

503192612

$14.49

6

Axle

503192643

$159.99

7

Hex. Flange Screw M8 X 35

250000986

$2.11

8

Washer

503189157

$3.28

9

Black, Wheel Ass'y, 100 mm

503192611

$33.99

10

RH Protector

503192610

$27.49

11

LH Protector

503192609

$27.49

12

Hex. Flange Screw M8 X 40

207684044

$1.48

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Rubber Stopper

503190576

$12.99

15

Pop Rivet 3/16"

293150142

$2.29

16

Washer

503191273

$1.35

17

Rubber Stopper

503191291

$19.99

18

Pop Rivet 3/16"

293150142

$2.29

19

Washer

503191273

$1.35

20

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

21

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

22

Casted Support

503193894

$16.49

23

Hex. Flange Screw M6 X 70

207667056

$4.44

24

Wheel Cup M6

503191820

$4.99

25

Hex. Flange Elastic Nut M6

233261466

$2.00

26

Hex. Flange Screw M6 X 25

207662556

$4.44

27

Labyrinth Seal

503190434

$6.09

28

Black, Wheel Cap

503192771

$2.39

29

Tensioner

503192583

$8.29

30

Hex. Cap Screw M6 X 30

207063054

$6.39

31

Hex. Flange Elastic Nut M6

233261466

$2.00

32

Spacer

503193250

$16.49

33

Hex Screw M10 x 100

230100054

$6.45

34

Elastic Locking Nut M10

233601466

$2.11

35

Stopper Strap

503192360

$20.99

36

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

37

Flat Washer

224081301

$0.88

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Axle Strap

503192623

$59.99

40

Spacer

503192679

$11.49

41

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

42

Washer

503189564

$0.74

43

Axle Strap

503191418

$54.99

44

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

45

Washer

503189564

$0.74

46

Bushing

503189271

$13.99

47

Shaft

503193967

$139.99

48

Center Bushing

503191259

$11.49

49

Washer

503189276

$3.28

50

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

51

Spacer

503191421

$45.99

52

Washer

503189273

$3.28

53

Rail Pivot RH

503192435

$88.99

54

Rail Pivot LH

503192434

$88.99

55

Welded Pivot | Includes 100c to 100c3

503191414

$94.99

56

Hex. Flange Screw M8 X 25

207682534

$2.11

57

Hex. Elastic Stop Nut M8

232581414

$0.56

58

Cam Axle

503191711

$28.99

59

RH Spring Cam

503191190

$15.29

60

LH Spring Cam

503191668

$12.58

61

LH Block

503192426

$16.49

62

RH Block

503192427

$16.49

63

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

64

Block Guide

503189488

$39.99

65

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

66

Washer | 7415/7416. 7417/7418.

503189148

$2.85

67

Grease Fitting

408200700

$3.49

68

Spacer

503191713

$12.99

69

Rode

503192437

$6.19

70

Flat Washer M5

234051410

$0.53

71

Handle

503192438

$4.99

72

Torx Screw M5 X 14

250000742

$1.47

73

Circlip

293370068

$0.98

74

Compression Spring

503192436

$38.99

75

Rear Axle

503191408

$65.99

76

Spacer

503196316

$28.99

77

Rear Wheel Spacer

503190428

$8.14

78

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$51.99

79

Labyrinth Seal

503190682

$6.19

80

Labyrinth Seal

503190434

$6.09

81

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$51.99

82

Washer

503190439

$5.93

83

Hex. Screw With Nylon

250000019

$1.69

84

Black, Wheel Cap

503192771

$2.39

85

Lower Shaft

503191390

$28.99

86

Bushing

503189324

$14.15

87

Washer

503192496

$0.77

88

Hex. Screw S.Grip M10 X 55

250000605

$8.11

89

Spring

503194624

$30.49

90

Not Available As Spare Part - Friction Washer

Unavailable
